900.1-30-41-B GN 900.1 Fastening units

900.1-30-41-B

GN 900.1 Fastening units

voor instelbare sleden GN 900
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 900.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 900.1-30-41-B
b Size of
the slide
30
l1
41
d1
2.7
d2
M 2.5
h
4.2
l2
35.4
l3
41
l4
35.4
l5
6.5
8
900.1-30-41-B drawing

Types

  • Type A: with bore for cap screw
  • Type B: with threaded bore d2

Aluminium

anodized, natural colour

Socket head cap screw DIN 912

Stainless Steel

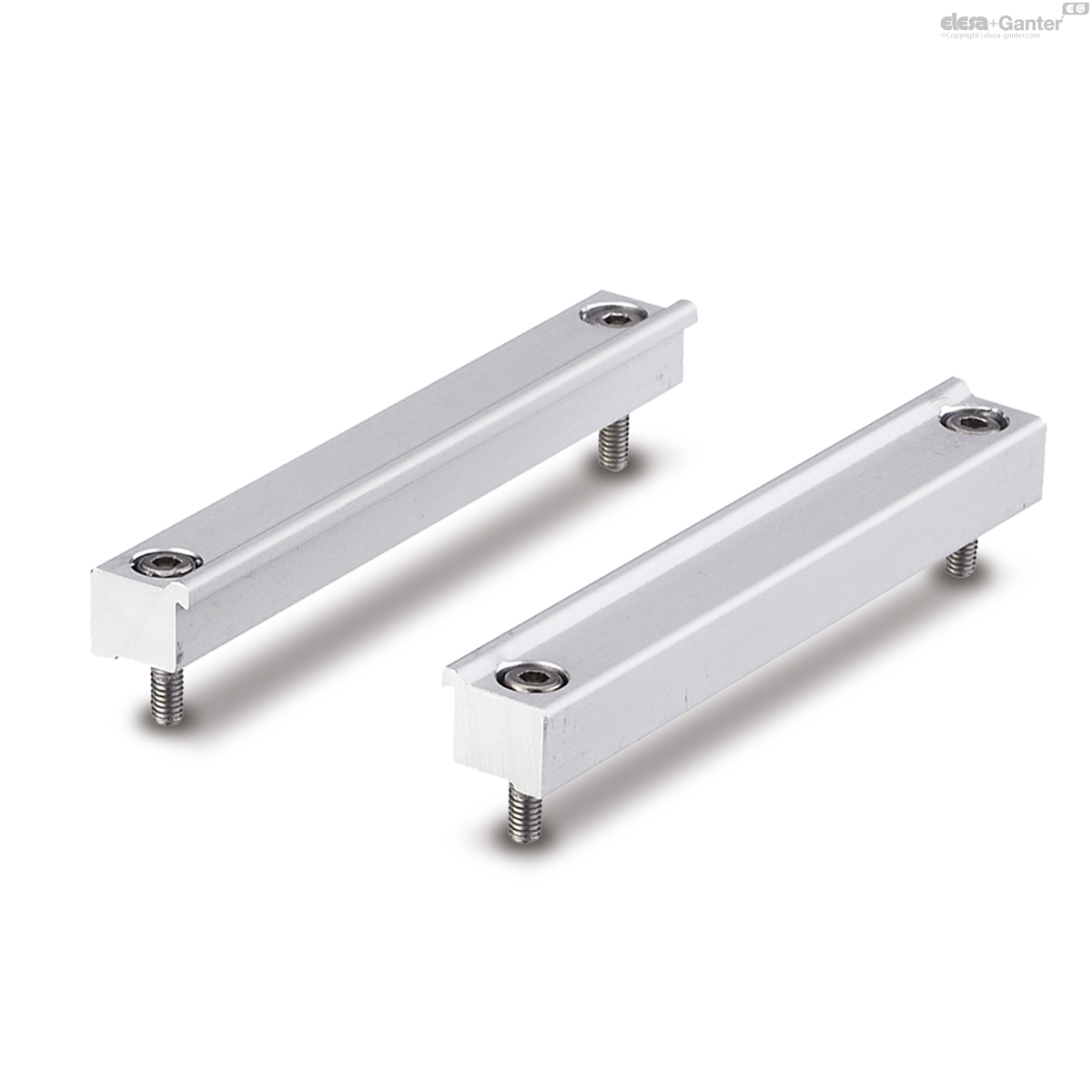

Fastening units GN 900.1 are fitted to the base of the adjustable slide units GN 900 from the operator’s side.

The mounting is made on the outside ledge of the slide so that the inner slide can still be moved.

A fastening unit GN 900.1 consists of two mounting rails. Four Stainless Steel-cap screws are inclueded.
