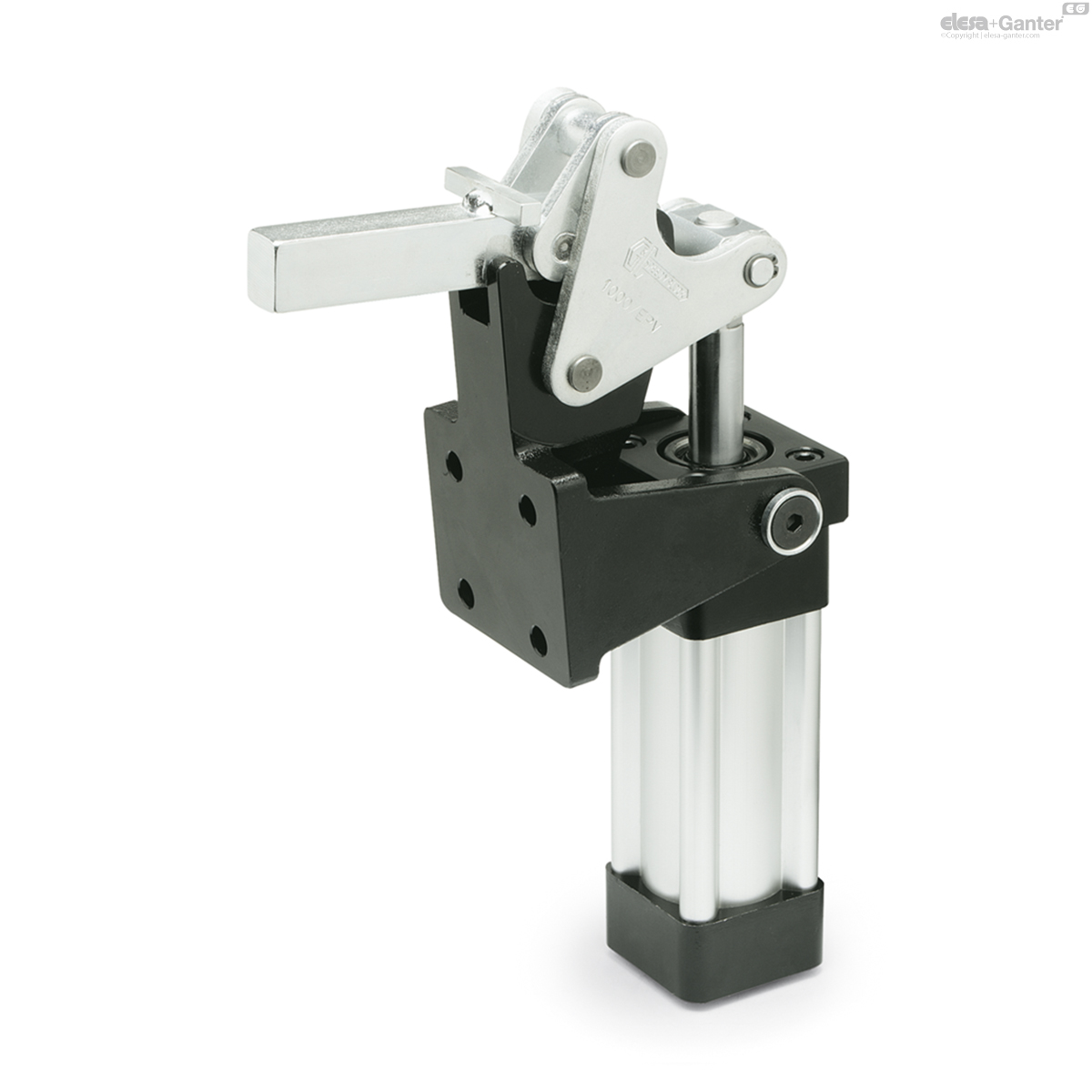

863-2000-EPV-M GN 863 Snelspanners

863-2000-EPV-M

GN 863 Snelspanners

Staal, Pneumatisch, Heavy Duty
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 863

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 863-2000-EPV-M
FH in N
20000
Size
2000
FS in N
20000
FH in N
Clamping force
at 4 bar ≈
5600
b1 ≈
112
b2
100
b3
90
b4
20
d1
12.5
d2
G 3/8
Inside Ø
connection tube
10
h1 ≈
425
h2
161
h3
35
l1 ≈
246.5
l2 ≈
100
m1
54
m2
12.5
m3
58
m4
45
r
168.5
s
14
8200
863-2000-EPV-M drawing
video

Type

  • Type EPV: Solid clamping arm, with clasp for welding

Coding

  • Coding M: Magnetic piston

Body

Cast steel

Black lacquered

Other parts

Steel St 60

Zinc plated, blue passivated

Bearing pins

Case-hardened

Double-action air cylinder

Max. pressure 6 bar

All moving parts

Lubricated with special grease

Solid moulded plastic handle sleeve

Red, oil resistant

Toggle clamps GN 863 have been constructed in such a way as to make them easy to unmount. The bearing pins are axially fixed with circlips. This allows the clamping arm to be modified once it is dismantled, to suit any particular application.

To ensure an extended life of the mechanical parts as well as the air cylinders, the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.

Toggle clamps GN 863 have a magnetic piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
