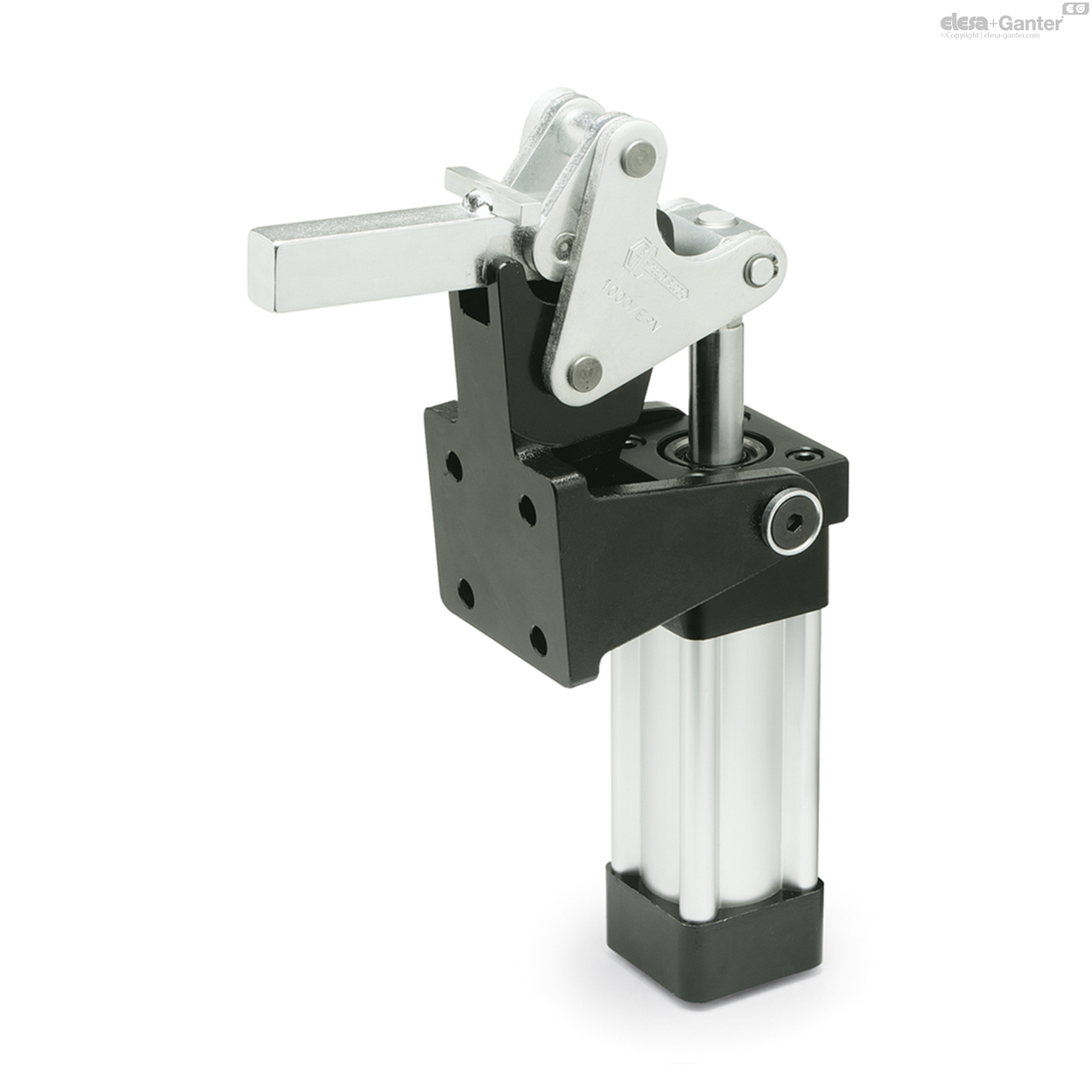

863-1000-EPV-M GN 863 Snelspanners

863-1000-EPV-M

GN 863 Snelspanners

Staal, Pneumatisch, Heavy Duty
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 863

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 863-1000-EPV-M
FH in N
10000
Size
1000
FS in N
10000
FH in N
Clamping force
at 4 bar ≈
3250
b1 ≈
102
b2
90
b3
80
b4
20
d1
10.5
d2
G 1/4
Inside Ø
connection tube
8
h1 ≈
355
h2
132.5
h3
25
l1 ≈
217.5
l2 ≈
80
m1
50
m2
12.5
m3
50
r
144
s
13
5800

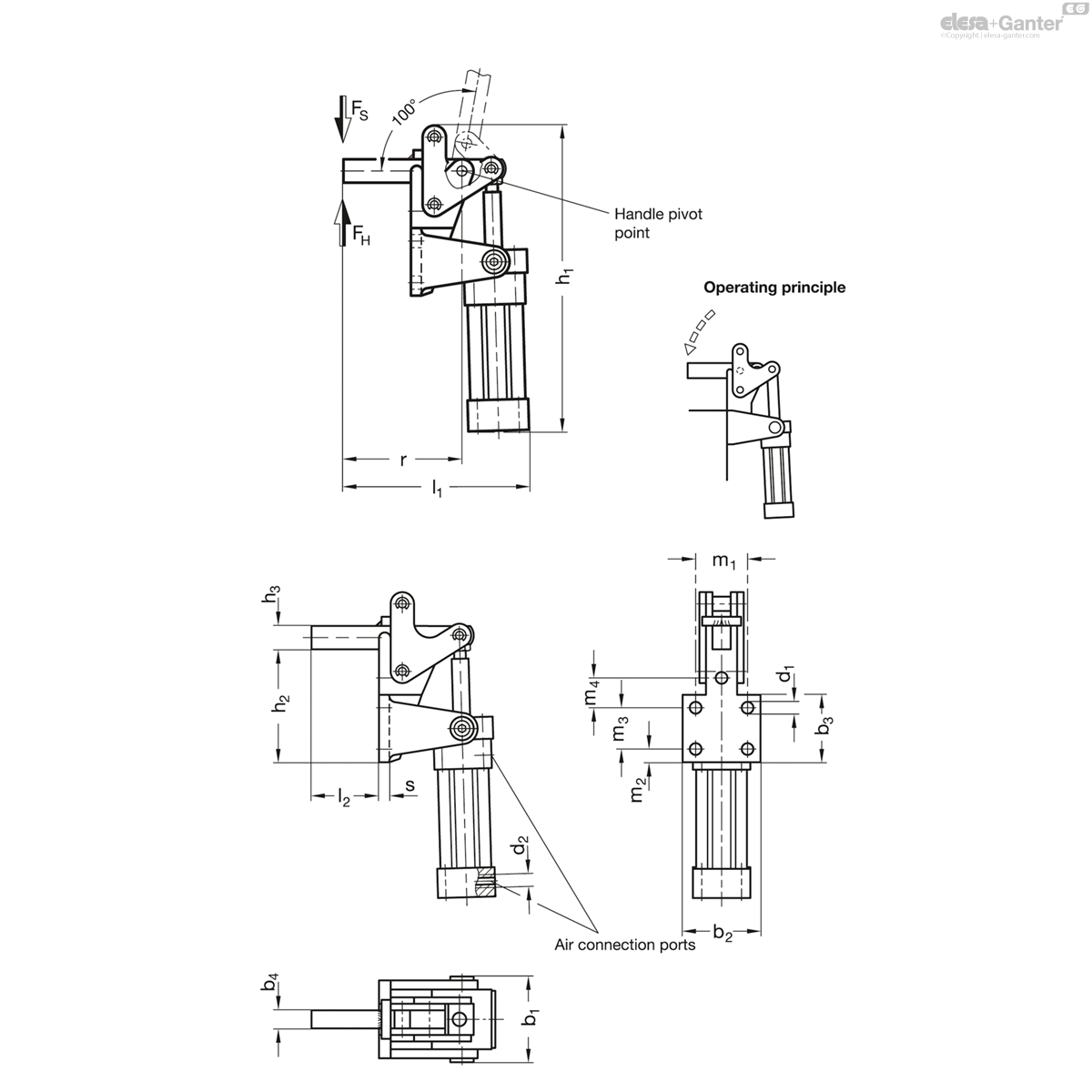

863-1000-EPV-M drawing
video

Type

  • Type EPV: Solid clamping arm, with clasp for welding

Coding

  • Coding M: Magnetic piston

Body

Cast steel

Black lacquered

Other parts

Steel St 60

Zinc plated, blue passivated

Bearing pins

Case-hardened

Double-action air cylinder

Max. pressure 6 bar

All moving parts

Lubricated with special grease

Solid moulded plastic handle sleeve

Red, oil resistant

Toggle clamps GN 863 have been constructed in such a way as to make them easy to unmount. The bearing pins are axially fixed with circlips. This allows the clamping arm to be modified once it is dismantled, to suit any particular application.

To ensure an extended life of the mechanical parts as well as the air cylinders, the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.

Toggle clamps GN 863 have a magnetic piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
