750-40-K10-N

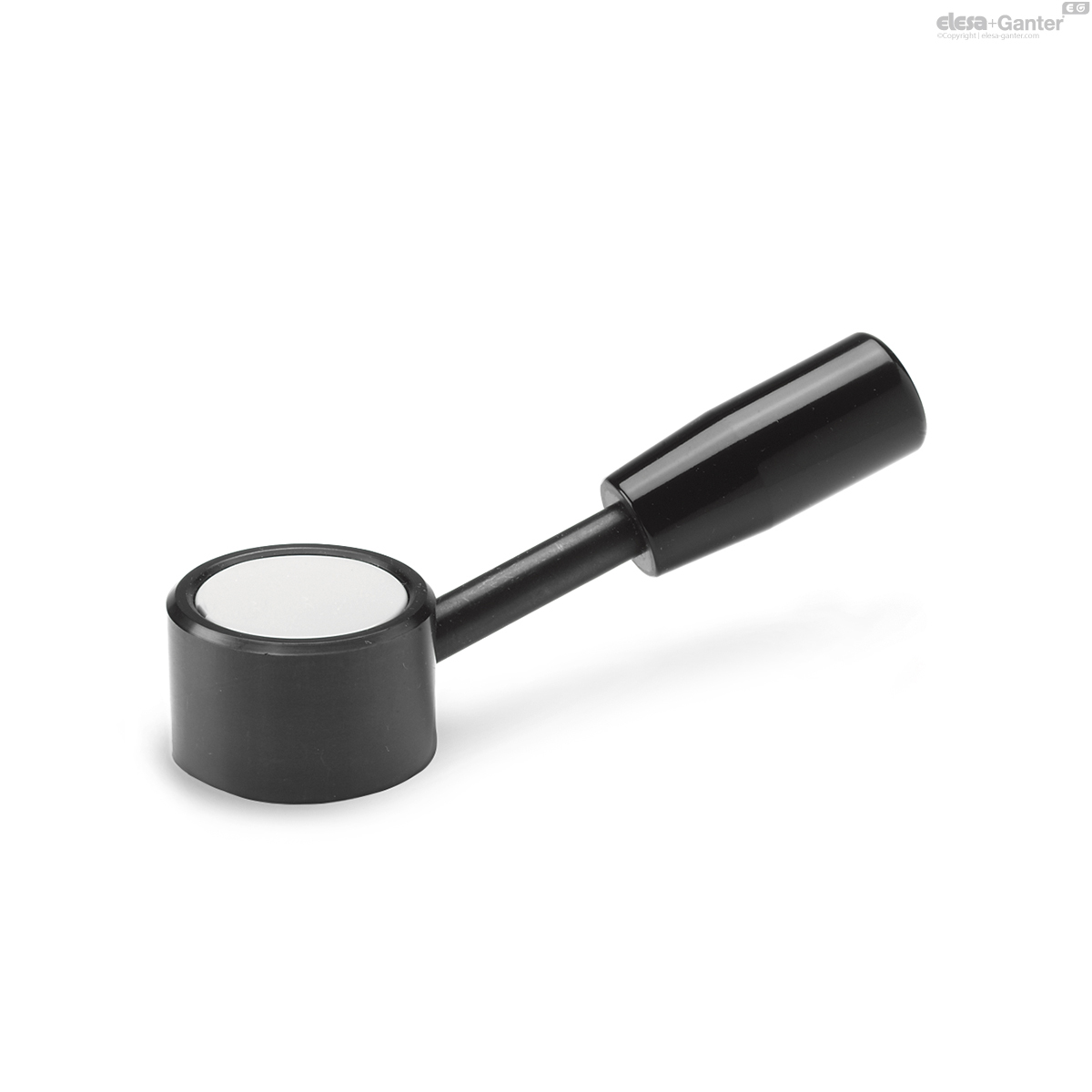

GN 750-N Effen omslag
Lt: 1-2 weken
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 750-40-K10-N
- d1
- 40
- d2 Bore H7 Square H11
- 10
- d3
- 32
- d4
- 30
- d5
- 21
- d6
- 9
- h1
- 25
- h2
- 19
- h3
- 4
- h4 ≈
- 54
- Length l
- 106
- 236
Bore code
Bore code
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
- Version V: With square DIN 79
Types
Types
- Type M: Cover with indicator point
- Type N: Cover plain
Hub / Shaft
Hub / Shaft
Steel
Blackened
Cover
Cover
Plastic, polyamid (PA)
Light gray
Cylindrical knob I.280
Cylindrical knob I.280
Plastic, phenolic resin (PF)
Black, shiny finish
The cover of the control hubs GN 750 conceals fastening elements (see installation examples) as well as protruding and receding shafts. It is also suitable for printing characters and symbols.
During installation, the cover is pressed in by hand. For removal, it can be lifted off at the recess using a screwdriver.
- Control lever versions of the assembly examples
Control levers GN 750 with spring plunger GN 614 , mounted with a cross pin. The arrangement of the spring plunger facilitates simple installation; if desired the detent cone can be drilled out from the shifting hub before the plunger is fitted. The recessed shaft and the bore for the spring plunger are hidden by the cover.
Control levers GN 750 with hub keyway / parallel key, mounted axially by countersunk washer GN 184 , with an annular groove for attaching pins to limit the angle of rotation.
