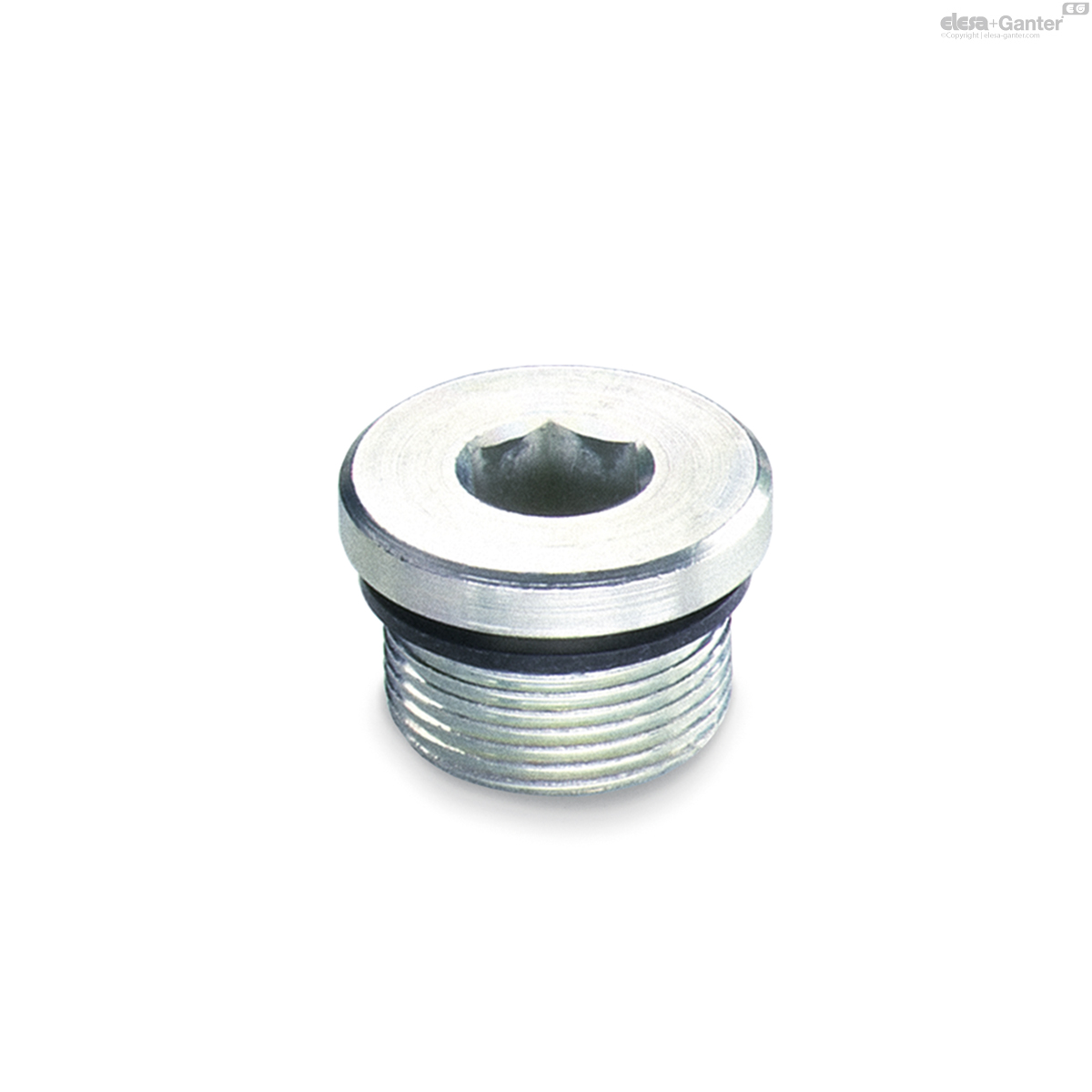

749-M22X1,5-A GN 749 Schroefdraaddoppen

749-M22X1,5-A

GN 749 Schroefdraaddoppen

Staal, verzinkt
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g18030__.png

Lt: 1-2 weken Alle maten en varianten van GN 749

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 749-M22x1,5-A
d1
M 22 x 1.5
d2 h14
27
d3
24.3
l1
14
l2
5
s
10
Max. permissible
operating pressure
in PB
400
Recommended
tourque in Nm
80
49
749-M22X1,5-A drawing

Types

  • Type A: Sealing ring rubber NBR (Perbunan)
  • Type B: Sealing ring rubber FPM (Viton®)

Steel

  • Tensile strength class 5.8
  • ultrasonically and tensile tested
  • zinc plated, nano-passivated (silver / yellowish)

Type A

temperature resistant up to 100 °C

Sealing ring rubber NBR (Perbunan)

Type B

temperature resistant up tp 180 °C

Sealing ring rubber FPM (Viton®)

Identification by not black finish of the seal

The dimensions of the threaded plugs GN 749 comply with DIN 908 -, but deviating from the latter is the elastic sealing ring (rubber). This sealling ring is retained in a radial undercut in the mating face which prevents it from dropping out and in particular it does not extrude when the plug is tightened.

The details relating to the permissible operating pressure are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
