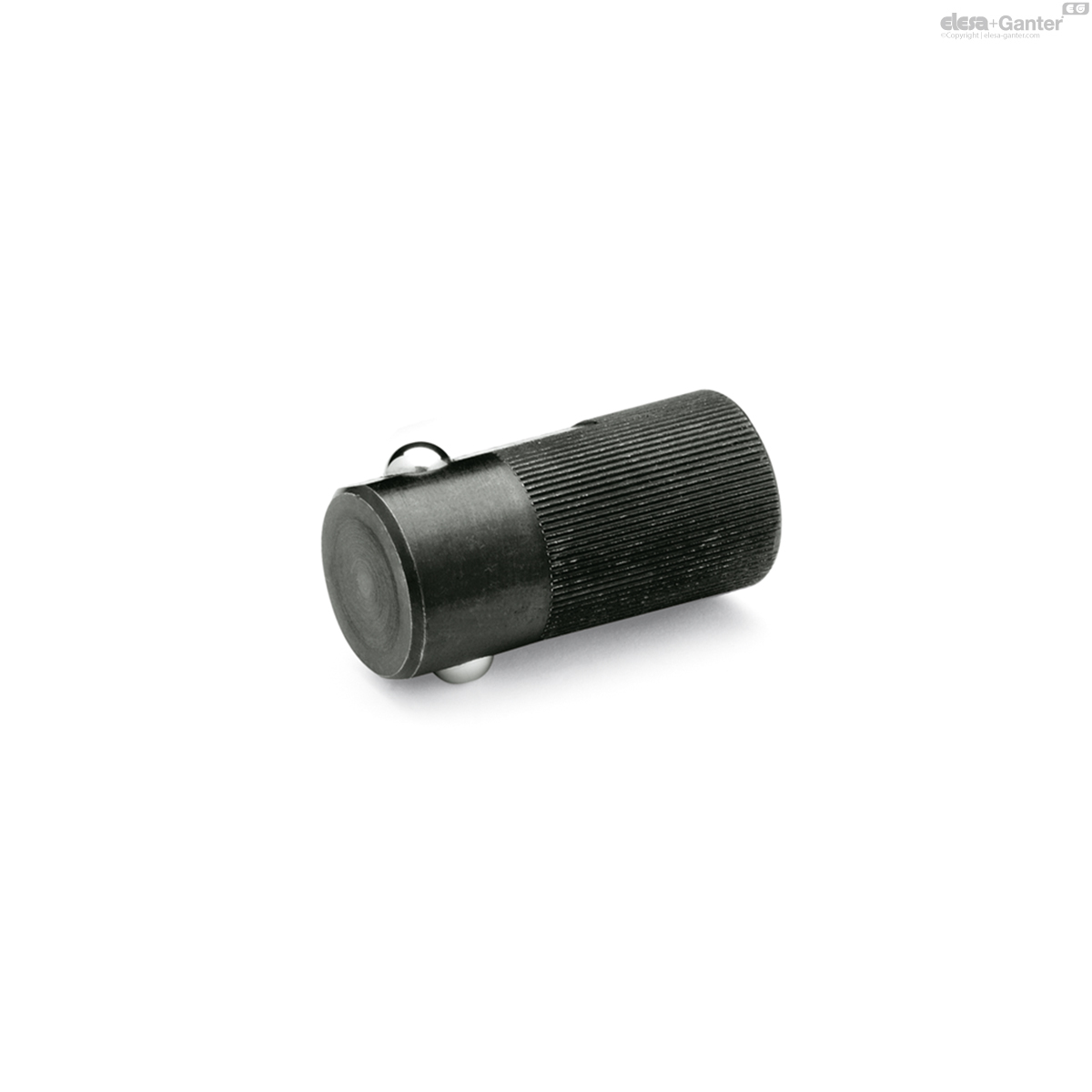

716-10-EKU GN 716 Zij-aandrukstukken

716-10-EKU

GN 716 Zij-aandrukstukken

Aandruktype
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 716

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 716-10-EKU
d1
10
d2
4
b
4
l1
30
l2
4.2
l3
7
s
1
Spring load
in N ≈
initial
4.5
Spring load
in N ≈
end
9
Location bore H8
10
17

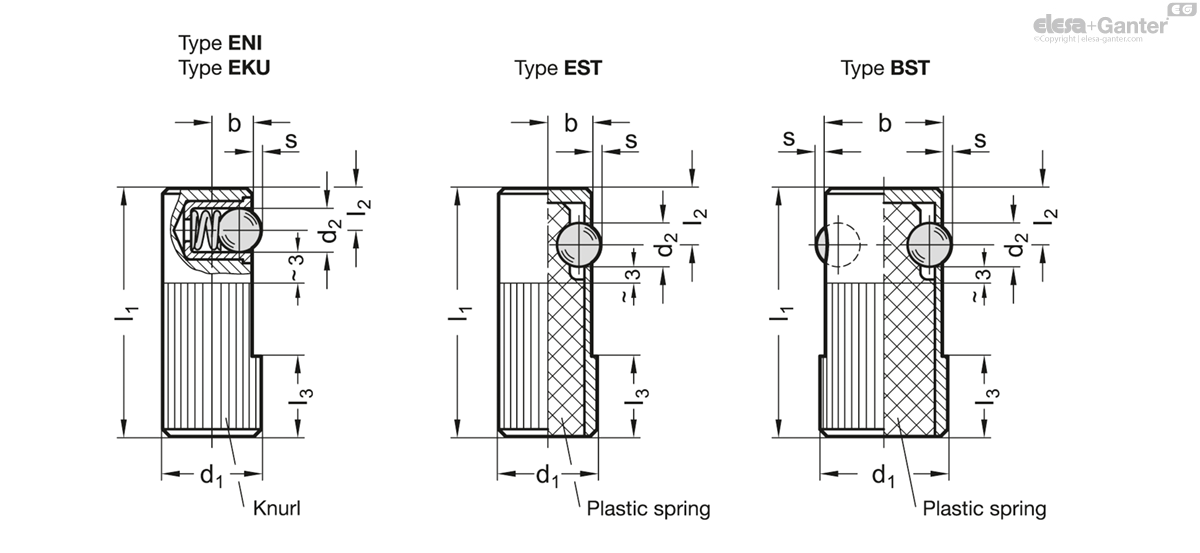

716-10-EKU drawing

Types

  • Type ENI: one-sided, ball Stainless Steel
  • Type EKU: one-sided, ball Plastic
  • Type EST: one-sided, ball Steel
  • Type BST: both-sided, ball Steel

Housing Steel, blackened

Sleeve (for Ball)

  • Type ENI / EKU: Plastic
  • Type EST / BST: Steel, blackened

Ball

  • Type ENI: Stainless Steel
  • Type EKU: Plastic
  • Type EST / BST: Steel

Spring

  • Type ENI / EKU: Stainless Steel
  • Type EST / BST: elastic plastic

temperature resistant up to 80 °C

Side thrust pins GN 716 are designed for holding, positioning and locating a workpiece.

They have to pressed into the housing by a least the dimensions l3, so as to ensure a positive hold.
