653-M5-30 DIN 653 Staal

653-M5-30

DIN 653 Staal

Staal / roestvrij staal, platte uitvoering
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 653

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 653-M5-30
d1
M 5
l
30
d2
20
k
4
14
653-M5-30 drawing

Version in Steel

  • Property class 5
  • Visible face fine turned
  • Blackened
  • Zinc plated, blue passivated ZB

Version in Stainless Steel

  • Stainless steel AISI 303 NI
  • Matte shot-blasted

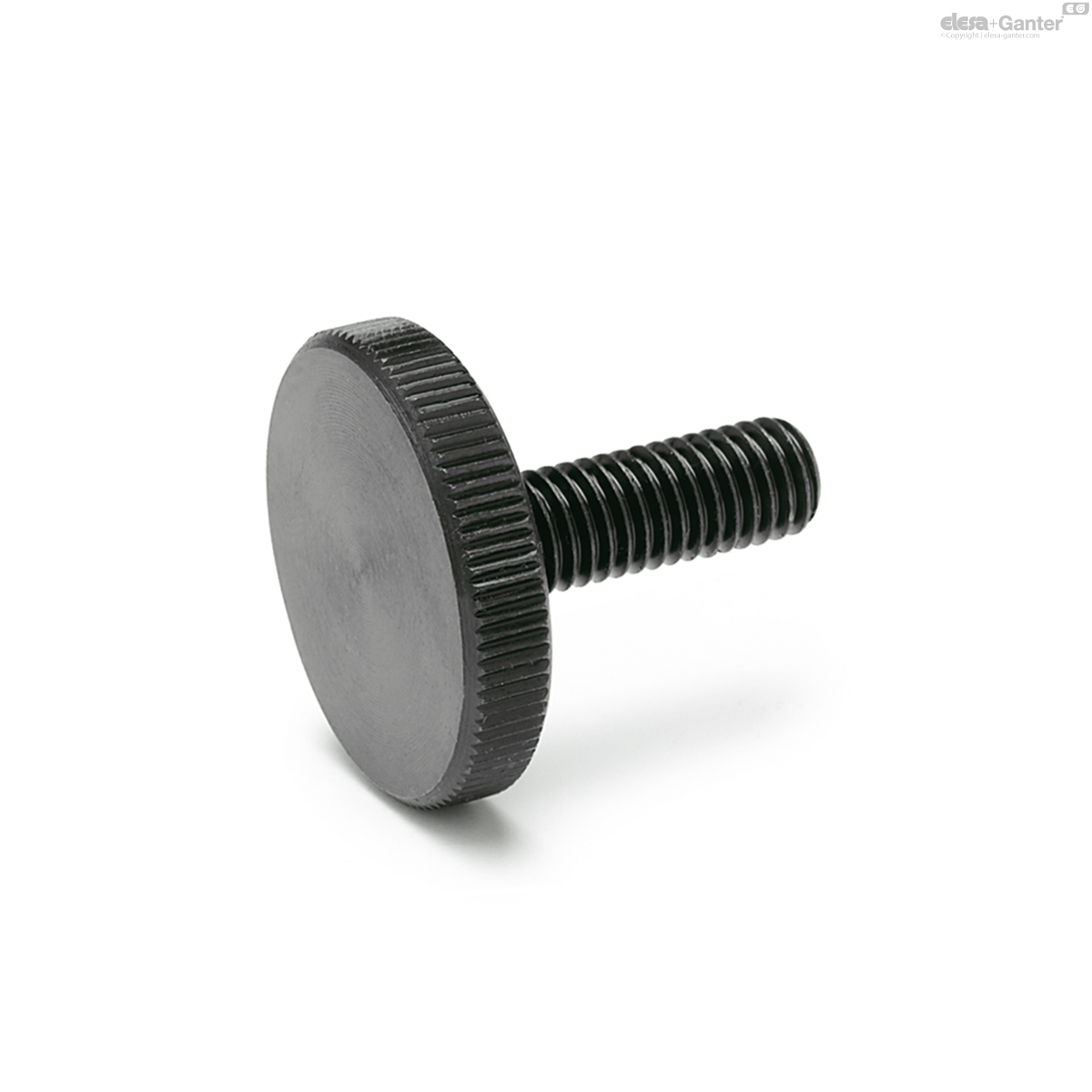

Knurled screws DIN 653 are turned entirely from a single piece. The thread of the screw generally extends up to the head and ends in a runout without recess as per the DIN designation A.

They are suitable for universal use and can be quickly tightened and loosened without tools.

  • Version in stainless steel (A4 quality)
