6336.3-50-M10 GN 6336.3-ST Staal

6336.3-50-M10

GN 6336.3-ST Staal

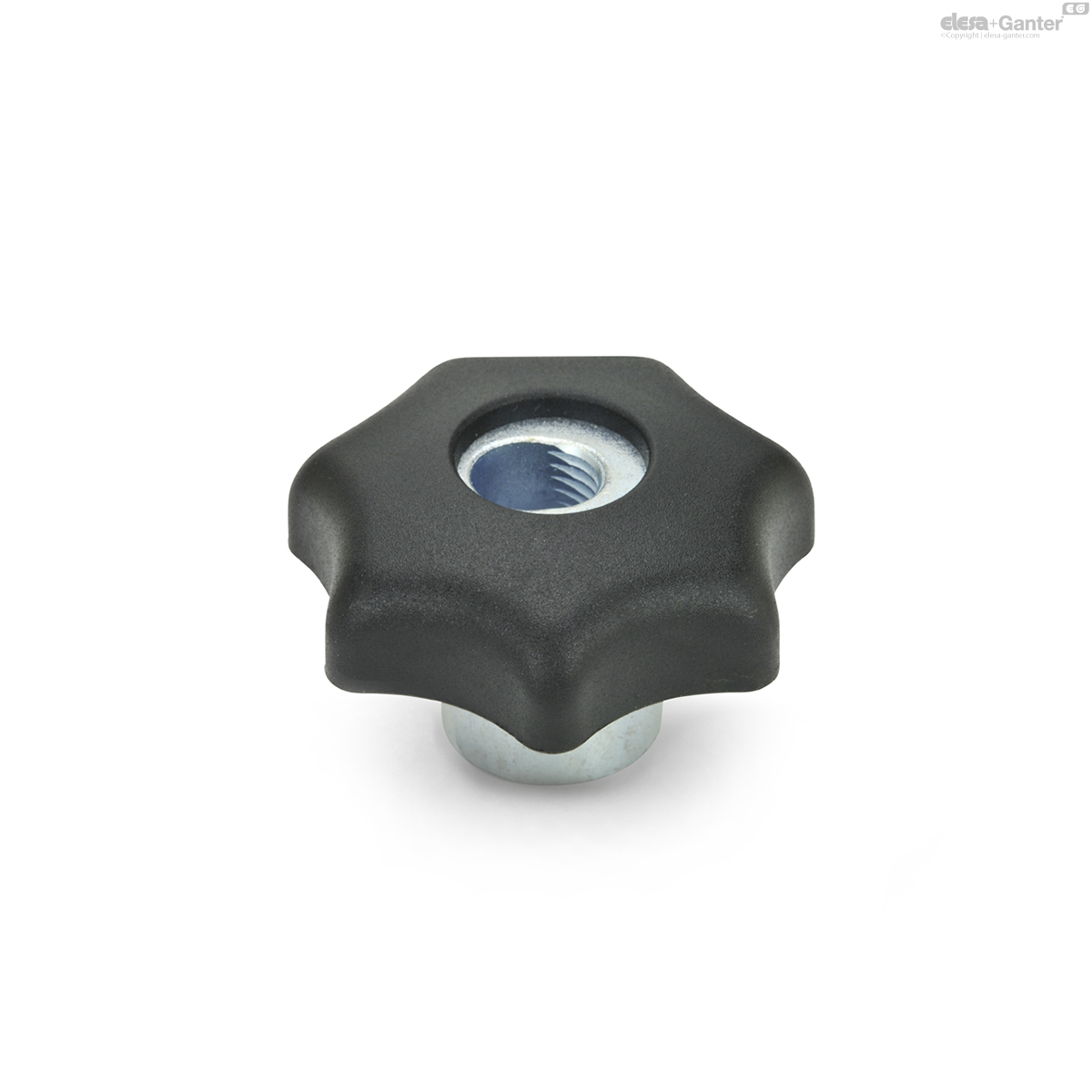

Snelspanstergrepen
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 6336.3

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 6336.3-50-M10
d1
50
d2
M 10
d3
20
d4
10.5
h1
32
h2 ≈
17
h3 min.
29
61

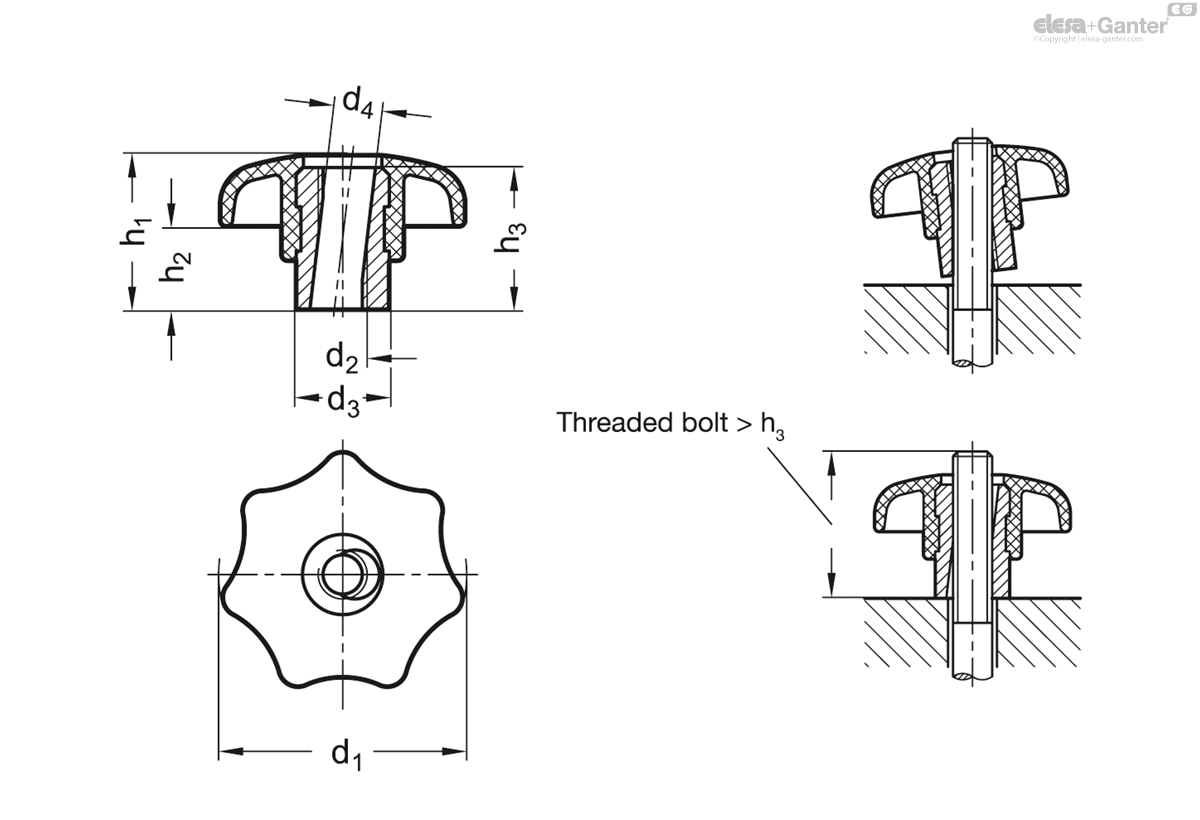

6336.3-50-M10 drawing

Plastic

Technopolymer (Polyamide PA)

  • shock-resistant
  • black, matt finish

Bushing

Steel zinc plated, blue passivated

Stainless Steel AISI 303 NI

Quick release star knobs GN 6336.3 are used in such applications where the knob has to be completely removed after the releasing operation and refitted rapidly for re-clamping.

The knob is tilted over the threaded spindle. When in position, the knob is brought into a straight position for meshing of the two threads on nut and spindle. The knob will then have to be turned only by fraction of a rotation to achieve clamping.

Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
