6306-M20-90-D
DIN 6306-ST Staal
Lt: 1-2 weken Alle maten en varianten van DIN 6306
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

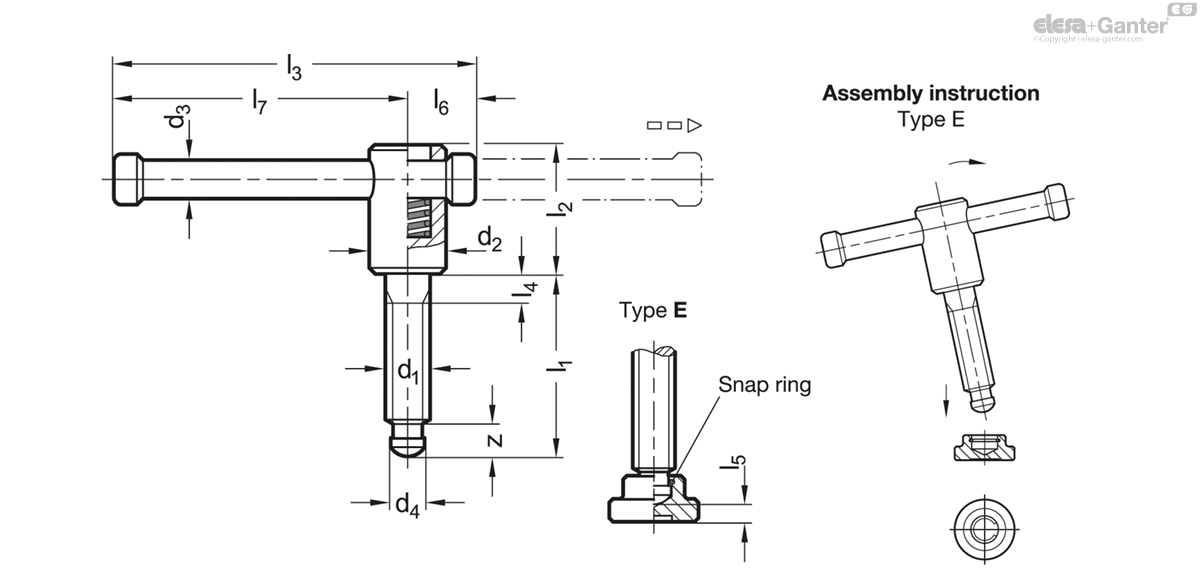

Technische gegevens
- Code
- DIN 6306-M20-90-D
- d1
- M 20
- l1
- 90
- d2
- 30
- d3
- 16
- d4 h11
- 15.5
- l2
- 45
- l3
- 140
- l4
- 10
- l5 ≈
- 5.6
- l6
- 28
- l7
- 112
- z ≈
- 12.4
- 572
Types
Types
- Type D: Without thrust pad
- Type E: With thrust pad DIN 6311 (only for steel)
Tommy screw
Tommy screw
- Steel
- Property class 5.8
- Blackened
- Thrust point hardened
- Stainless steel AISI 304 NI
Bar end caps
Bar end caps
Plastic, Polyethylene (PE)
Gray
Thrust pad for type E
Thrust pad for type E
Steel
- Case-hardened
- Blackened
- Snap ring
- Spring steel wire
Pressure spring
Pressure spring
Stainless steel AISI 301
Tommy screws DIN 6306 are used for clamping and pressing. Combining them with thrust pads or base plates increases the contact surface and allows for angle compensation.
The sliding bar is protected against loss by the end caps and held in any position by the pressure spring.
Installation of the thrust pad (type E) is made easier if the pivot is positioned at an angle against the closed side of the snap ring and then pressed in.
