513-M20X1,5-H-1 GN 513 Spring elements

513-M20X1,5-H-1

GN 513 Spring elements

  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 513

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 513-M20x1,5-H-1
d1
M 20 x 1.5
d2
14.5
d3
M 6
d4
11.4
e
10
l1
47
l2
33
l3
4
l4
10
r
7.2
s1
9
s2
12
Spring load
in N ≈
initial
40
Spring load
in N ≈
end
130
66
513-M20X1,5-H-1 drawing

Types

  • Type I: Female thread
  • Type K: Pointed nose
  • Type H: Semi-spherical, Steel
  • Type P: Prism (120°)

Identification No.

  • Version 1: standard spring load
  • Version 2: high spring load

Steel

Threaded sleeve

zinc plated, blue passivated

Spring bolt

case hardened, blackened

Identification

standard spring load:

Crescent shaped ring

phosphated (anthracite)

high spring load:

Crescent shaped ring

zinc plated, blue passivated

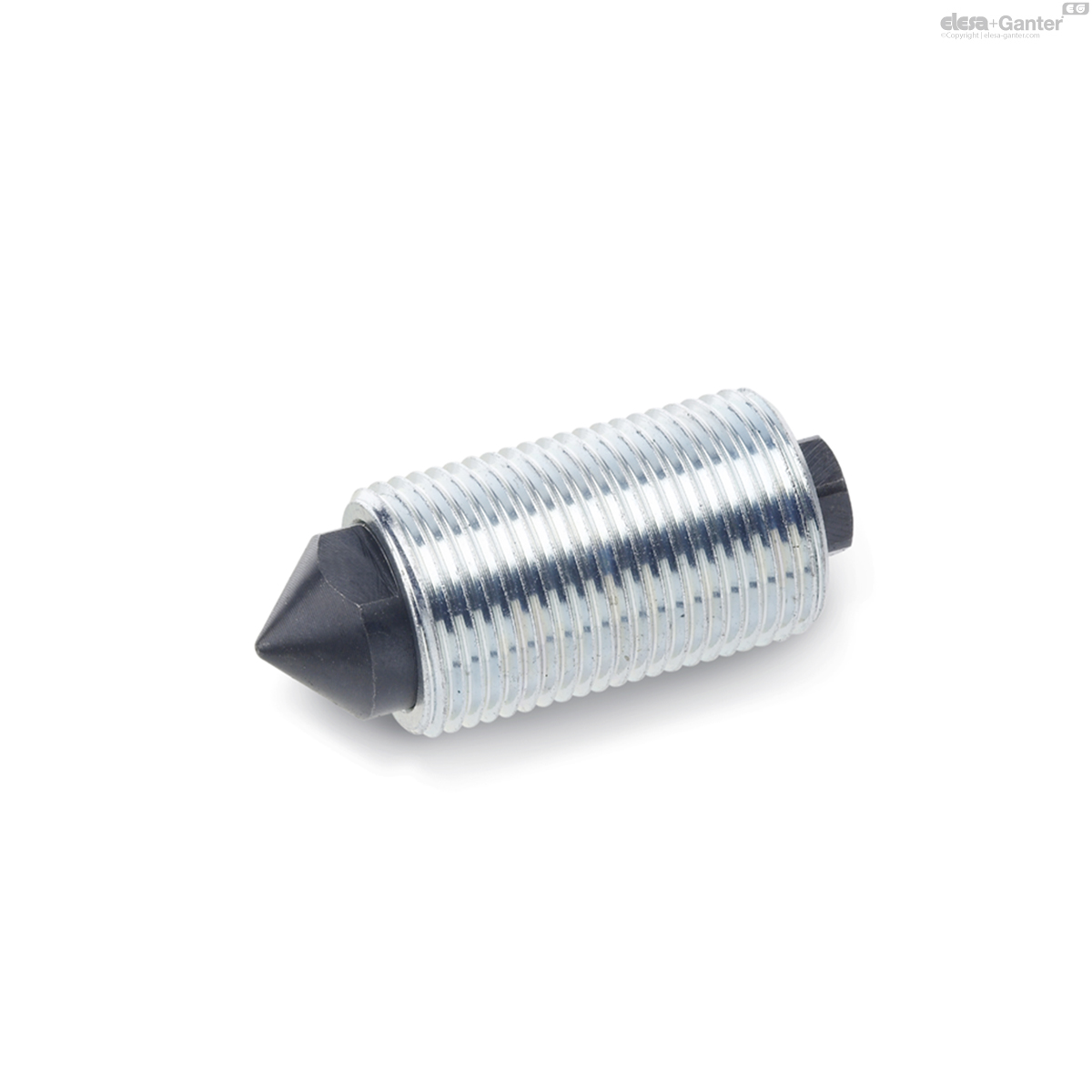

Spring elements GN 513 are universal pressure elements used as detents, positioners or for clamping with spring pressure. The spring loaded nose can be used for a push-on or push-off operation. In addition the spring loaded nose cannot rotate.

At the pulling end the female thread will accept a pulling rod or an operating knob.

Type I with a female thread at the pushing end can be fitted with a special plunger nose.

The spring element can be screwed into a thread at the hexagon on the pulling end or the spanner flats at the pushing end of the plunger.
