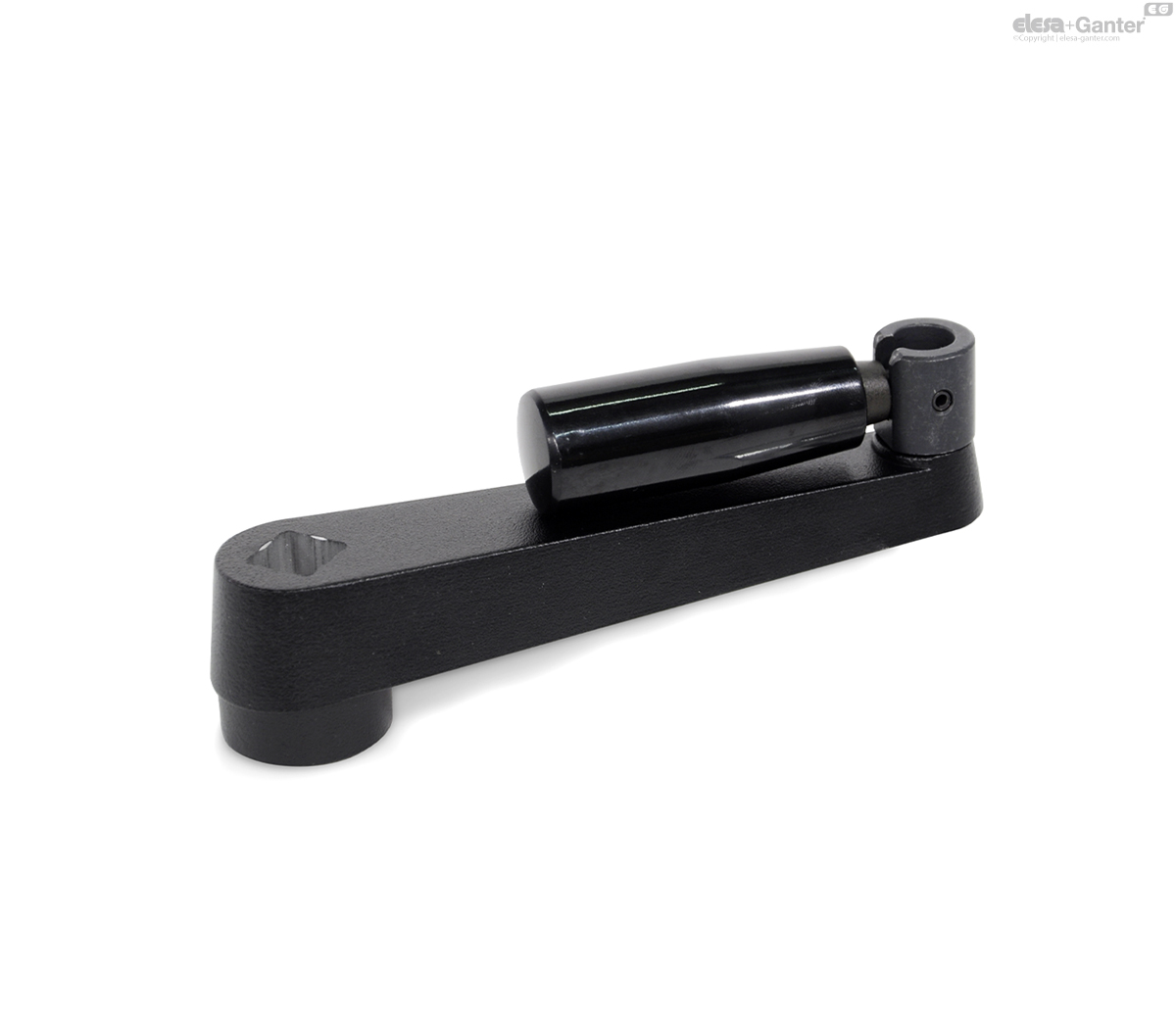

471.3-100-V12 GN 471.3-S Vierkant

471.3-100-V12

GN 471.3-S Vierkant

Aluminium
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 471.3

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 471.3-100-V12
l
100
s H11 Square
V 12
d2
27
d3
30
h1
28
h2
17
h3
13
h4
19.5
h5 ≈
67.5
Ø Handle
23
190

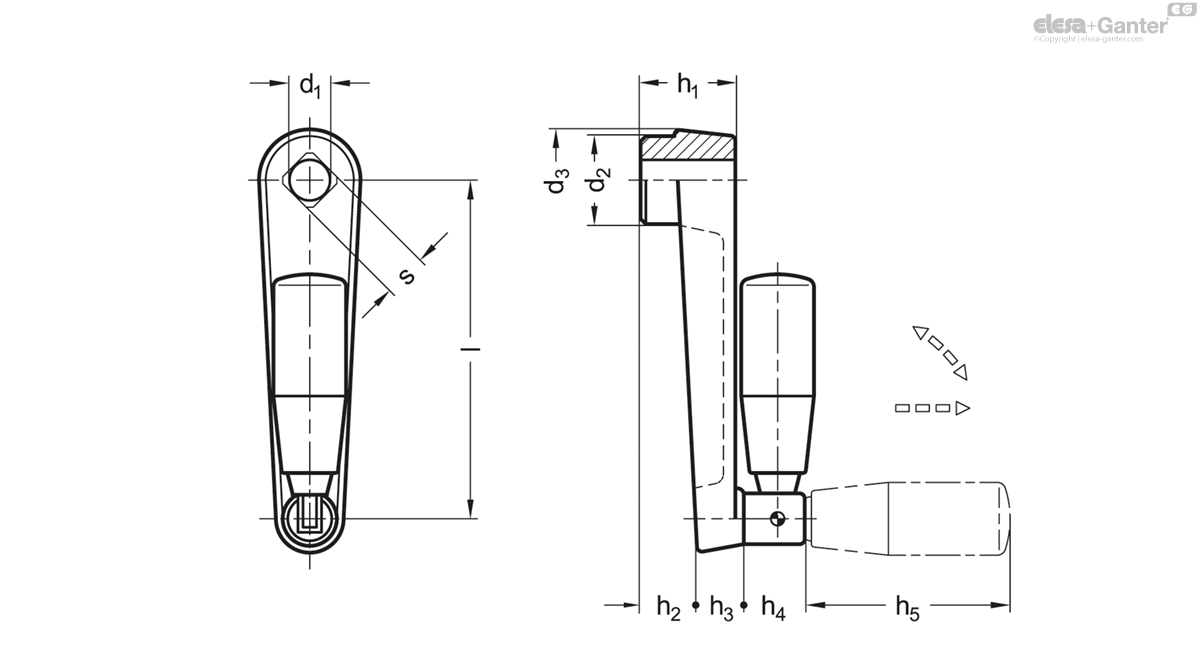

471.3-100-V12 drawing

Body

Aluminum

  • Powder coated
  • Black, textured finish
  • Contact face of hub machined

Retractable Handle GN 598.3

Plastic, Polyamide (PA)

  • Black, shiny finish
  • Retractable Mechanism
  • Steel, blackened

The handle of the cranked handles with retractable handle GN 471.3 is locked in a tapered bore in the operating position.

For tilting, the handle must first be pulled out of the taper in axial direction.

A pressure spring holds the handle in both end positions. When folded out, it automatically re-engages.

  • (Retractable Mechanism Stainless Steel)
