417-4-A GN 417-A Met hijsring

417-4-A

GN 417-A Met hijsring

Staal / RVS met hijsring / met draadlus / met knop, met en zonder rustpositie
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Lt: 1-2 weken Alle maten en varianten van GN 417

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 417-4-A
d1
Bore
+0.03/+0.08 Pin h11
4
b1
22
b2
16.5
b3
6
b4 -0.2
3.3
d2
14
d3
6
h1
7
h2
4
h3
10
k1 ±0.05
14
k2
4
k3
8
k4
4.5
l1
4
l2
13
Spring load
in N≈ initial
3
Spring load
in N≈ end
12
11

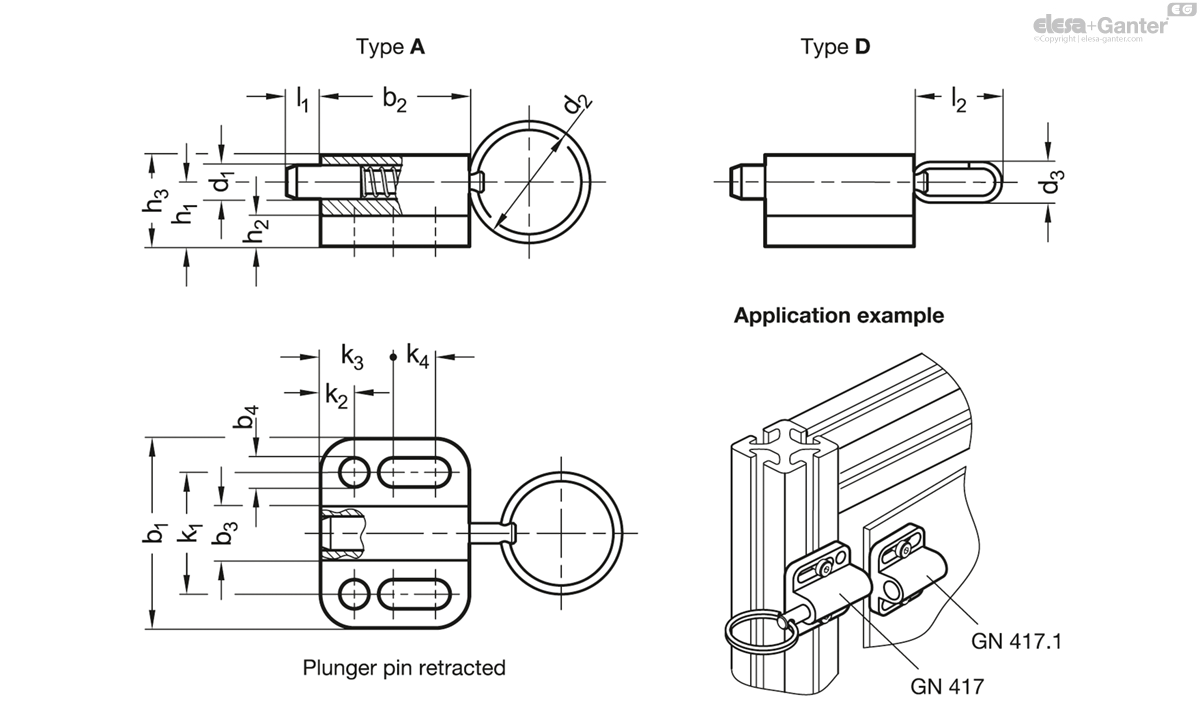

417-4-A drawing

Types

  • Type A: With lifting ring
  • Type D: With wire loop
  • Type B: Without rest position, with knob
  • Type C: With rest position, with knob

Guide

  • Zinc die casting

Powder coated

Black, textured finish

  • Stainless steel precision casting NI

AISI CF-8

Plain, matte shot-blasted

Plunger pin

Stainless steel AISI 303

Pressure spring

Stainless steel AISI 301

Lifting ring / wire loop

Stainless steel AISI 301

Knob

Plastic (Polyamide PA)

  • Black, matte finish
  • Not removable

Indexing plungers GN 417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots.

Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°Indexing. A notch keeps the plunger in this position.

Type D has a reinforced wire loop, making it especially suited for remote actuation, e.g. by Bowden cable.

The stainless steel versions allow the indexing plungers to be used in more aggressive environments.

  • Locators
