350.2-32-11-26-NI GN 350.2-NI Nivelleersets, roestvrijstaal

350.2-32-11-26-NI

GN 350.2-NI Nivelleersets, roestvrijstaal

Staal/roestvrij staal, met kogelvormige sluitring, zonder borgmoer
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 350.2

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 350.2-32-11-26-NI
d1
32
d2
11
h1
26
d3
M 20 x 1
h2
31
h3 Adjustable range
5
For screw
M 10
Static load F
in kN F1
43.4
Static load F
in kN F2
DIN 1810-A30-32
Code no. for
C-Spanner
DIN 1810-A30-32
120
350.2-32-11-26-NI drawing
* max. total load** max. load after deduction of the max. preload, for ST for screws 8.8 (μ = 0,125), for NI for screws 6.8 (μ = 0,14)

Steel 1.7225 (42 CrMo 4 V) ST

Zinc plated, blue passivated

Stainless steel AISI 303 (X 10 CrNiS 18-9) NI

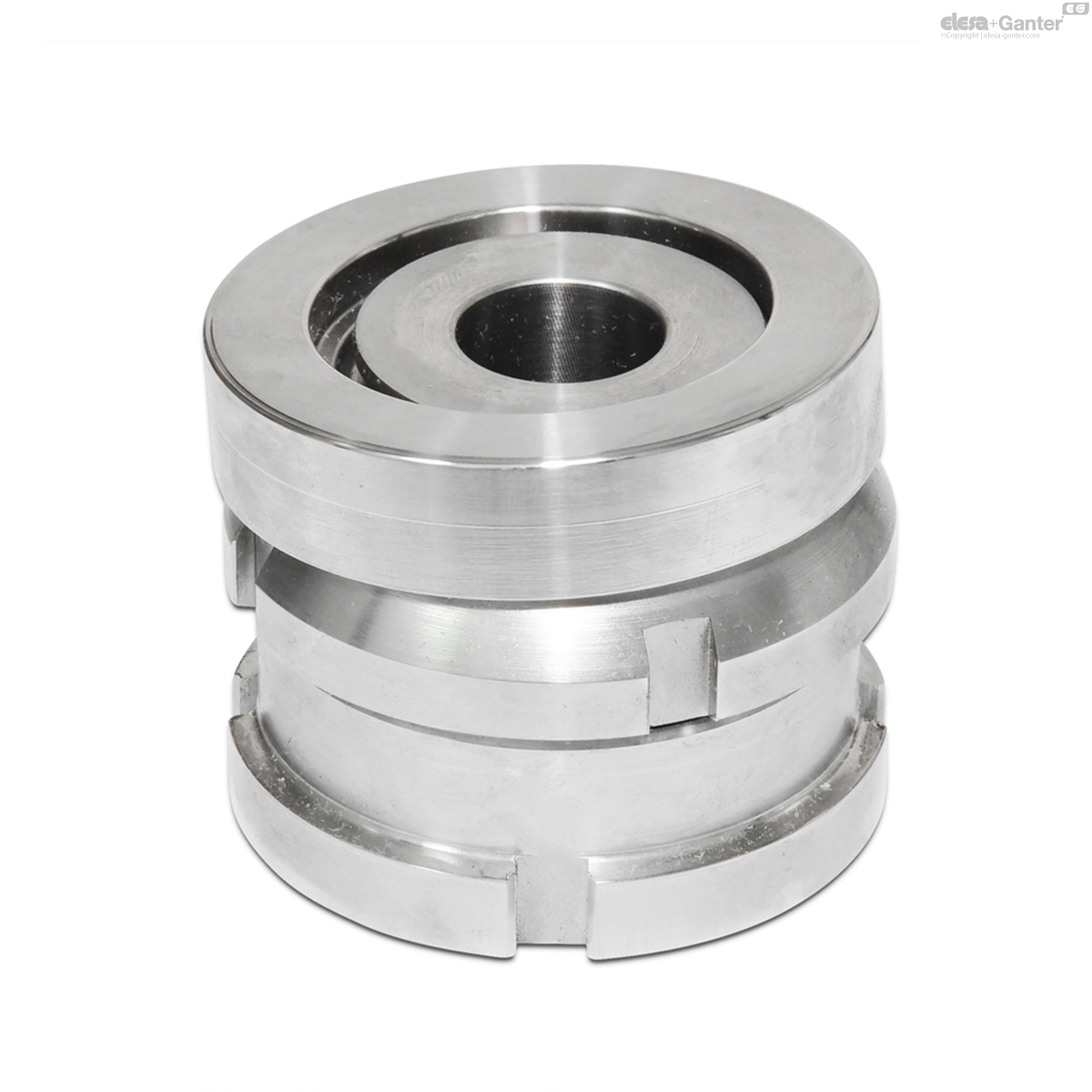

Leveling sets GN 350.2 are used for leveling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°.

They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves as a height limiter for the max. height.

  • DIN 1810 C-Spanner (Code no. see table)
