350.1-32-9-A-ST GN 350.1 Nivelleersets

350.1-32-9-A-ST

GN 350.1 Nivelleersets

Staal/roestvrij staal, korte uitvoering
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 350.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 350.1-32-9-A-ST
d1
32
d2
9
d3
M 20 x 1
h1
18
h2
23
h3
5
For screw
M 8
r
M 8
Static load F
in kN
65
Static load F
in kN F1
48
Code no. for
C-Spanner
DIN 1810-A30-32
Static load F
in kN F2
DIN 1810-A30-32
87

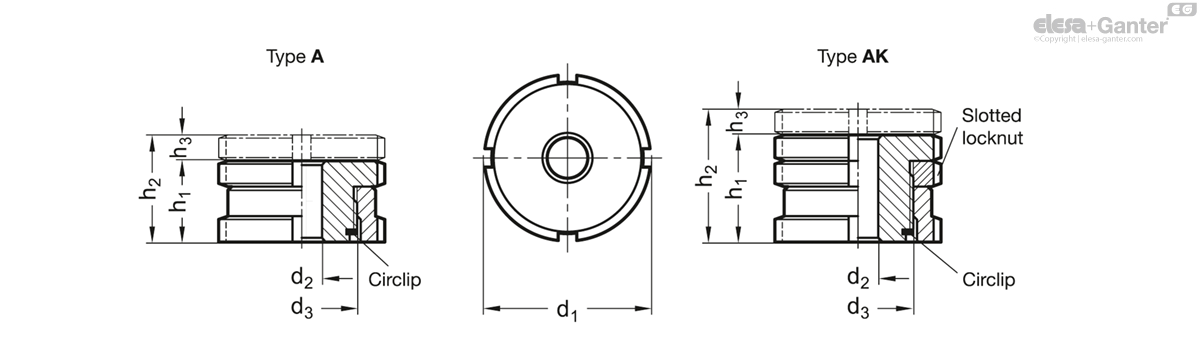

350.1-32-9-A-ST drawing

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel

Steel, 1.7225 (42 CrMo 4V) ST

zinc plated, blue passivated

Version in Stainless Steel

Stainless Steel AISI 303 NI

(X 10 CrNiS 18-9)

F1: max. total load

F2: max. load after deduction of the max. preload

  • for screws 8.8 µ = 0.125 (Steel version)
  • for screws 6.8 µ = 0.14 (Stainless Steel version)

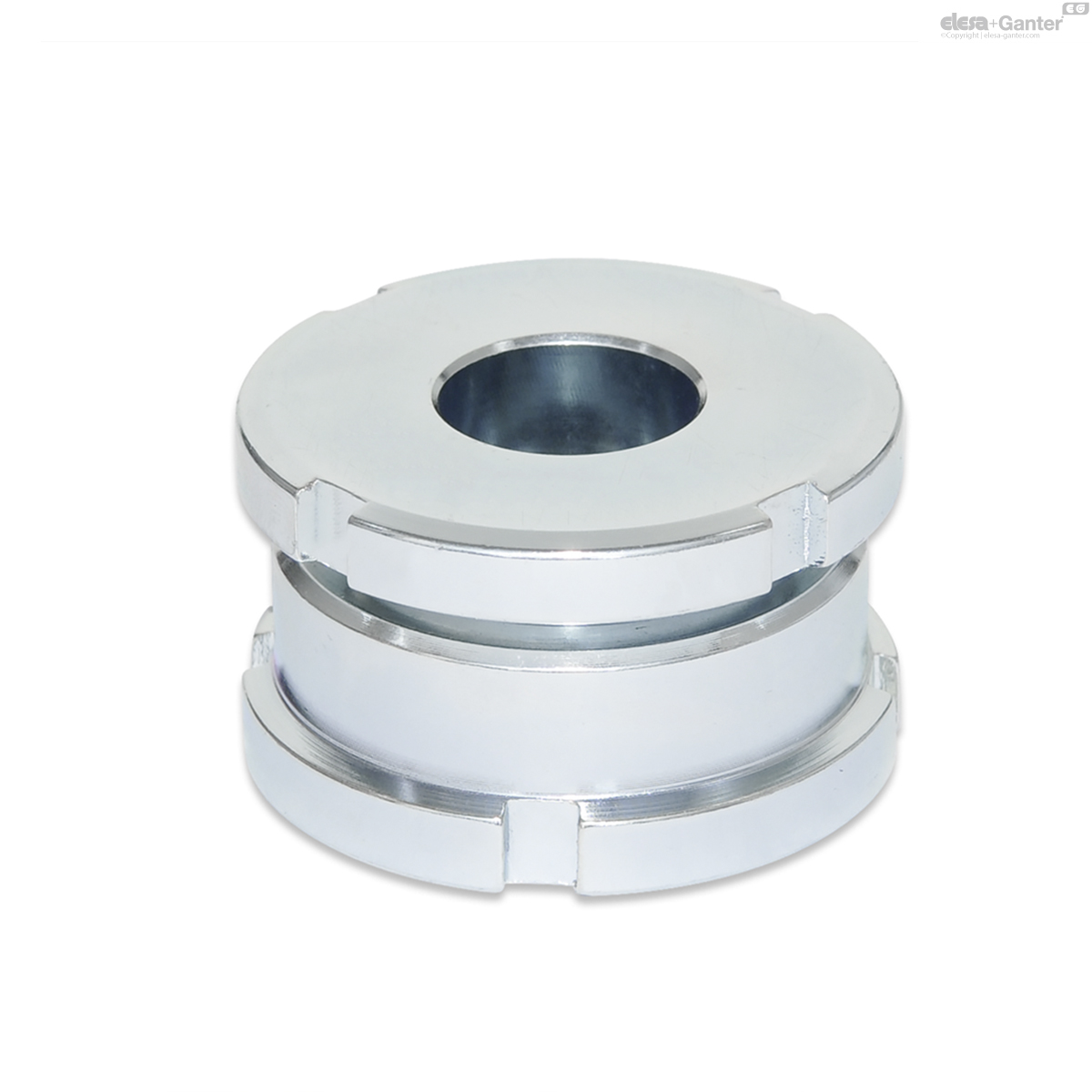

Levelling sets GN 350.1 are used for levelling, adjusting and linking operations if small dimensions are given.

They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.

  • C-Spanner DIN 1810 (code no. see table)
