346-24-M12 GN 346 Drukstukken met kogelscharnier

346-24-M12

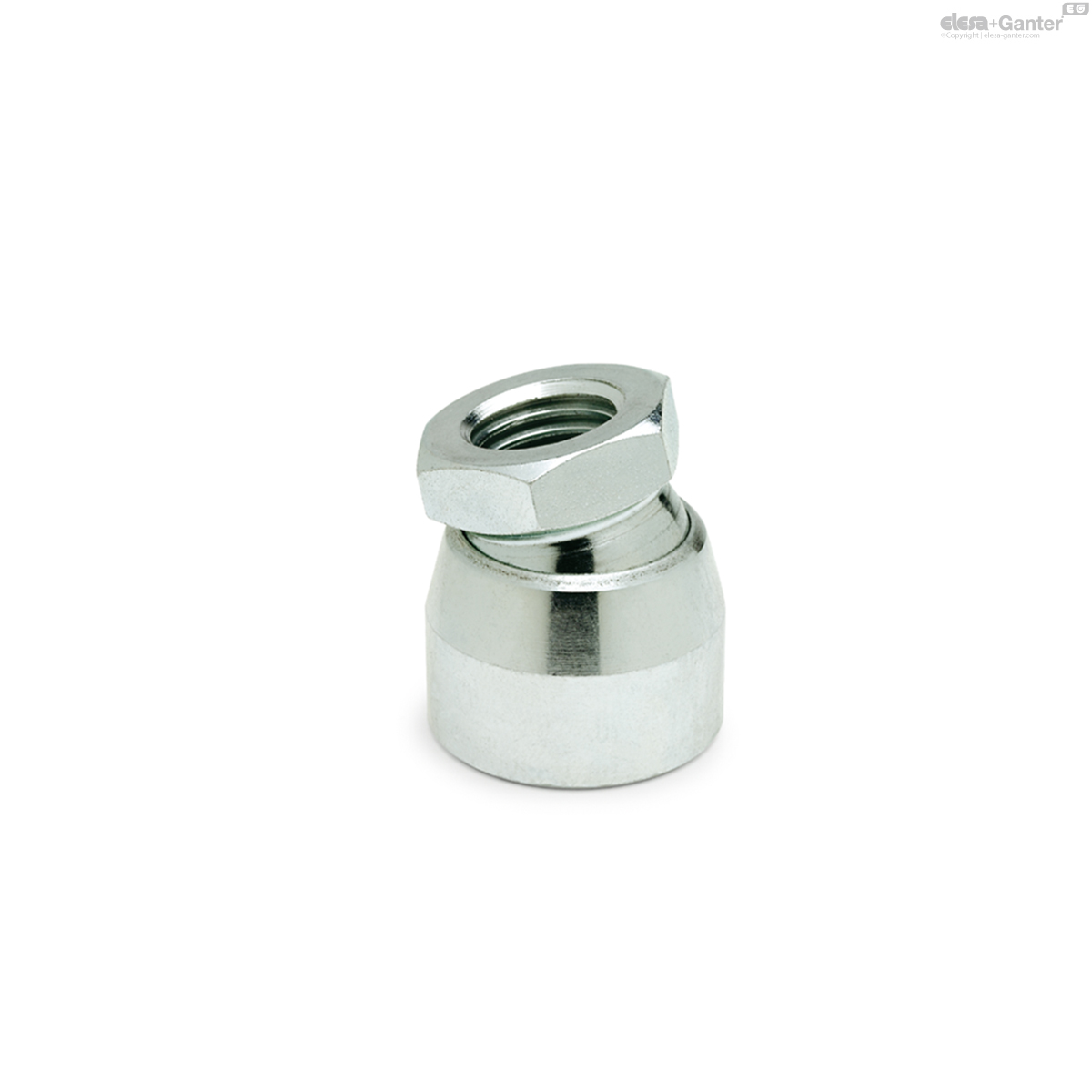

GN 346 Drukstukken met kogelscharnier

  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van GN 346

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 346-24-M12
d1
24
d2
M 12
l1 ≈
25
l2
10
t min.
12
A/F
17
Static load
in kN
10
50
346-24-M12 drawing

Steel

  • Tensile strength class 5.8
  • zinc plated, blue passivated

Ball joint thrust pads GN 346 are in general used for transfer of clamping forces. They adjust themselves to uneven or non-parallel surfaces and clamp without twisting the clamped parts.

The values were arrived at by a series of tests whereby a limited number of ball joint pads were subjected for a limited time to a vertical static load to the pads.

At the values given in the table a permanent deformation of the ball is almost impossible.

Ball joint thrust pads GN 346 can also be used as levelling feet with a small foot diameter.
