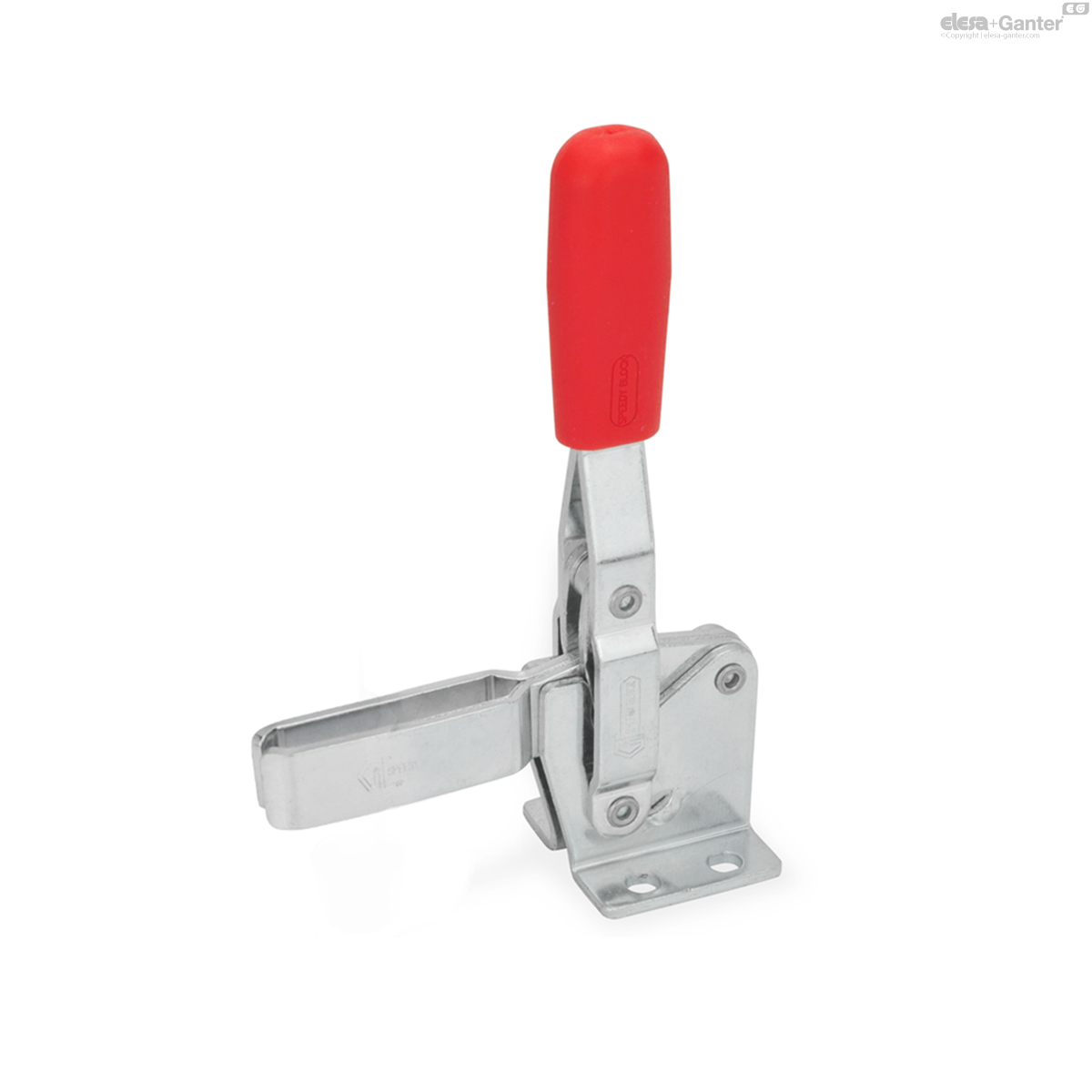

810-330-A GN 810 Staal

810-330-A

GN 810 Staal

Staal/roestvrij staal, bedieningshendel verticaal, met horizontale montagesokkel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 810

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 810-330-A
Size
330
Fh in N
2400
a ≈
43
b1
50
b2
65
b3
10.5
d1
M 10
d2 ≈
8.5
h1 ≈
195
h2
43
h3
22
l1 ≈
129
l2 ≈
66
m1
29
m2
32
m3
46
m4
45
r ≈
122
s1
3.5
590
810-330-A drawing

Types

  • Type A: U-bar version, with two flanged washers
  • Type C: U-bar version, with two flanged washers and GN 708.1 spindle assembly
  • Type E: Solid bar version, with clasp

Version in Steel

  • Case-hardened Steel C10, zinc plated, blue passivated
  • Bearing pins tempered
  • Bearing rivets (for size 230 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

  • Steel, zinc plated
  • Rubber tip 85 Shore A

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

  • Stainless Steel AISI 304
  • Rubber tip 85 Shore A

GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (Type A) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type C.

Type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with GN 809 clamp mounts to hold the work piece in place.

  • Spindle assemblies
  • GN 801 clamp mounts for toggle clamps (for Type A)
  • GN 809 clamp mounts for toggle clamps (for Type E)
