264-30-MCRS GN 264 Schaalringen

264-30-MCRS

GN 264 Schaalringen

Staal, mat verchroomd, accessoires voor schaalverdelingsets
  • RoHS

Lt: 1-2 weken Alle maten en varianten van GN 264

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 264-30-MCRS
d1
30
d2
27
d3 H7
24
d4
33
l1
16
l2
23.7
Scaling set consists of:
1 Scale ring
2 Collar bushes
GN 268-24-K...
Scaling set consists of:
1 Scale ring
3 Flat springs
GN 374-0.3-10
49

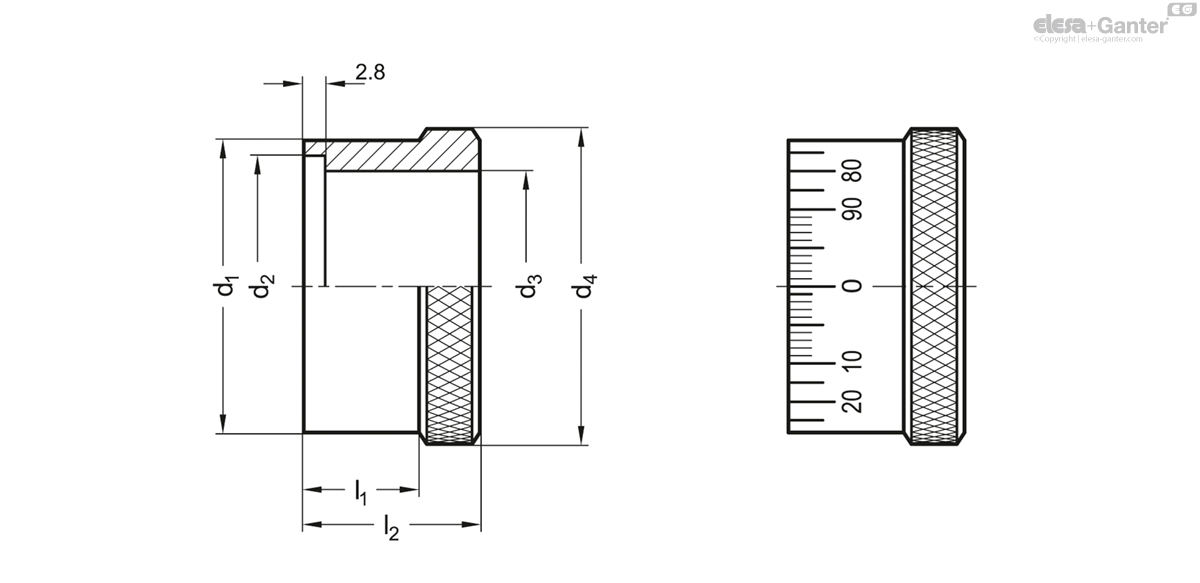

264-30-MCRS drawing

Types

  • Type MCR: Matte chrome plated
  • Type MCRS: Matte chrome plated, standard scale 0...90, 100 graduations, acc. scale scheme d1/100 A RA 0-10-20...90/10

Steel

  • Scale lug d1 fine turned
  • Matte chrome plated without scale MCR
  • Matte chrome plated with standard scale MCRS
  • Scale laser-engraved, black discharged

Scale rings GN 264 can be supplied with any type of scale. The ordering scheme for scales must be used for the line pattern, number steps, number position and number sequence of any scaling.
