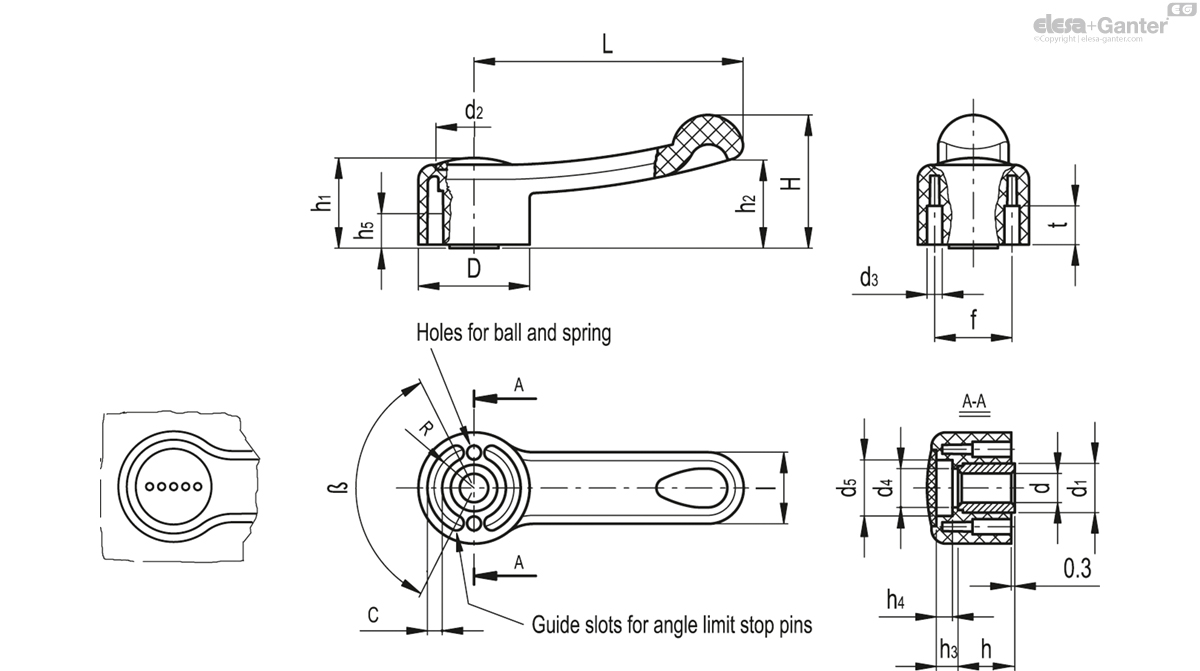

ELC.85-A8-C6
ELC. Zwart-oxide stalen naaf, kapje in de Ergostyle-kleuren
Lt: 1-2 weken Alle maten en varianten van ELC.
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- 212131-C6
- Omschrijving
- ELC.85 A-8-C6
- D
- 37
- dH7
- 8
- L
- 85
- H
- 41
- h
- 17.5
- h1
- 27
- h2
- 27
- h3
- 7.5
- h4
- 5
- h5
- 10
- d1
- 18
- d2
- 26
- d3
- 5
- d3*
- 5
- d4
- 13.5
- d5
- 20
- l
- 23
- R
- 13.8
- t
- 12.5
- c
- 4.3
- β
- 125±1°
- f
- 26
- 64
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Boss cap
Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Standard executions
- ELC: black-oxide steel boss, H7 reamed hole, cap in the Ergostyle colours.
- ELC-FC3: black-oxide steel boss, H7 reamed hole, cap in RAL 7035 light grey colour, with arrow indicator.
- ELC-SST: AISI 303 stainless steel boss, H7 reamed hole, cap in the Ergostyle colours.
- ELC-SST-FC3: AISI 303 stainless steel boss, H7 reamed hole, cap in RAL 7035 light grey colour, with arrow indicator.
Ergonomy
Rotations are performed smoothly and powerfully thanks to the heavy-duty arm of the lever, while the enlarged and sunken semispherical end offers an effective grip.
Manoeuvre angle limitation
A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.
Accessories on request
- GN 184: axial retaining washer in black-oxide steel.
- MS.: ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring).
- ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colour, matte finish, press-fit assembly (see table).
- ECBF.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, RAL 7035 light grey colour, with arrow indicator, press-fit assembly (see table).
Special executions on request
Levers with cross holes according to GN 110.
