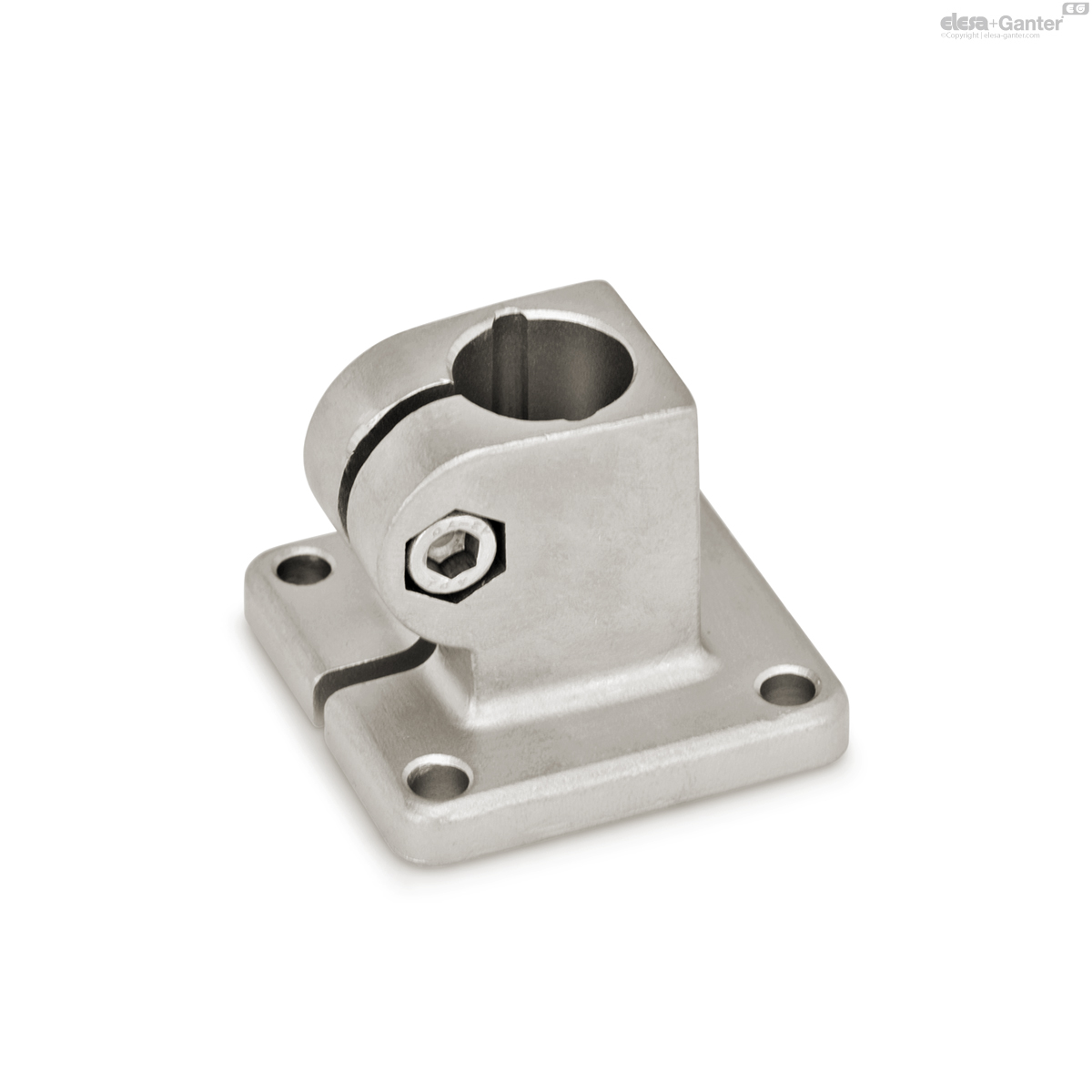

162-B14-2-NI GN 162-NI Roestvrij staal

162-B14-2-NI

GN 162-NI Roestvrij staal

Aluminium / Roestvast staal, met 4 montagegaten
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 3-4 weken Alle maten en varianten van GN 162

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 162-B14-2-NI
d1
Bore
B 14
d2
5.5
k Clamping length
40
l1
34.5
l2
25
t
7
x1
50
x2
38
y1
50
y2
38
z
Screw location
M6-20
84
162-B14-2-NI drawing

Identification No.

No. 2: With stainless steel socket cap screw DIN 912

Aluminum

  • Powder coated

Black, RAL 9005, textured finish SW

  • Plain, matte shot-blasted BL

Stainless steel AISI CF-8 NI

Matte shot-blasted

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

The clamping bore of base plate connector clamps GN 162 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
