564-25-128 GN 564 Beugelgrepen

564-25-128

GN 564 Beugelgrepen

met polyurethaanschuimrubber
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SOFT__.png

Lt: 1-2 weken Alle maten en varianten van GN 564

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 564-25-128
b
25
Length l ±0.25
128
a
16
d1
M 6
d2
10
h
54
r
7
t min.
10
172
564-25-128 drawing

Sheathing

Thermoplastic polyurethane (TPU)

  • Black, textured matte finish
  • Elastic, 65±5 Shore A
  • Operating temperature up to 70 °C
  • Abrasion-resistant
  • Insulating
  • Weather-proof

Handle core

  • Stainless steel AISI 303
  • Round (for size b = 25)
  • Aluminum
  • Elliptical (for size b = 35)

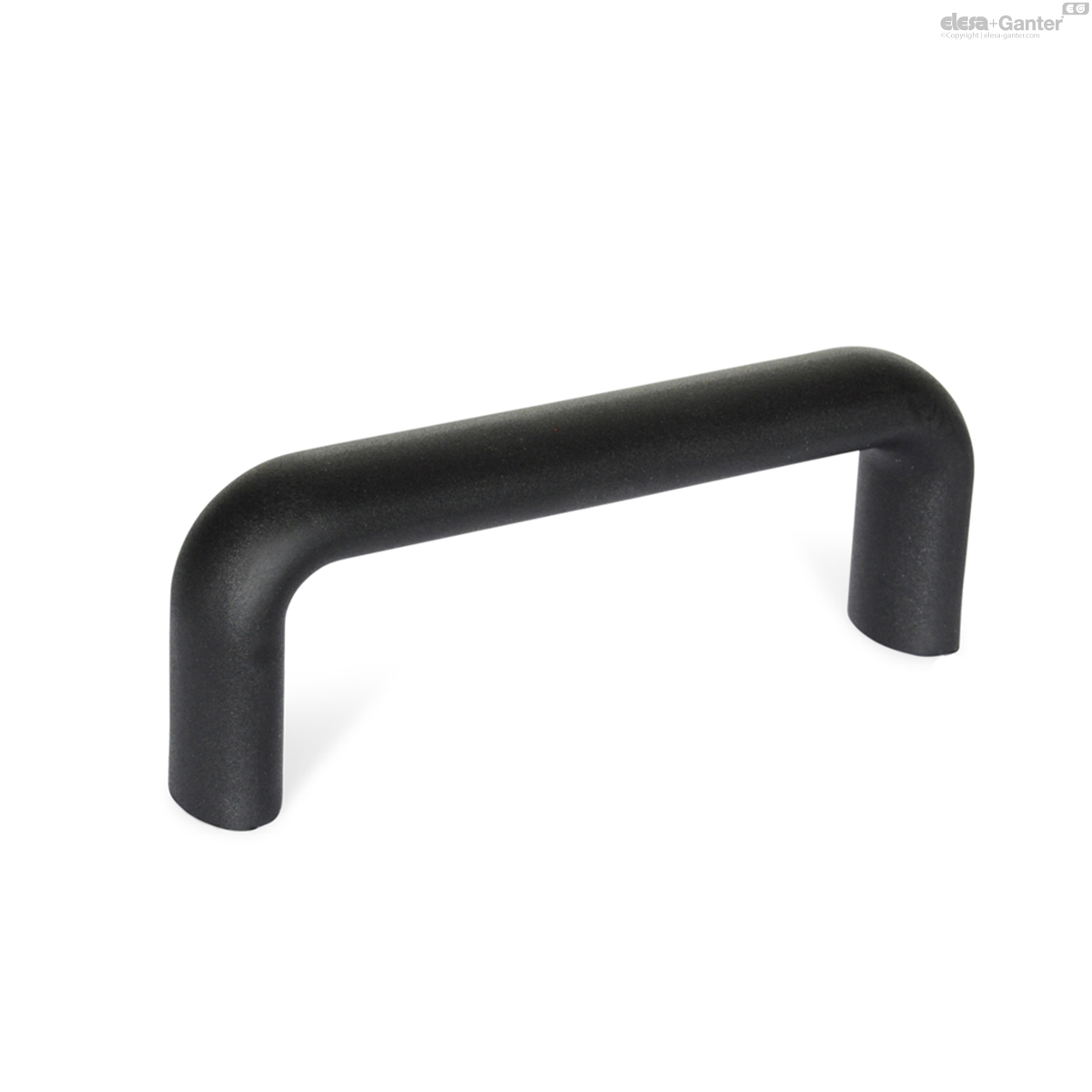

The shock absorbing casing of the GN 564 cabinet U-handles made of thermoplastic polyurethane (TPU) offers protection from injuries, while its elliptical shape gives it a nice hold.

The stainless steel core and the aluminum core guarantee a high basic durability of the handle.

  • Other colors
