GN 608.1 Blokkeerbouten
Lt: 1-2 weken Alle maten en varianten van GN 608.1
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 608.1-8-18
- d1 Pin -0.02/-0.05 Bore H7
- 8
- l1
- 18
- b1
- 46
- b2
- 20
- d2 -0.02/-0.1
- 12
- d3
- 31
- d4
- 5.3
- d5
- 10.4
- k
- 34
- l2
- 54
- l3 -0.15
- 2.5
- l4
- 5.5
- l5
- 8
- Spring load in N ≈
initial - 13
- Spring load in N ≈
end - 26
- Axial load in N
- 500
- 63
Guide
Zinc die casting
zinc plated, blue passivated
Knob
Plastic (Polyamide PA)
- black, matt
- not removable
Pin
Steel, hardened
Single components Steel / Brass

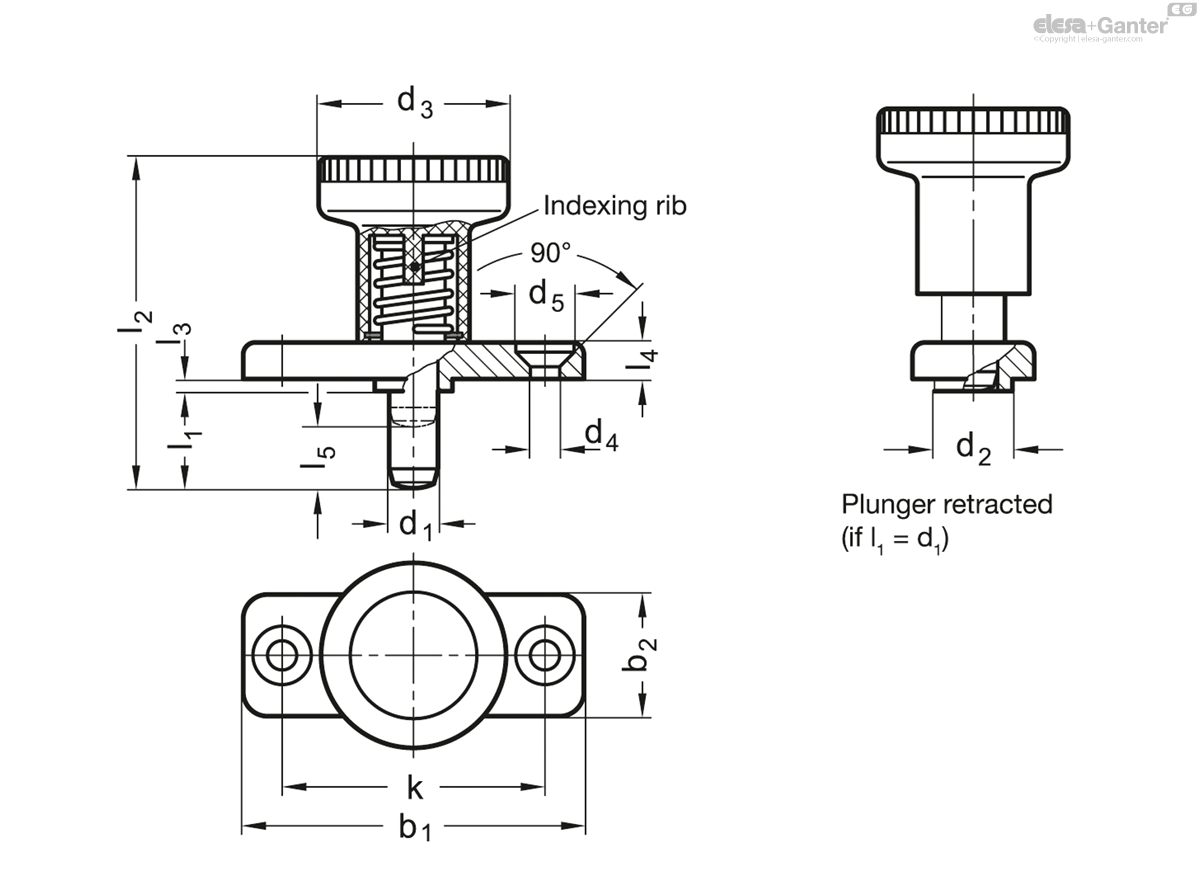

Indexing plungers GN 608.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Indexing plungers GN 608.1 are distinguished for their small dimensions. The locking tab is integrated into the knob thus giving reliable operation at all times.
