GN 124.2 Roestvrijstalen borgpennen
Lt: 1-2 weken Alle maten en varianten van GN 124.2
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

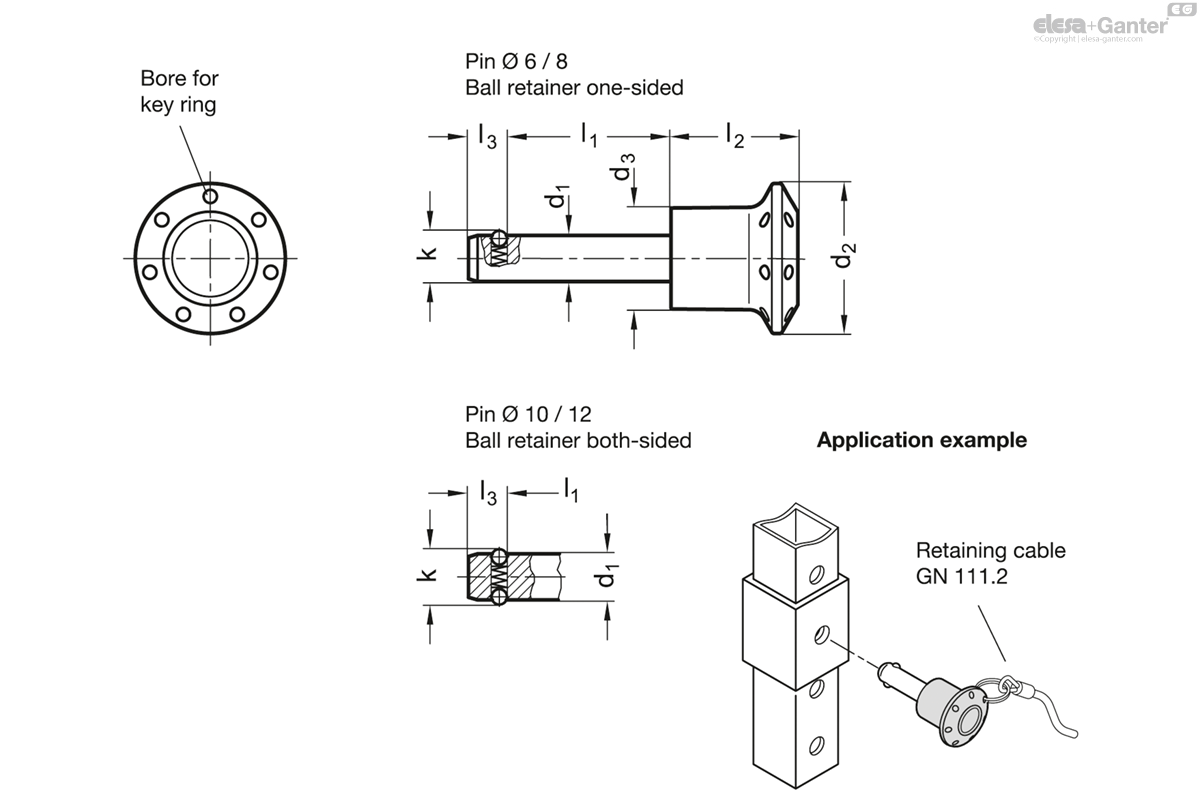

Technische fiche
Technische gegevens
- Code
- GN 124.2-10-30
- d1 -0.04/-0.08
- 10
- l1
- 30
- d2
- 34
- d3
- 23
- k
- 12
- l2
- 28.5
- l3
- 8.7
- Location bore
- 10
- Axial holding
force in N ≈ - 30
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 62
- 49
Pin
Stainless Steel AISI 303
Knob
Plastic Technopolymer (Polyamide PA)
- black-grey
- temperature resistant up to 80 °C
Ball
Stainless Steel AISI 420C
Spring
Stainless Steel AISI 631
GN 124.2 Stainless Steel-Locking pins are used for quick fixing, connecting and locking of various jig and fixture systems.
The locking balls are held in position by a pressure spring and are therefore not rigidly locked. The bolts can be quickly and easily inserted and removed from the locating hole.
The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
This standard replaces the previous Stainless Steel-Locking pins GN 124.
