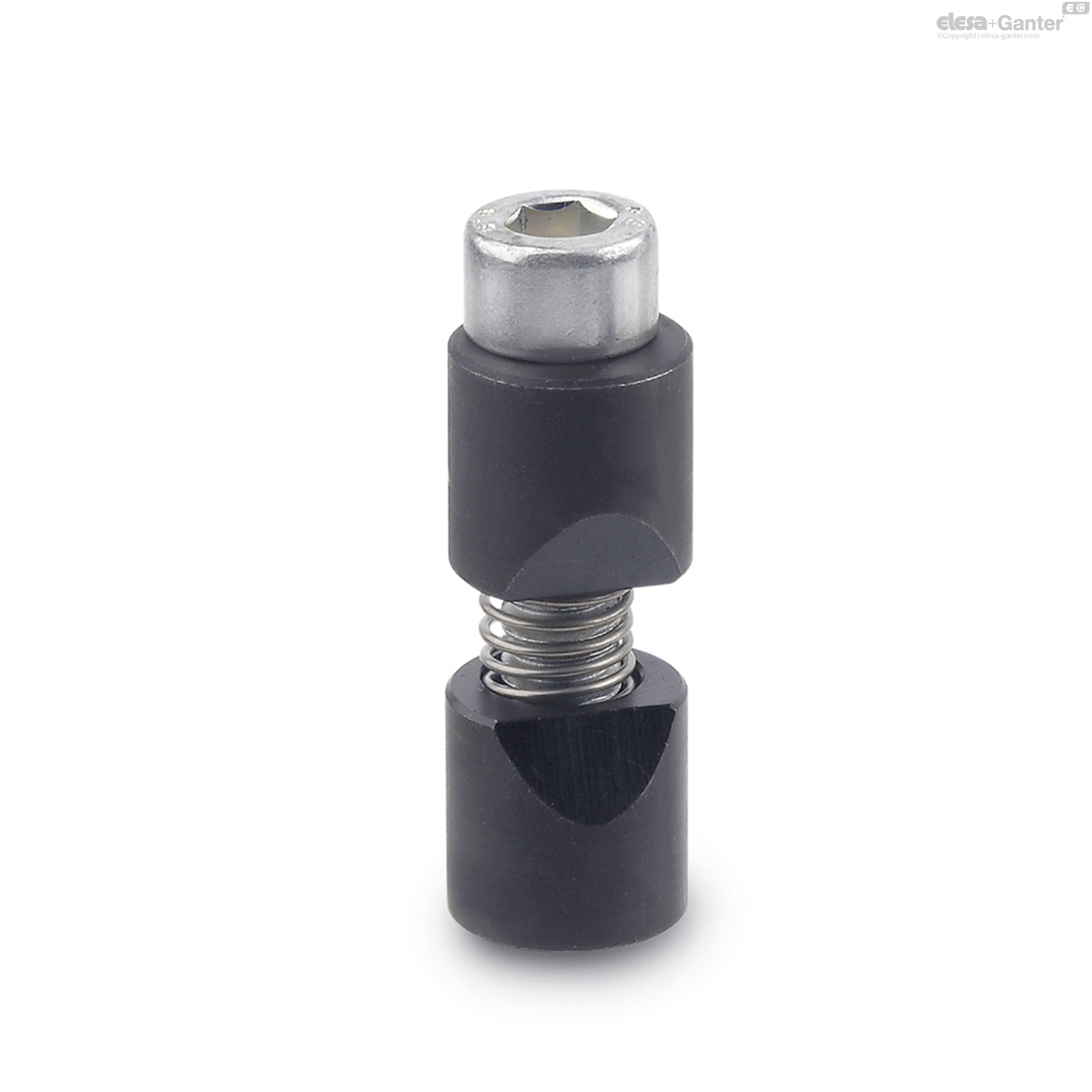

928-30 GN 928-ST Staal
Staal / RVS
Verwachte levertermijn 5-7 werkdagen
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 928-30
- d1 h11
- 30
- d2
- M 16
- d3 Round workpiece
- 60 - 125
- d4 H7
- 30
- d5
- M 10
- e +0.2
- d3/2 + 7.9
- l1 max.
- 85
- l2
- 30
- l3
- 16
- A/F
- 14
- Max. tightening torque
in Nm - 206
- Code no.
mounting tool - GN 928.1-14
- 345
Version in Steel
Steel
- Blackened
- Socket cap screw DIN 912
Zinc plated, blue passivated
Version in Stainless Steel
Stainless steel AISI 303 NI
Socket cap screw DIN 912
Stainless steel
With the shaft clamping unit 'trueround' GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped.
The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.
- Mounting tools GN 928.1 (Code no. see table)
