928-12 GN 928-ST Staal

928-12 GN 928-ST Staal

Staal / RVS
Alle maten en varianten
  • INOX
  • RoHS

Verwachte levertermijn 5-7 werkdagen

Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 928-12
d1 h11
12
d2
M 6
d3 Round workpiece
15 - 20
d4 H7
12
d5
M 4
e +0.2
d3/2 + 3.5
l1 max.
36
l2
12
l3
6
A/F
5
Max. tightening torque
in Nm
10
Code no.
mounting tool
GN 928.1-5
weight
22
928-12 drawing
Video: GN 928

Version in Steel

Steel

  • Blackened
  • Socket cap screw DIN 912

Zinc plated, blue passivated

Version in Stainless Steel

Stainless steel AISI 303 NI

Socket cap screw DIN 912

Stainless steel

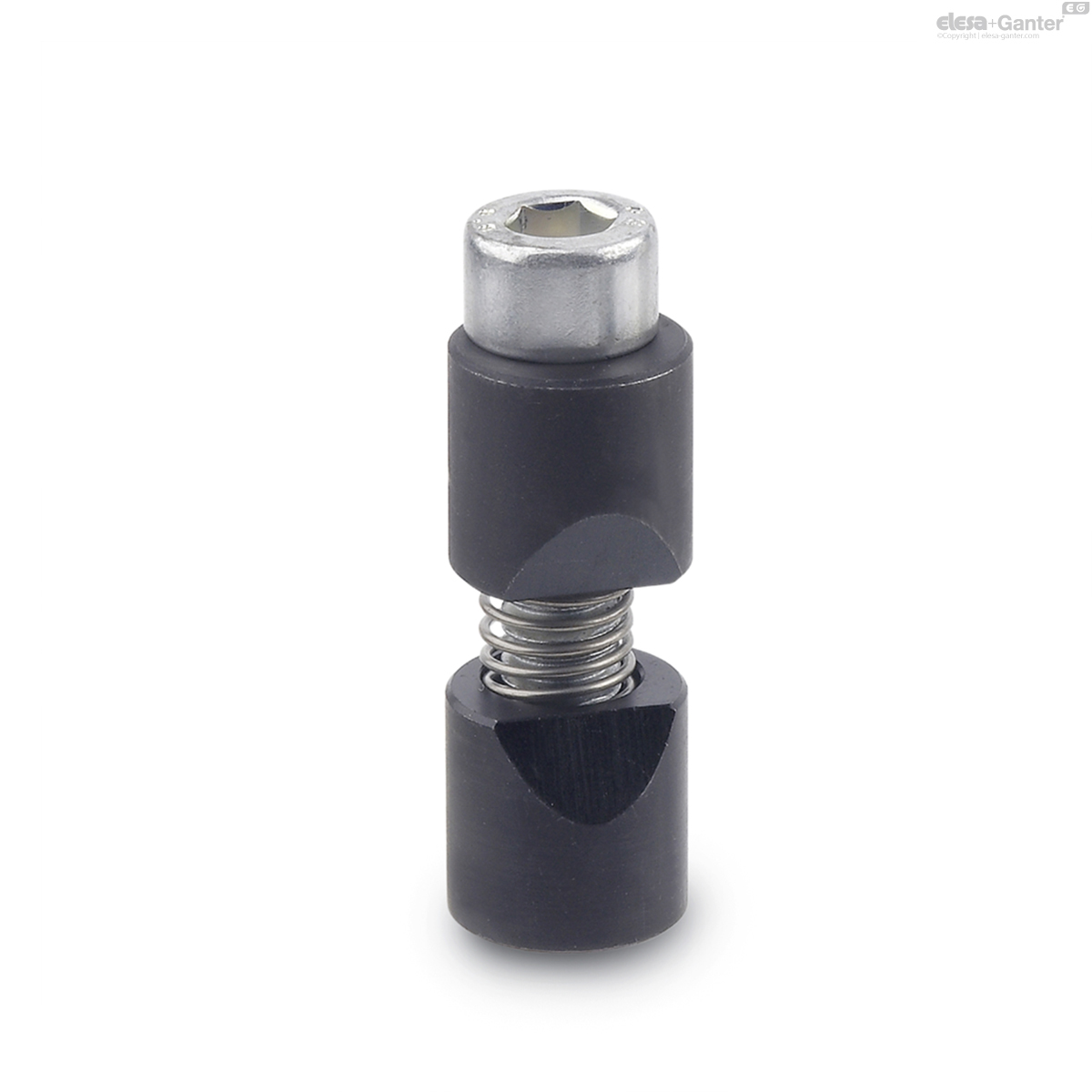

With the shaft clamping unit 'trueround' GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped.

The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.

  • Mounting tools  GN 928.1 (Code no. see table)
