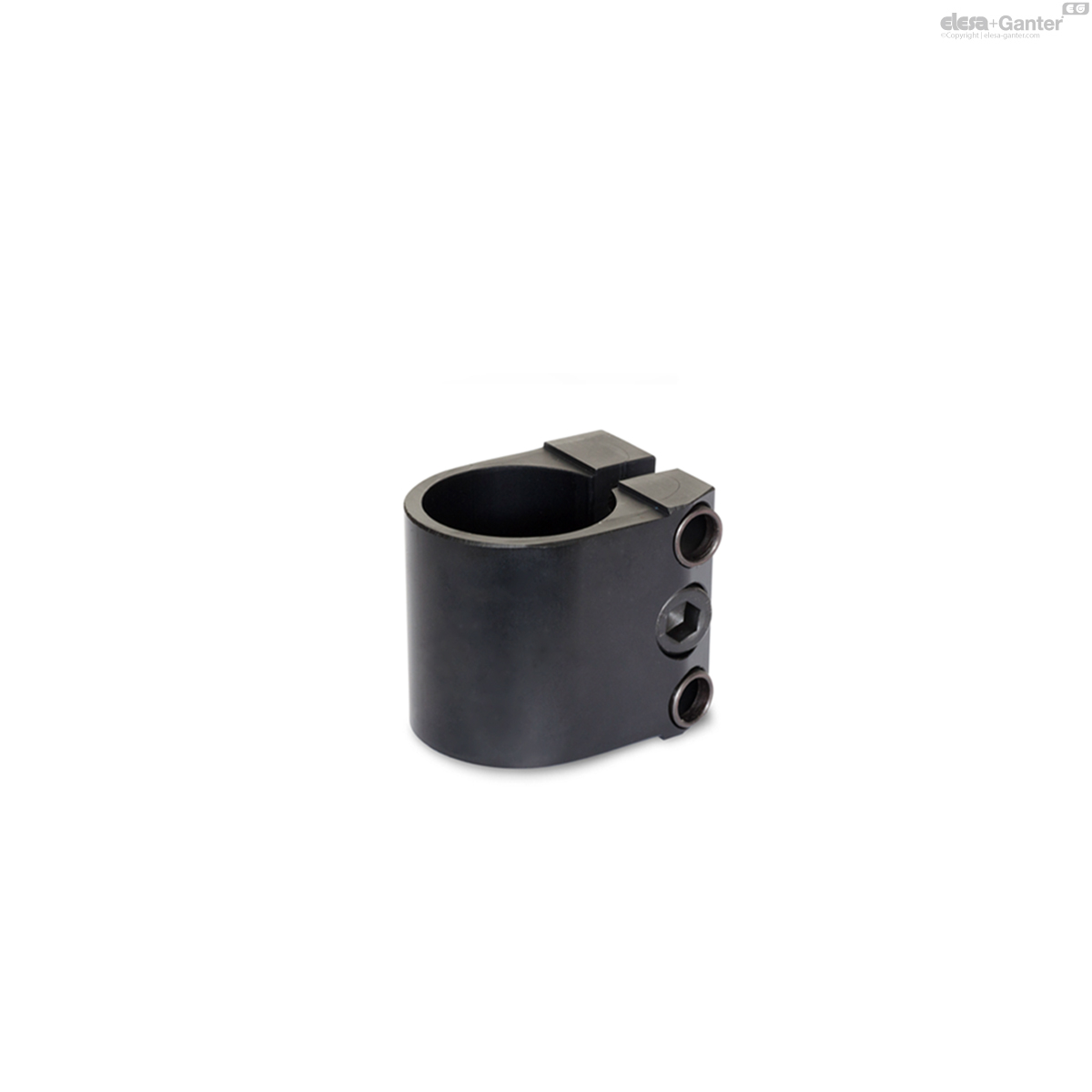

873-40
GN 873 Klemhouder (accessoire)
Lt: 1-2 weken Alle maten en varianten van GN 873
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens

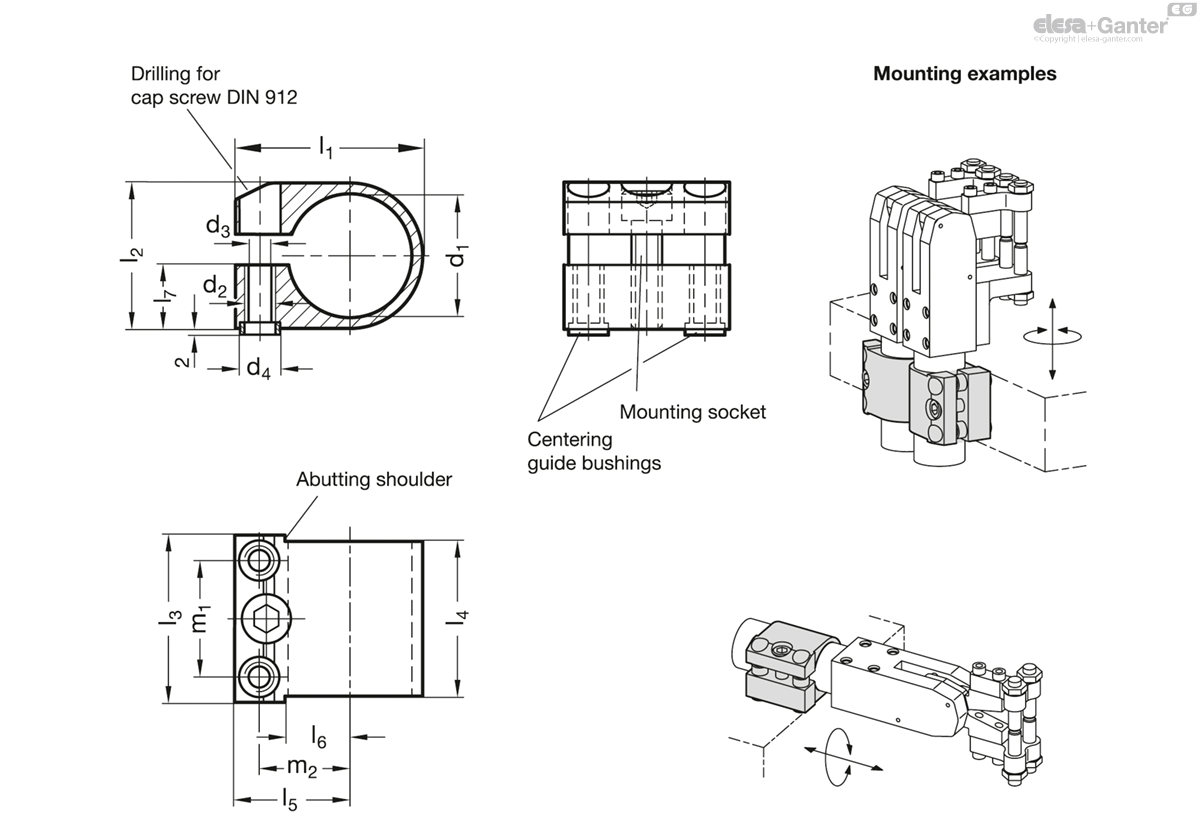

- Code
- GN 873-40
- For power clamps
Size - 32
- d1
- 40
- d2
- M 10
- d3
- 8.5
- d4 H8/h6
- 13
- l1
- 61.35
- l2
- 48
- l3
- 54
- l4
- 51
- l5
- 39
- l6
- 21
- l7
- 21
- m1
- 38
- m2
- 29.35
- 150
Aluminum
Black anodized
Centering guide bushings
Steel, blackened
GN 873 clamp mounting bracket accessories greatly increase the mounting possibilities and, with that, the field of applications for pneumatic fastening clamps is vastly increased.
The abutting shoulder can be used for precise positioning of the pneumatic fastening clamps thus allowing a problem free exchange of the latter.
The use of the two centering guide bushing accessories ensures an exact and stable installation of the clamp mounting bracket accessories as well as the pneumatic fastening clamps.
Other clamp mounting bracket accessories for the sizes d1 = 40 (piston Ø 32) and d1 = 50 (piston Ø 40) are shown under the tube clamp connector range.
Centering guide bushing accessories are included.
