ME.80 ME. Gebalanceerde zwengels

ME.80

ME. Gebalanceerde zwengels

Duroplast
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__PF__.png
  • Icons/__logo__g90__.png
  • Icons/__logo__g11020__.png
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__IF79__.png

Lt: 1-2 weken Alle maten en varianten van ME.

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
38101
dH7
10
L
80
d1
14
d2
15
l
26
l1
20
l2
24
l3
20
h
16
h1
1.5
h2
8
H
40
m
M6
R
30
106

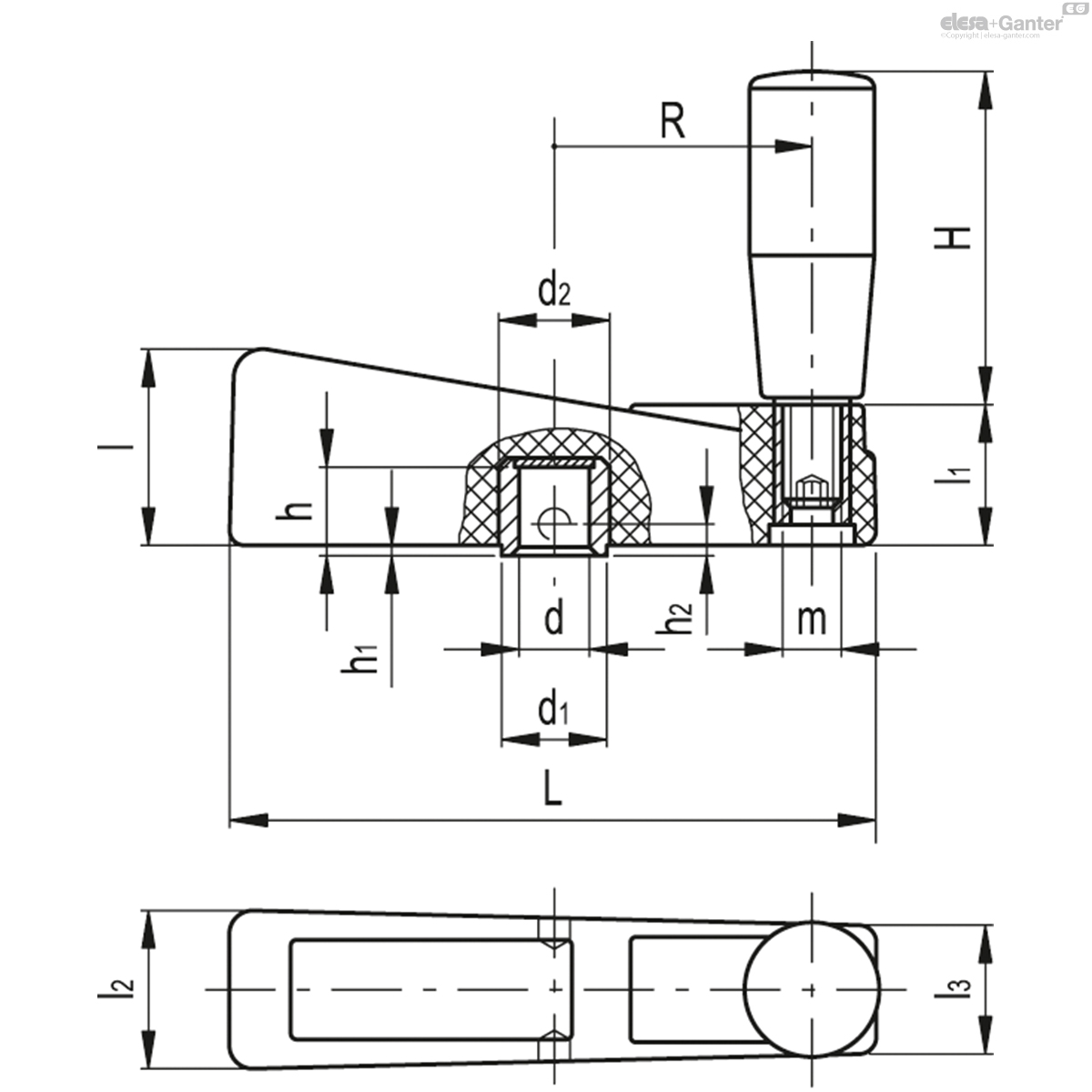

ME.80 drawing

Material

Reinforced phenolic based (PF) Duroplast. Polyamide based (PA) technopolymer for ME.95, black colour, glossy finish. Balancing by means of an incorporated counterweight

Front plate

Matte anodised aluminium (ELESA original design).

Standard execution

Black-oxide steel boss, H7 reamed hole. Reamed hole provided with centres already drilled for pinning to shaft. Use pins with smaller diameter than the one of the already drilled hole to avoid local stress.

Revolving handle I.301+x in Duroplast.
