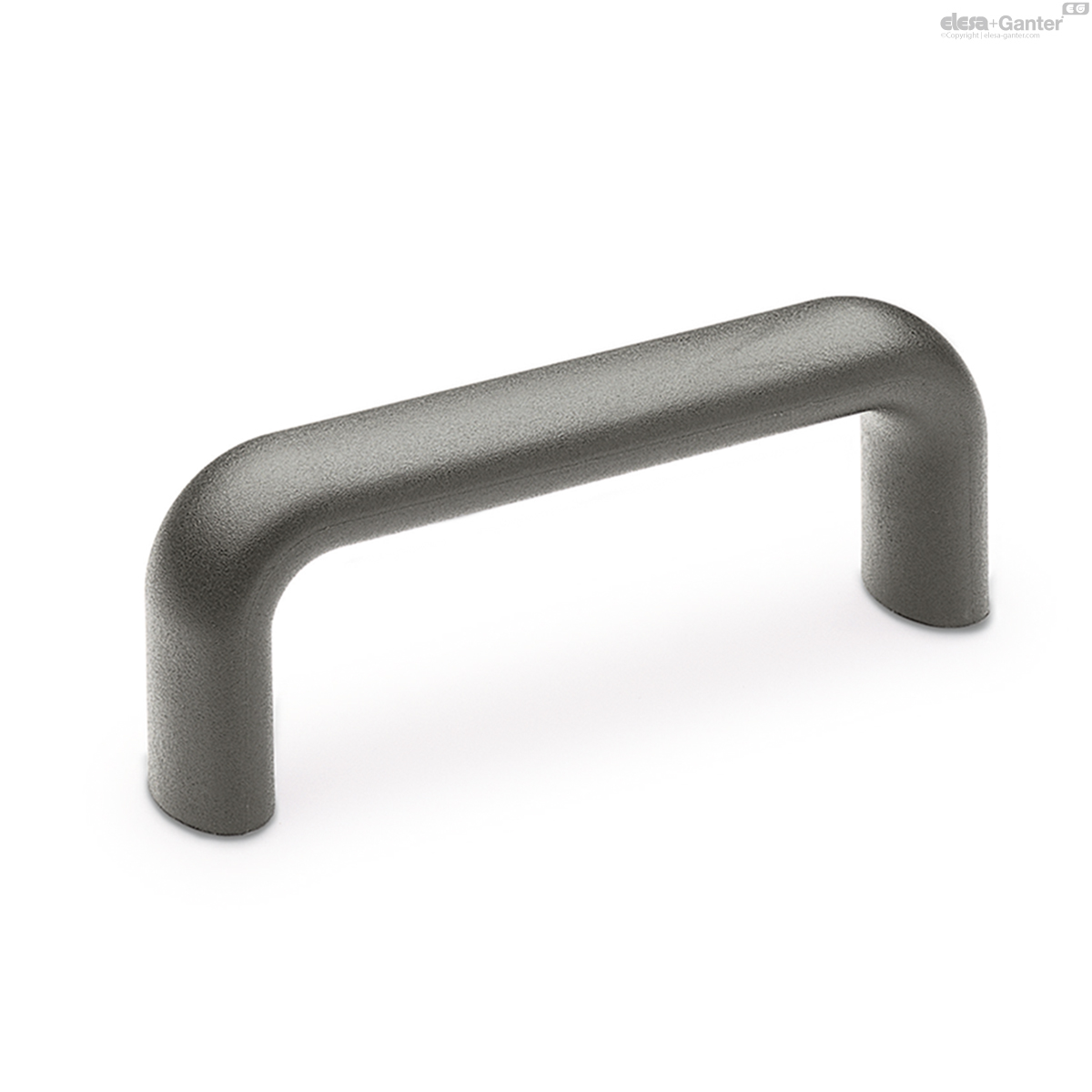

M.643/140 B-M8 HT
M.643 HT Beugelgrepen
Beugelgrepen
Lt: 1-2 weken Alle maten en varianten van M.643 HT
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- 37511
- L
- 134
- f
- 117±1
- d6H
- M8
- h
- 49
- B
- 15
- l
- 25
- p
- 13
- F1
[N] - 2500
- F2
[N] - 3400
- L1
[J] - 8
- L2
[J] - 12
- 94
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, resistant to high temperatures, grey-black colour, matte finish.
Standard execution
Brass bosses, threaded blind holes.
Maximum working temperature
200°C.
Technical Data
Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
