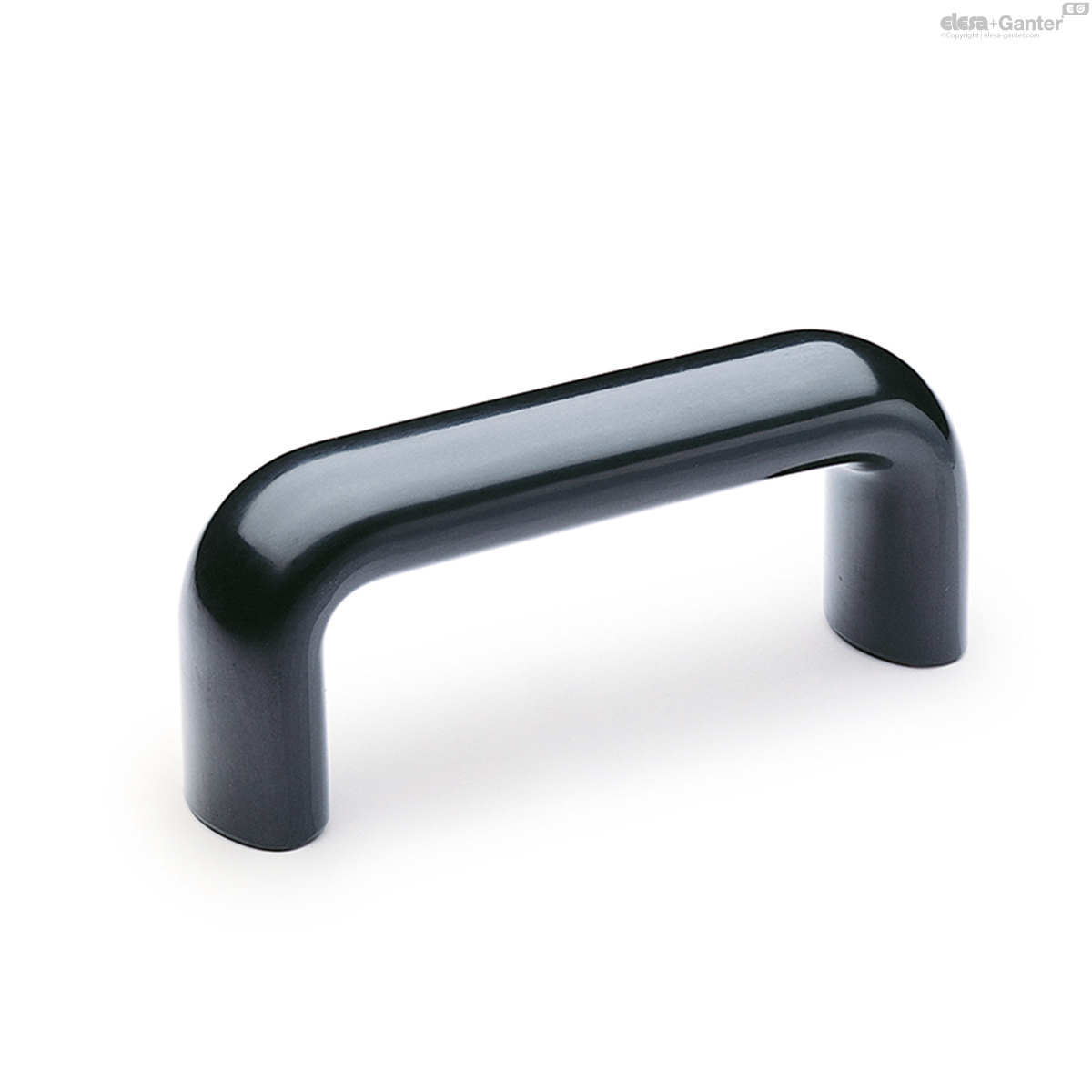

M.243/200
M.243 Beugelgrepen
Beugelgrepen
Op voorraad Alle maten en varianten van M.243
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- 36701
- L
- 198
- f
- 179±1
- d6H
- M8
- h
- 62
- B
- 20
- l
- 30
- p
- 13
- F1
[N] - 3000
- F2
[N] - 2000
- L1
[J] - 7
- L2
[J] - 8
- 206
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
Standard execution
Brass bosses, threaded blind holes.
Technical Data
Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
