MS.D5(Molla e sfera)IZN56LBR37

MS. Kogel en veer

voor bedieningselementen, roestvrij staal
  • INOX
  • RoHS

Lt: 1-2 weken Alle maten en varianten van MS.

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
35101
Omschrijving
MS.D5
d6
5
d7 -0.3
4.0

Spring

AISI 302 stainless steel.

Ball

AISI 420 stainless steel.

Features and applications

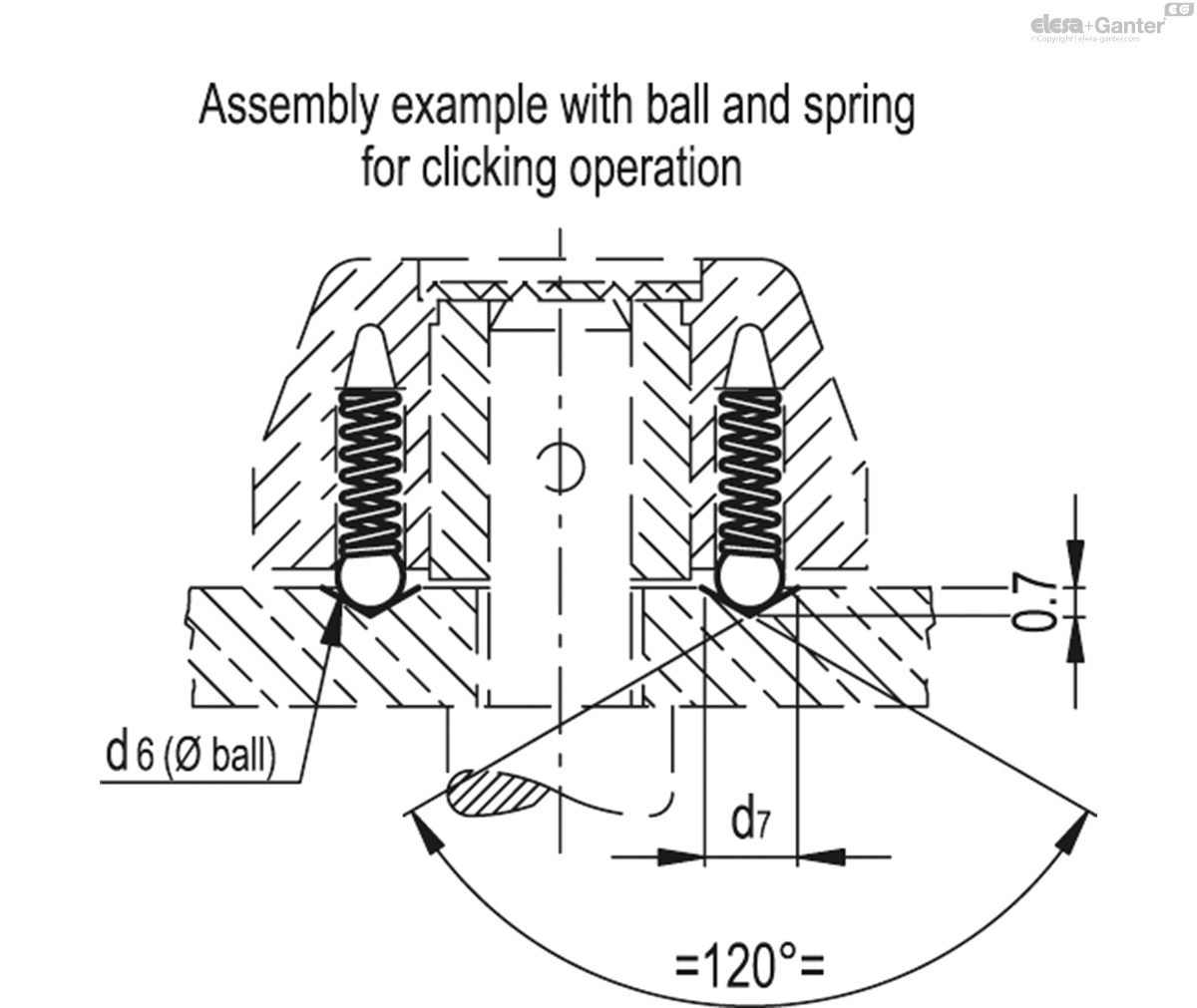

MS. group is indicated for fitting on the following operating and control knobs where clicking operation is required:
