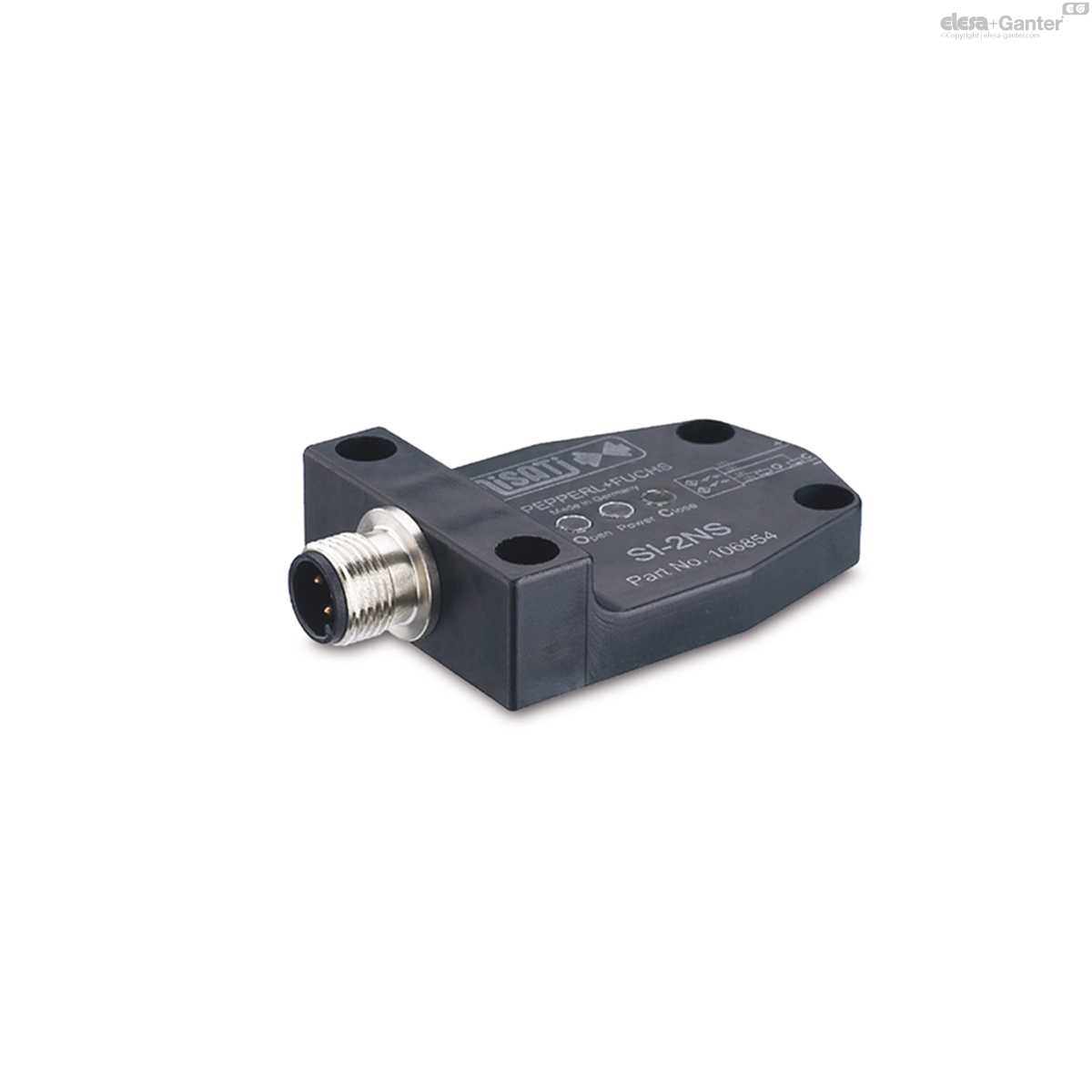

GN-893.2 Nabijheidsschakelaar
voor pneumatische bevestigingsklemmen, inductieve sensor
Lt: 1-2 weken Alle maten en varianten van GN 893.2
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 893.2
- Pneumatic fastening clamps
- GN 864-32-BL GN 865-32-BI GN 866-32-BC
- Proximity switch
- GN 893.2

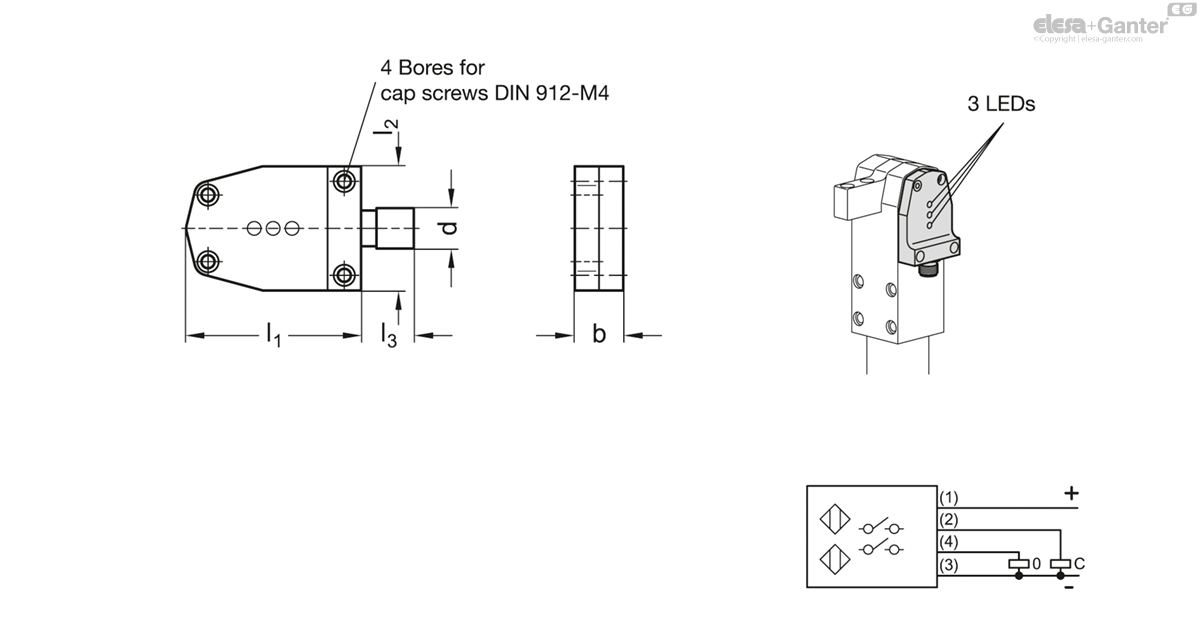

- b
- 16
- d Connector
4-pole - M 12 x 1
- l1 -0.2
- 57.5
- l2
- 41
- l3
- 10
- 32
Voltage range: 10 to 30 VDC
Switch load: 0 to 100 mA
Voltage drop: ≤ 2 V
Temperature range: 0 °C to 50 °C
Protection class: IP 65
LED-Indication:
- green: operating voltage
- red: switch position closed
- yellow: switch position open
With this GN 893.2 proximity switch pneumatic fastening clamps can induce controlled signals whereby the LEDs indicate the operating and switch positions.
The proximity switches can be screwed directly on to the pneumatic fastening clamps. The position of the switches can be on either side.
A plastic intermediate plate and two cap screws M4 are included.
