Rod end M8

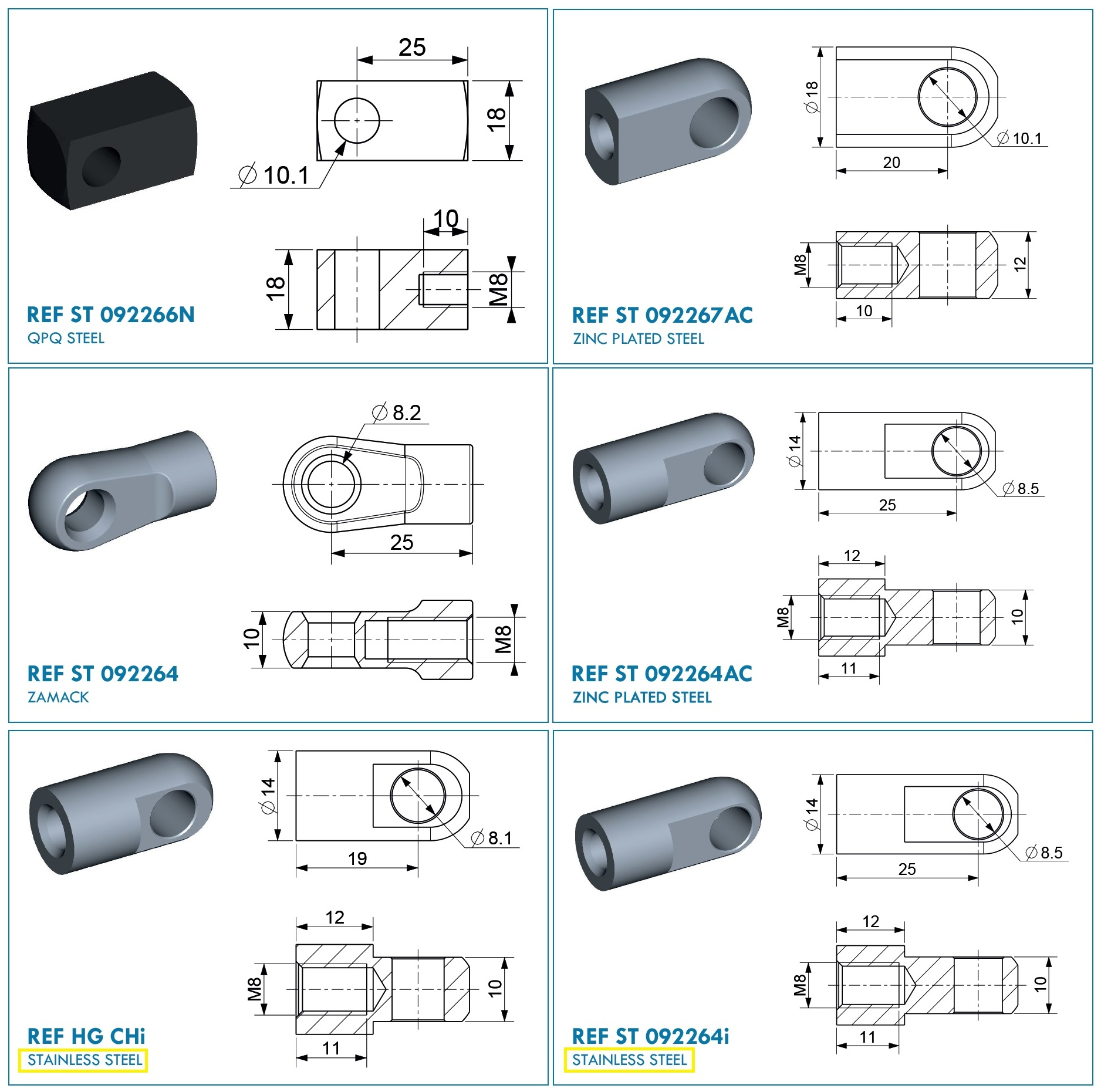

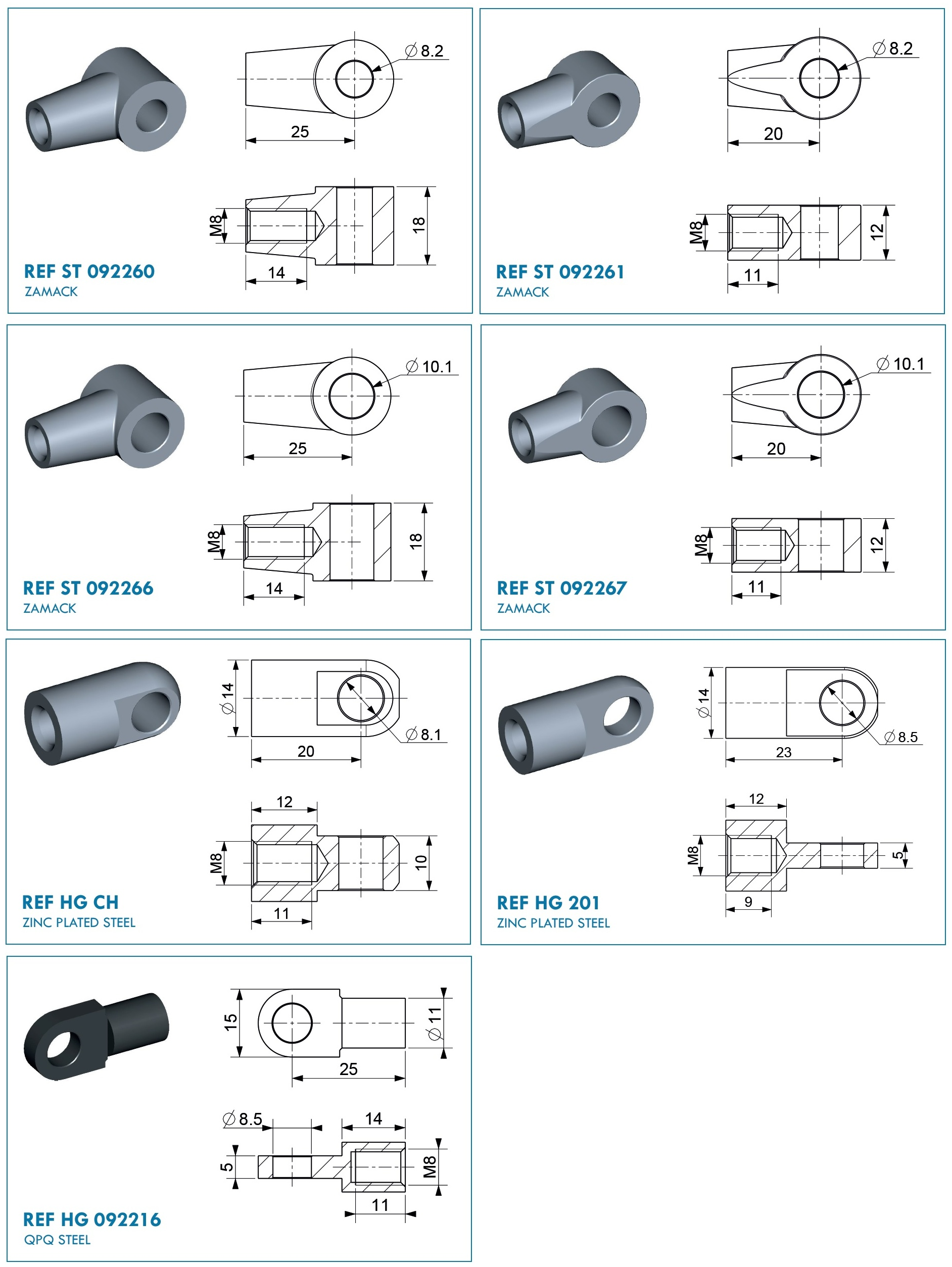

Connection M8
.png/Connection_M8.png)
|
Code
|
Description
|
Connection
|
for Ø pin
|
E
|
Material
|
|
|---|---|---|---|---|---|---|
|
ST092260 (ZD - M8 - Ø8,2 - E=25mm)
|
M8
|
8
|
25
|
Zamac
| ||
|
ST092261 (ZD - M8 - Ø8,2 - E=20mm)
|
M8
|
8
|
20
|
Zamac
| ||
|
ST092264 ( ZD - M8 -Ø8,2 - E=25mm)
|
M8
|
8
|
25
|
Zamac
| ||
|
ST092264AC ( ST - M8 -Ø8,5 - E=25mm)
|
M8
|
8
|
25
|
Zinc plated steel
| ||
|
ST092264i ( INOX - M8 -Ø8,5 - E=25mm)
|
M8
|
8
|
25
|
INOX
| ||
|
ST092266N (ST QPQ - M8-Ø10,1 - E=25mm)
|
M8
|
10
|
25
|
Steel QPQ
| ||
|
ST092266 ( ZD - M8 -Ø10,1 - E=25mm)
|
M8
|
10
|
25
|
Zamac
| ||
|
ST092267 ( ZD - M8 -Ø10,1 - E=20mm)
|
M8
|
10
|
20
|
Zamac
| ||
|
ST092267AC ( ST - M8 -Ø10,1 - E=20mm)
|
M8
|
10
|
20
|
Zinc plated steel
| ||
|
ST092267i ( INOX - M8 -Ø10,1 - E=20mm)
|
M8
|
10
|
20
|
INOX
| ||
|
HG092216 ( ST QPQ - M8 - Ø8,5 - E=25mm)
|
M8
|
8
|
25
|
Steel QPQ
| ||
|
HG201 (ST - M8 - Ø8,5 - E=23mm)
|
M8
|
8
|
23
|
Zinc plated steel
| ||
|
HGCH (ST - M8 - Ø8,1 - E=20mm)
|
M8
|
8
|
20
|
Zinc plated steel
| ||
|
HGCHi (INOX - M8 - Ø8,1 - E=19mm)
|
M8
|
8
|
19
|
INOX
|
