Technical datasheet
GN 900.1Kits de fixation
Kits de fixation
pour unités coulissantes réglables GN 900
|

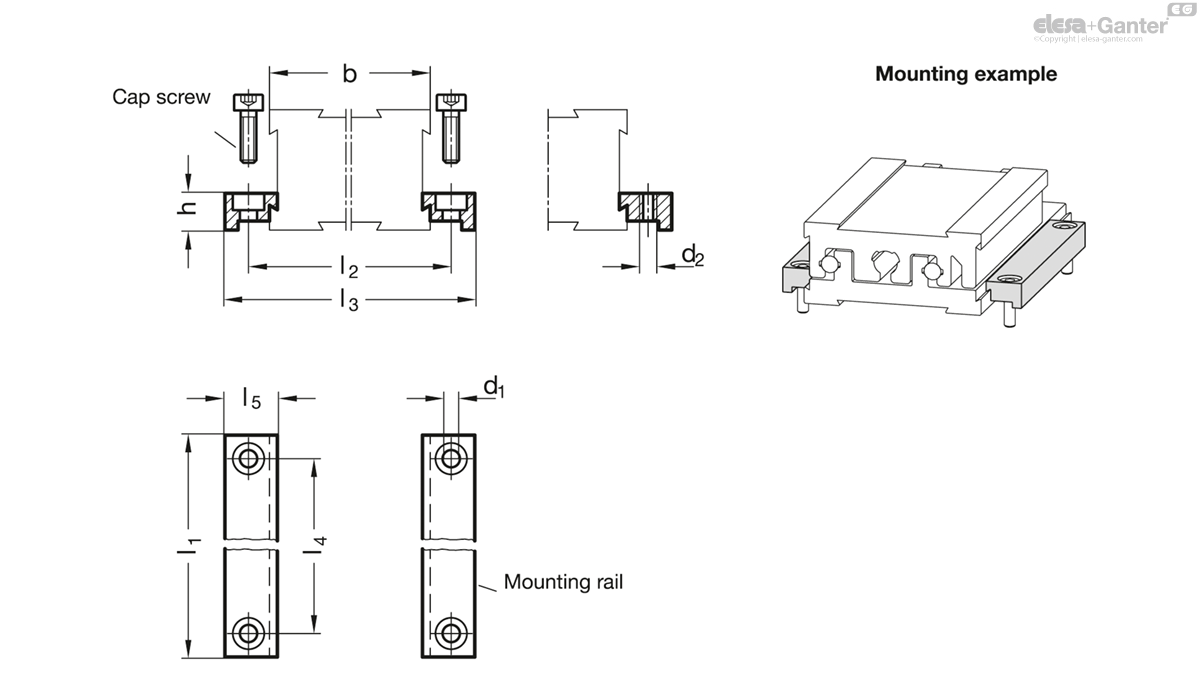

Code
|
b Size of
the slide |
l1
|
d1
|
d2
|
h
|
l2
|
l3
|
l4
|
l5
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 900.1-30-41-A
|
30
|
41
|
2.7
|
M 2.5
|
4.2
|
35.4
|
41
|
35.4
|
6.5
|
7
|
|
GN 900.1-50-67-A
|
50
|
67
|
3.3
|
M 3
|
7
|
58
|
67
|
58
|
10
|
20
|
|
GN 900.1-80-105-A
|
80
|
105
|
4.5
|
M 4
|
12.5
|
92
|
105
|
92
|
14.5
|
84
|
|
GN 900.1-120-145-A
|
120
|
145
|
5.5
|
M 5
|
13.8
|
131.8
|
145
|
131.8
|
14.5
|
134
|
|
GN 900.1-30-41-B
|
30
|
41
|
2.7
|
M 2.5
|
4.2
|
35.4
|
41
|
35.4
|
6.5
|
8
|
|
GN 900.1-50-67-B
|
50
|
67
|
3.3
|
M 3
|
7
|
58
|
67
|
58
|
10
|
24
|
|
GN 900.1-80-105-B
|
80
|
105
|
4.5
|
M 4
|
12.5
|
92
|
105
|
92
|
14.5
|
87
|
|
GN 900.1-120-145-B
|
120
|
145
|
5.5
|
M 5
|
13.8
|
131.8
|
145
|
131.8
|
14.5
|
138
|
Types
- Type A: with bore for cap screw
- Type B: with threaded bore d2
Aluminium
anodized, natural colour
Socket head cap screw DIN 912
Stainless Steel

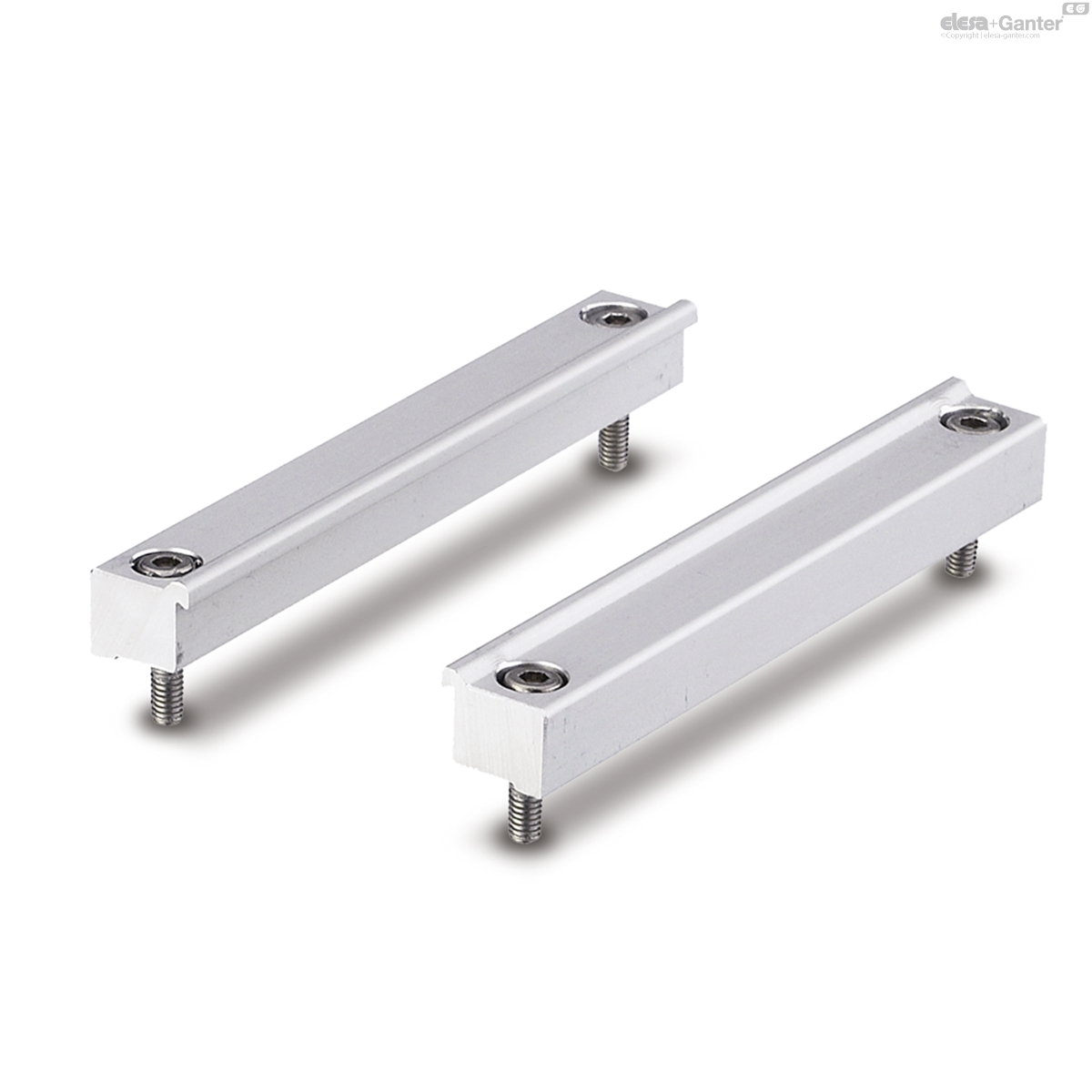

Fastening units GN 900.1 are fitted to the base of the adjustable slide units GN 900 from the operator’s side.
The mounting is made on the outside ledge of the slide so that the inner slide can still be moved.
A fastening unit GN 900.1 consists of two mounting rails. Four Stainless Steel-cap screws are inclueded.
Produits associés

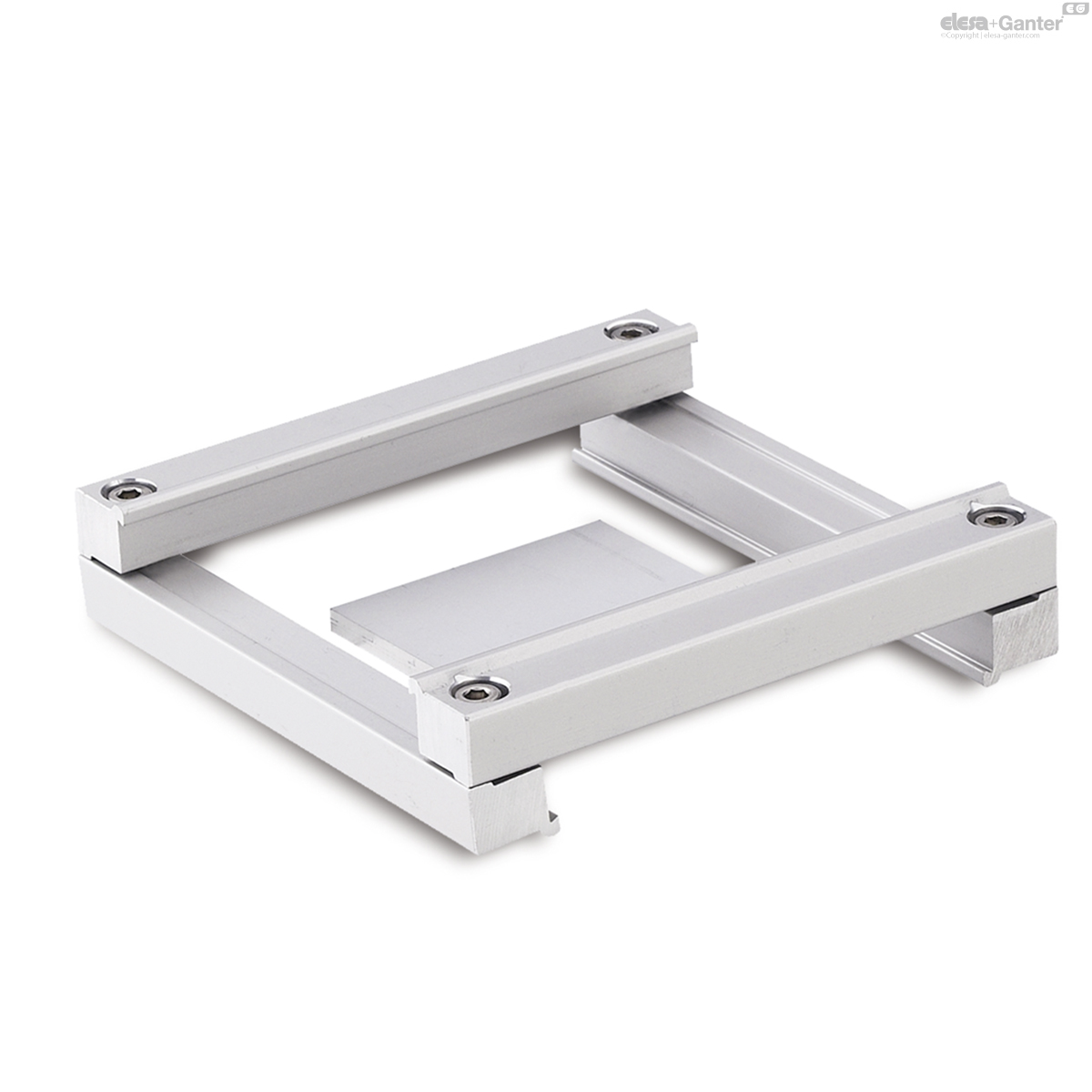

GN 900.2
Kits de connexion pour axe X-Y
pour unités coulissantes réglables GN 900

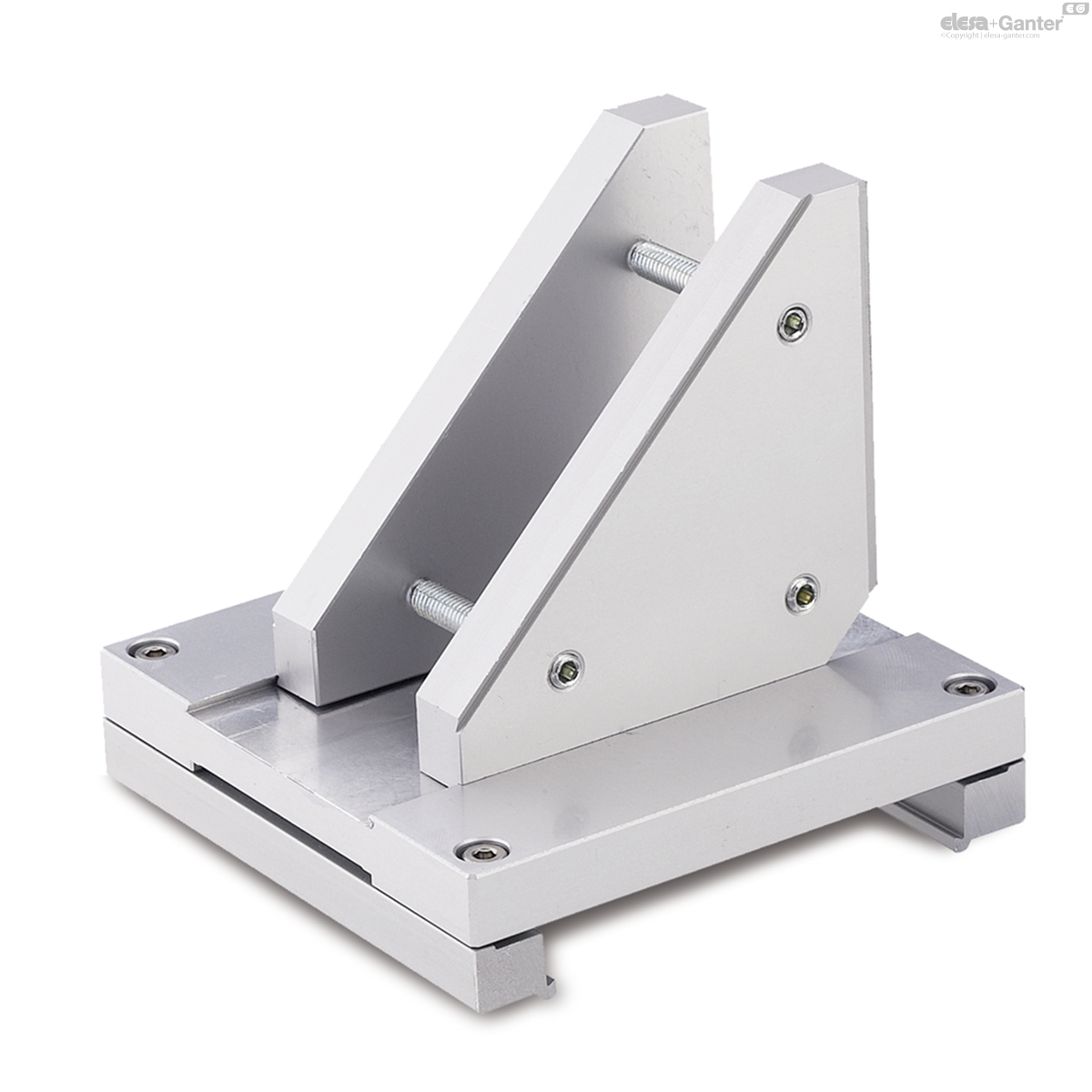

GN 900.3
Kits de connexion pour axe X-Z
pour unités coulissantes réglables GN 900

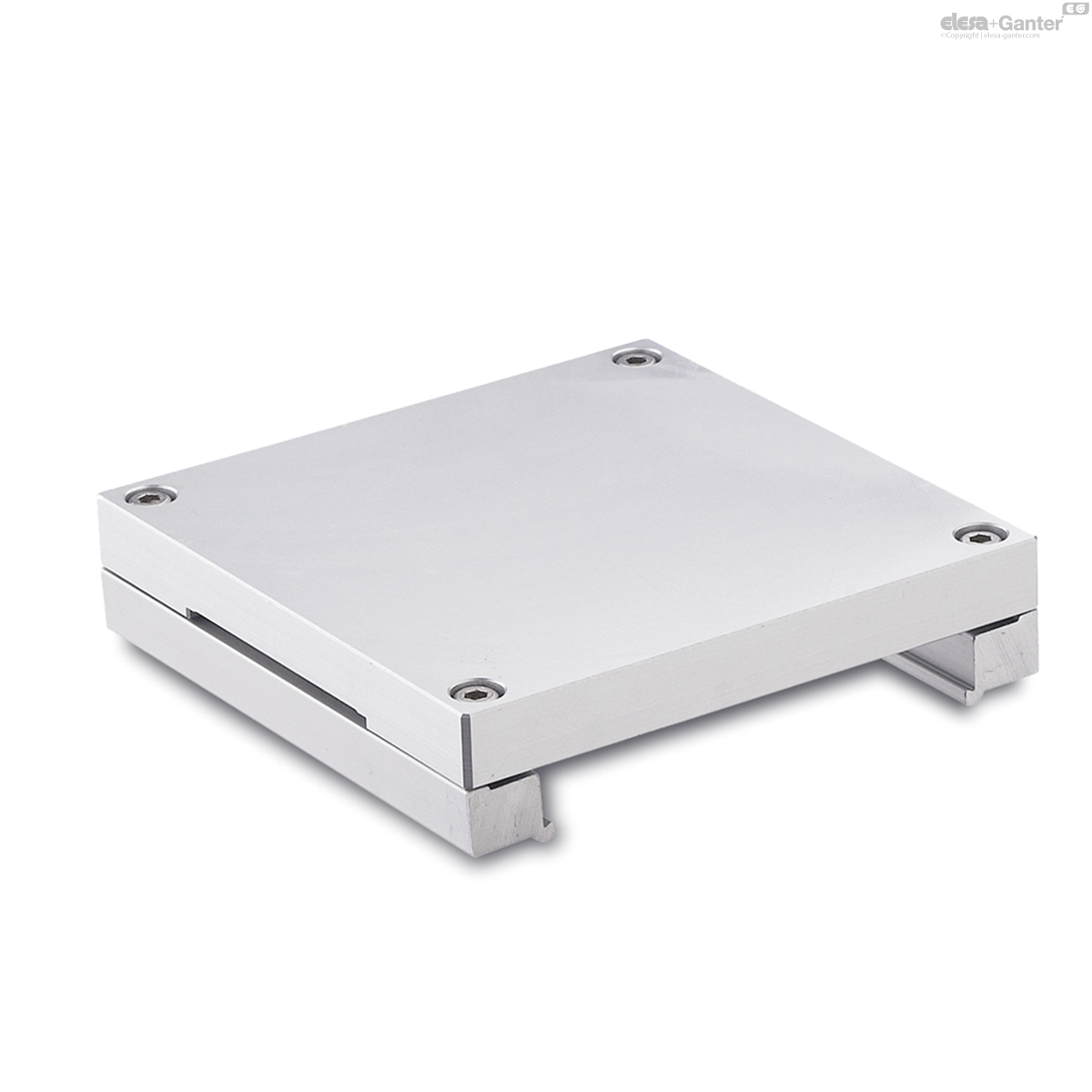

GN 900.4
Kit de montage
pour unités coulissantes réglables GN 900

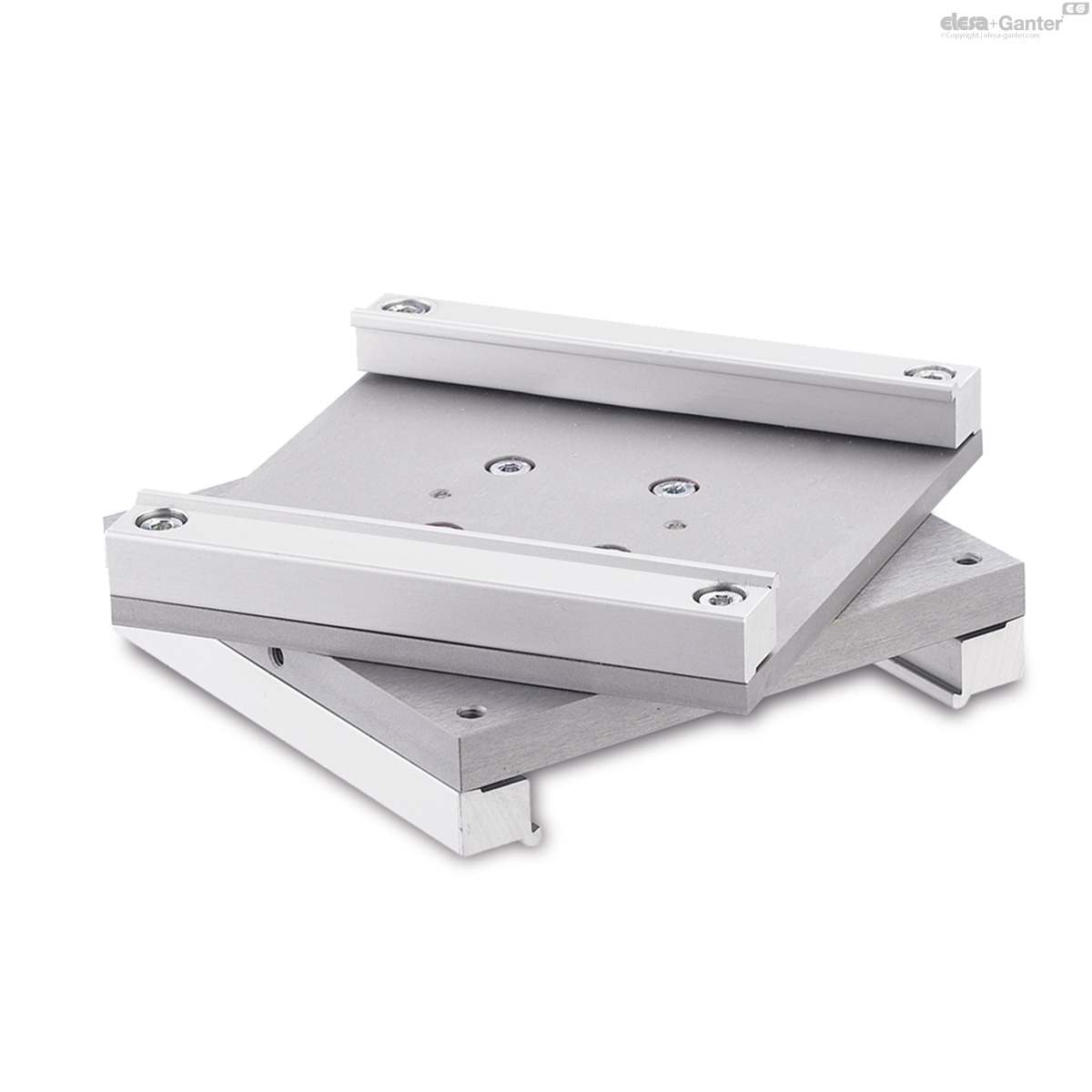

GN 900.5
Plaques rotatives
pour unités coulissantes réglables GN 900

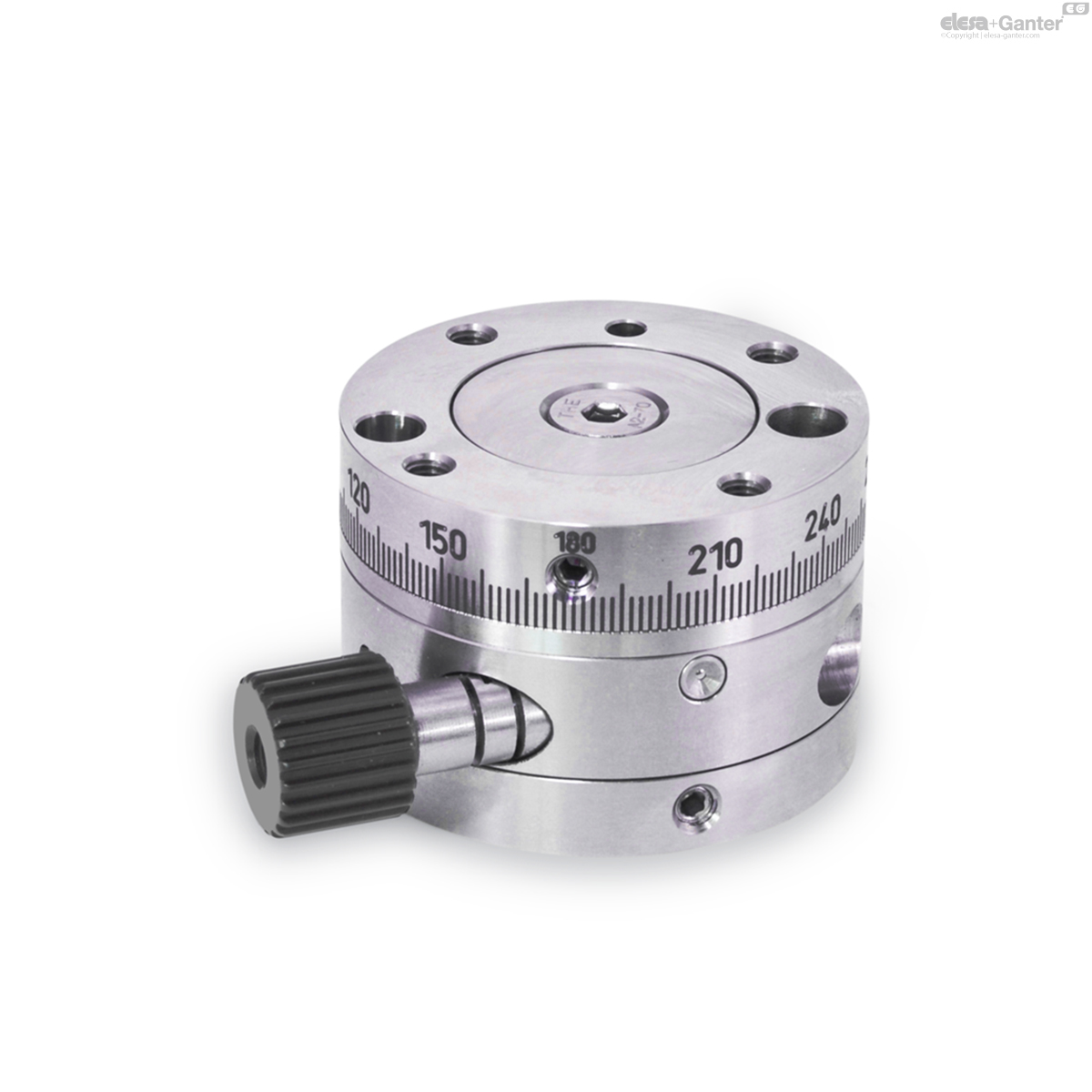

GN 900.6
