Technical datasheet
GN 864.1Cache de protection
Cache de protection
pour pinces de puissance GN 864
|
Code
|
For power clamps

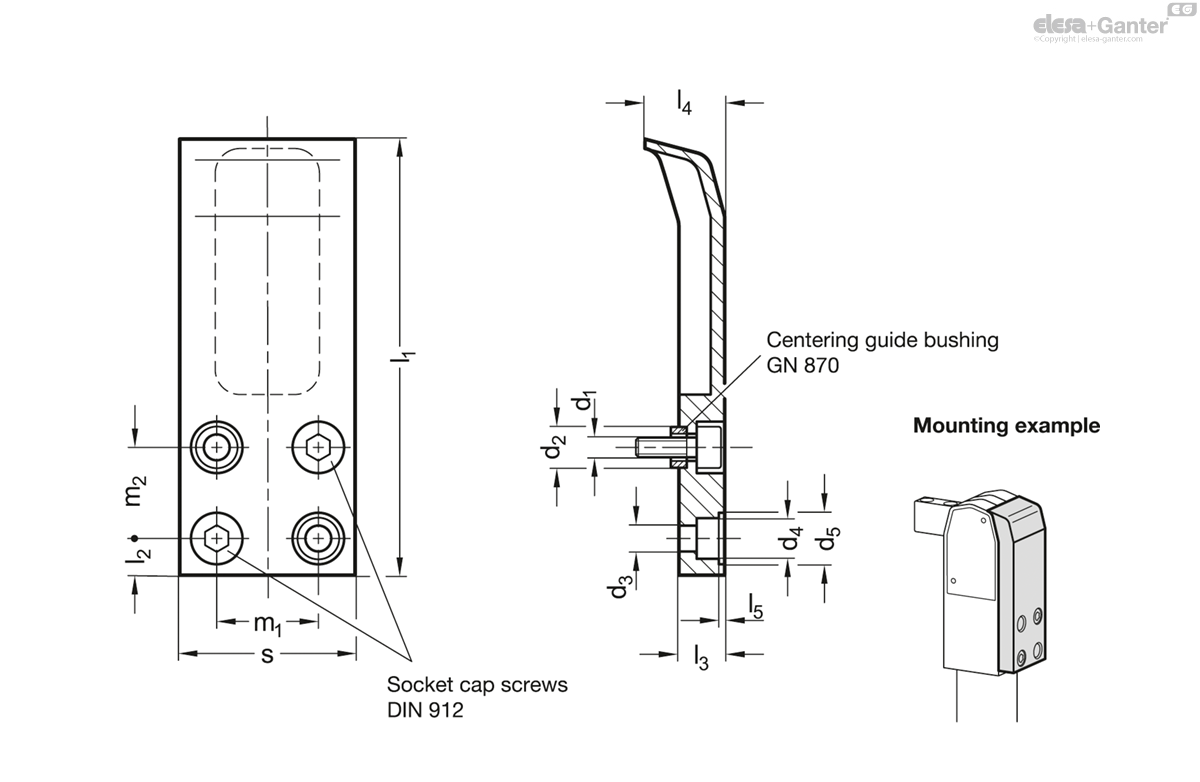

GN 864 Size |
s
|
d1
|
d2 H8/h6
|
d3
|
d4
|
d5
|
l1
|
l2
|
l3
|
l4
|
l5
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 864.1-32-ES
|
20
|
32
|
M5
|
7
|
5.5
|
7
|
9
|
76
|
5
|
10
|
15.5
|
2.1
|
|
GN 864.1-32-FG
|
20
|
32
|
M5
|
7
|
5.5
|
7
|
9
|
76
|
5
|
10
|
15.5
|
2.1
|
|
GN 864.1-42-ES
|
32
|
42
|
M6
|
9
|
6.5
|
9
|
11
|
109
|
6.5
|
12
|
20
|
2.1
|
|
GN 864.1-42-FG
|
32
|
42
|
M6
|
9
|
6.5
|
9
|
11
|
109
|
6.5
|
12
|
20
|
2.1
|
|
GN 864.1-52-ES
|
40
|
52
|
M8
|
11
|
8.5
|
11
|
13
|
131
|
7.5
|
14
|
23
|
2.1
|
|
GN 864.1-52-FG
|
40
|
52
|
M8
|
11
|
8.5
|
11
|
13
|
131
|
7.5
|
14
|
23
|
2.1
|
|
GN 864.1-62-ES
|
50
|
62
|
M10
|
13
|
10.5
|
13
|
16
|
162
|
9
|
16
|
27
|
3.1
|
|
GN 864.1-62-FG
|
50
|
62
|
M10
|
13
|
10.5
|
13
|
16
|
162
|
9
|
16
|
27
|
3.1
|
Aluminum
- black anodized ES
- anti-stick coating, fluoropolymer (PTFE), green FG
Socket cap screws DIN 912,
centering guide bushings
Steel, blackened

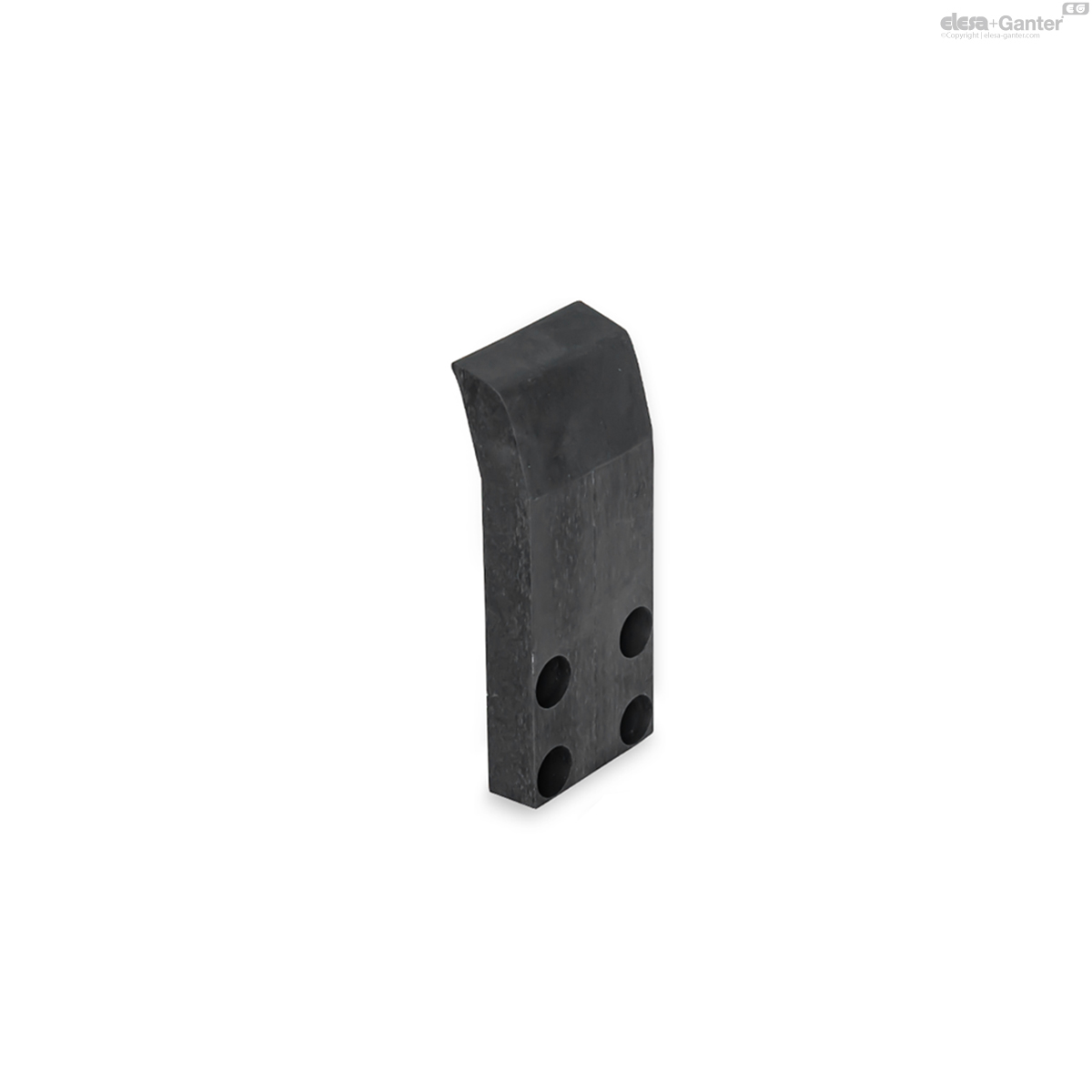

Protective covers GN 864.1 are designed for power clamps GN 864 and protect the tensioning mechanism from penetrating dirt by covering the back side of the power clamp.
The type FG is equipped with an anti-stick coating of fluoropolymer (PTFE) for protection against welding spray and corrosion.
Socket cap screws and centering guide bushings are included.
