en forme de disque, avec 2 filetages femelles, avec gaine en caoutchouc
|
Code
|
d1
|
m
|
d2
|
d3
|
h
|
t min.
|
Nominal adhesive forces in N
|
|
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
GN 51.6-ND-43-22-M4
|
43
|
22
|
M 4
|
39
|
10.3
|
6
|
85
|
37
|
|
GN 51.6-ND-43-27-M5
|
43
|
27
|
M 5
|
39
|
10.3
|
7
|
85
|
36
|
|
GN 51.6-ND-57-32-M6
|
57
|
32
|
M 6
|
53
|
11.3
|
7
|
175
|
87
|
|
GN 51.6-ND-57-36-M6
|
57
|
36
|
M 6
|
53
|
11.3
|
7
|
175
|
87
|
Steel part
zinc plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
80 shore A ≈
black

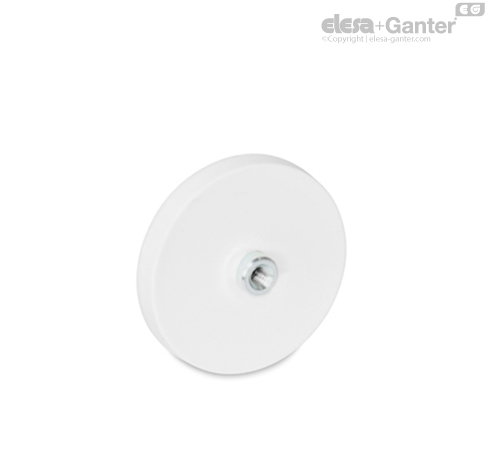

Retaining magnets GN 51.6 are a shielded magnetic system with rubber jacket.
The rubber jacket protects sensitive surfaces from being damaged by the magnet and also delivers a higher friction coefficient, resulting in high lateral adhesion forces.
Its dimensions, especially the drill hole spacing m and the thread d2, match the clamp mountings GN 473, GN 477 and GN 480.
