Technical datasheet

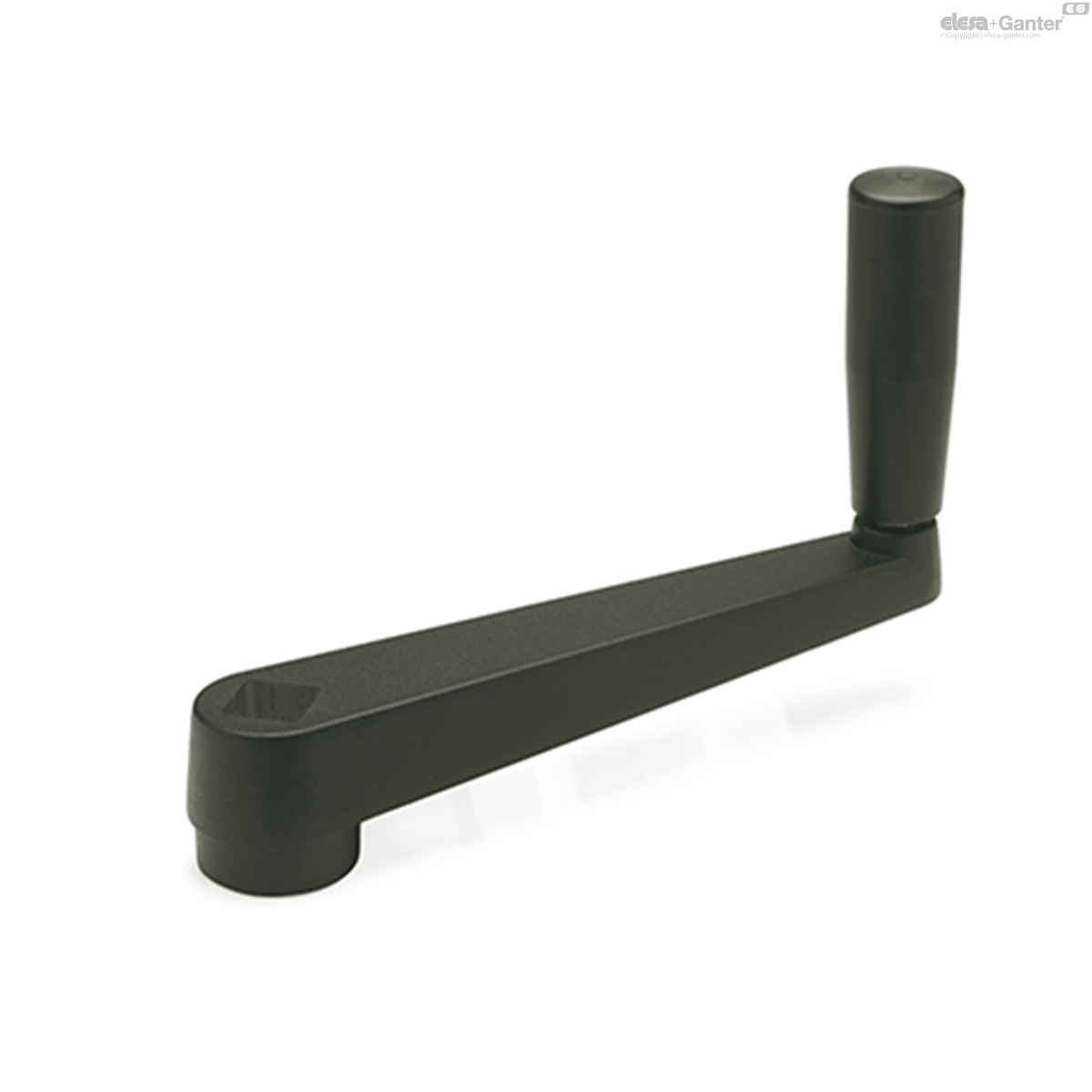

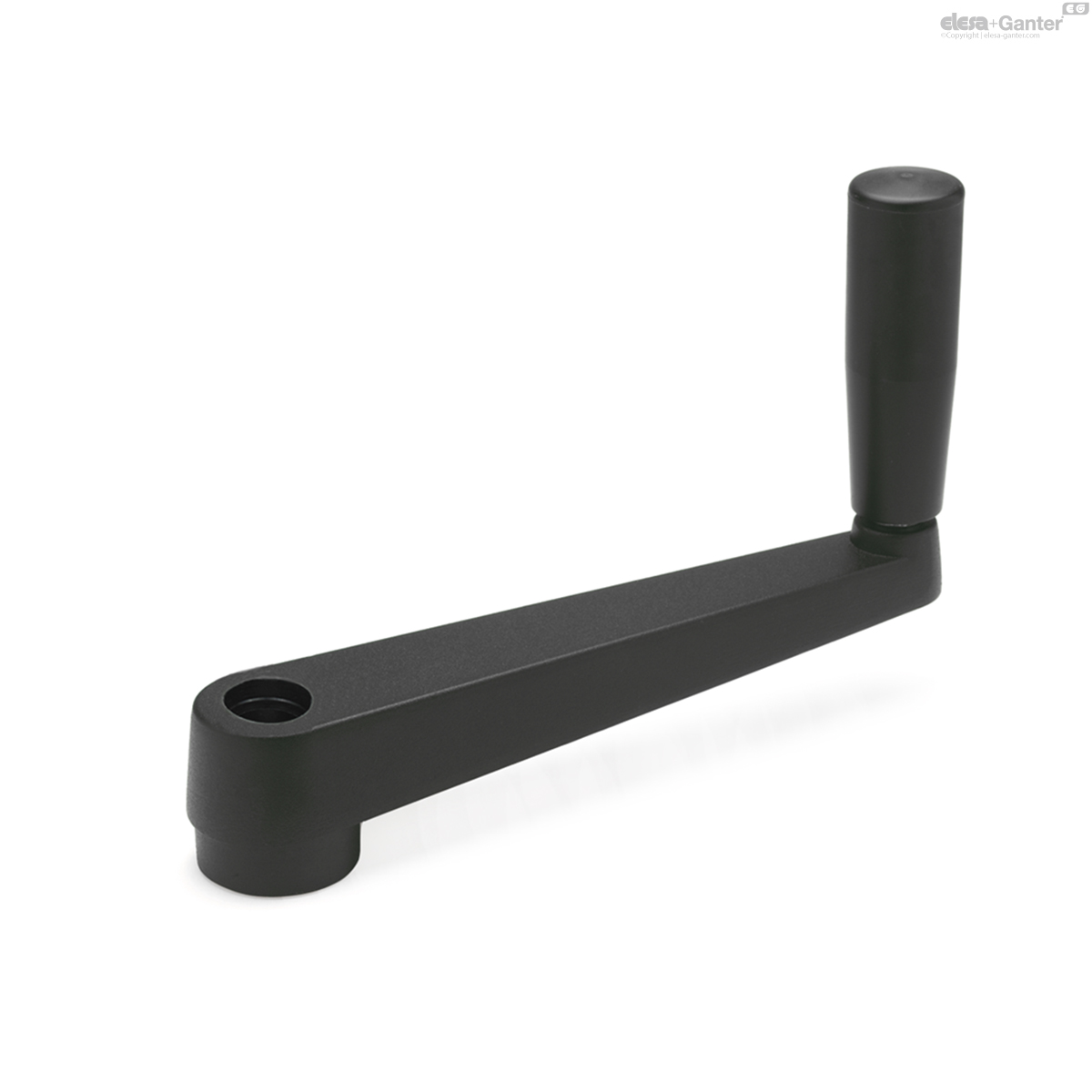

GN 471-SManivelles droites
Carré
Aluminium
GN 471-S
|

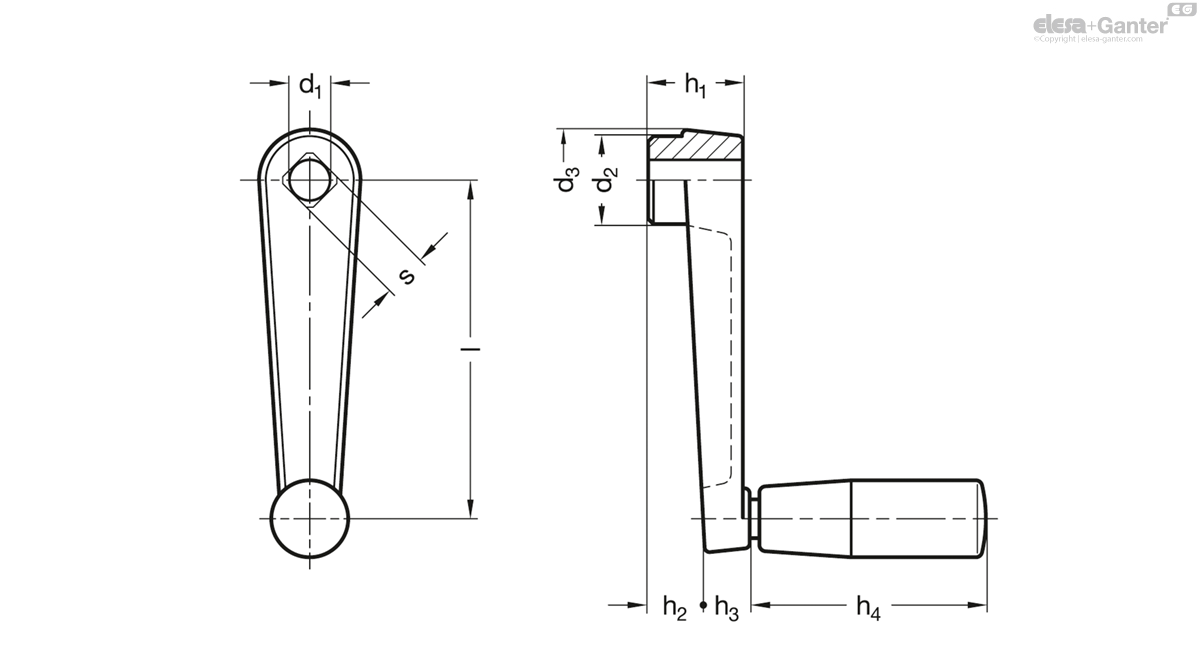

Code
|
Length l
|
s H11 Square
|
d2
|
d3
|
h1
|
h2
|
h3
|
h4 ≈
|
Ø Handle
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
80
|
V 10
|
23
|
26
|
24
|
14
|
14
|
52.5
|
21
|
89
| ||
|
100
|
V 12
|
27
|
30
|
28
|
17
|
15
|
67.5
|
23
|
155
| ||
|
125
|
V 14
|
32
|
35
|
34
|
22
|
18
|
82.5
|
26
|
240
| ||
|
160
|
V 17
|
35
|
39
|
38
|
26
|
18
|
82.5
|
26
|
270
|
Body
Aluminum
- Powder coated
- Black, textured finish
- Contact face of hub machined
Revolving handles
Plastic, Polypropylen (PP)
- Black, matte finish
- Spindle steel
- Zinc plated, blue passivated
Cranked handles GN 471 are used for making adjustments or driving mechanisms.
The crank movement is transmitted via the revolving cylindrical handle. The revolving handle body can be held firmly and securely while cranking.
Cranked handles can also be ordered with cross holes GN 110.
