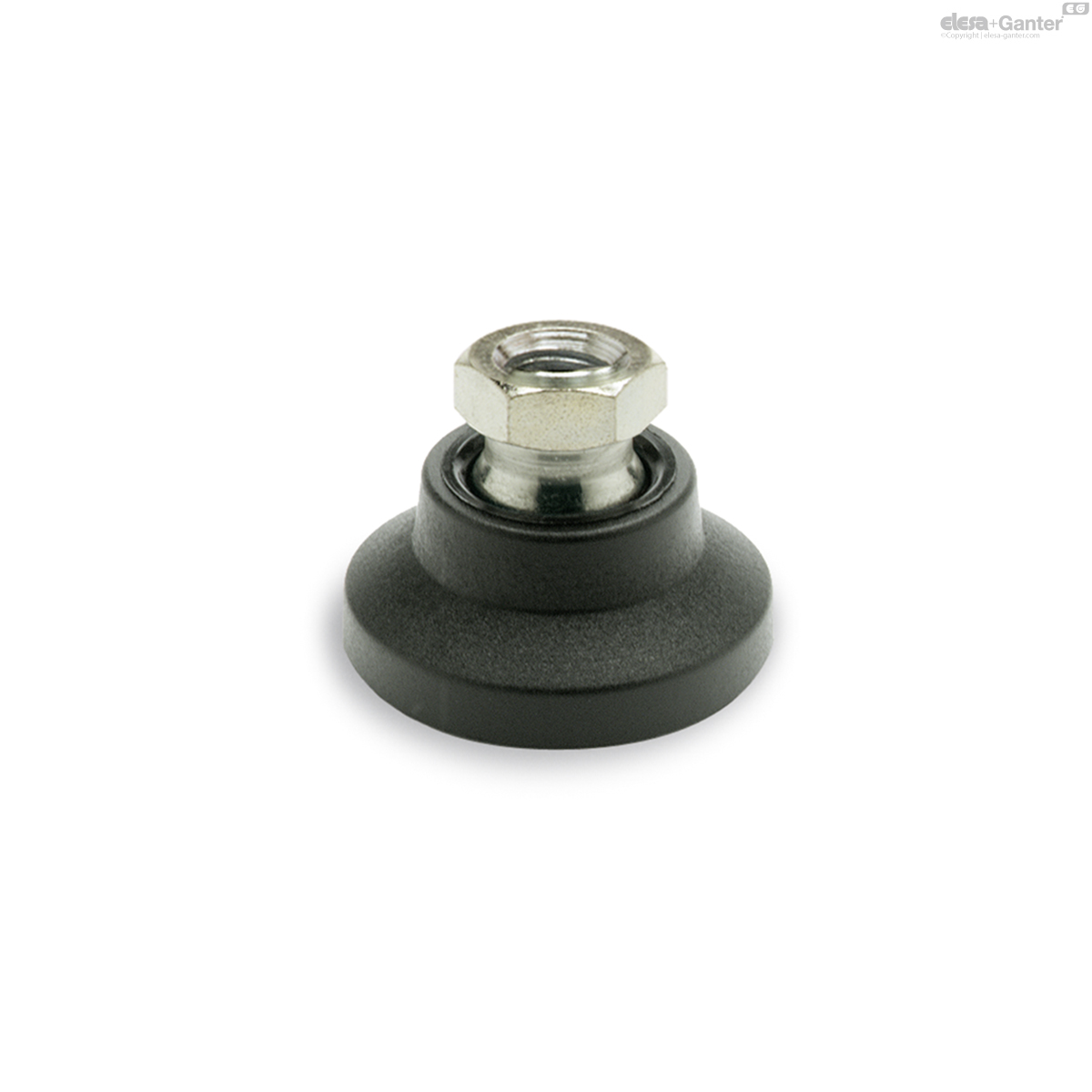

GN 343.7Pieds de nivellement

Pieds de nivellement

Pied plastique / filetage femelle Inox

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Pieds de nivellement
Pieds de nivellement

GN 343.7

Réinitialiser
Code

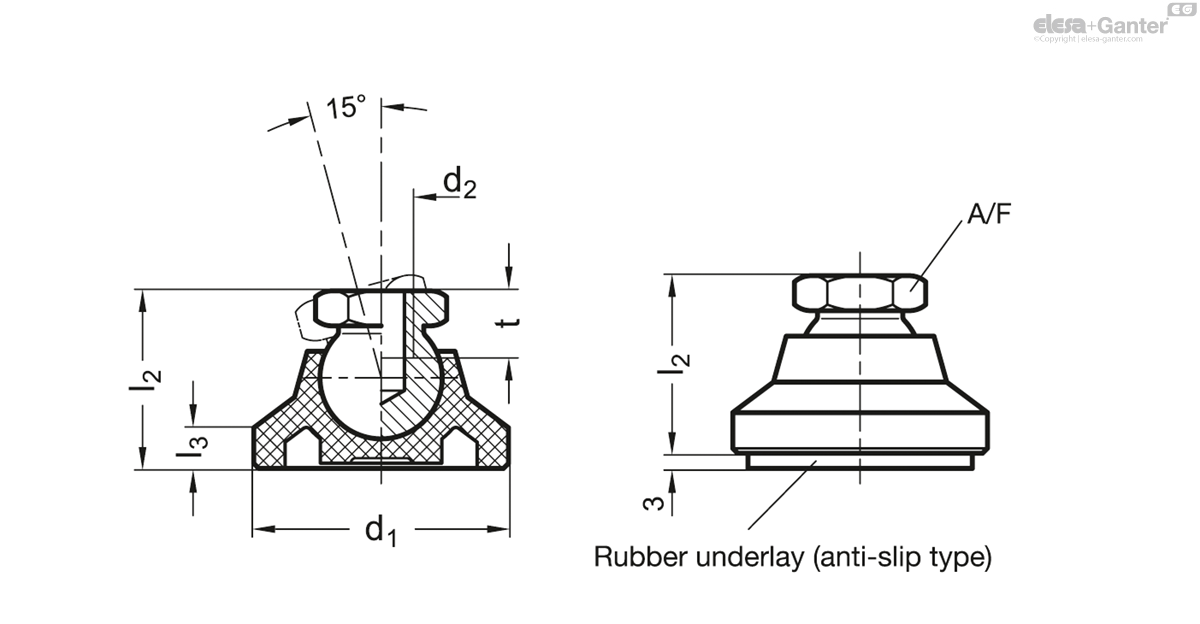

d1
d2
l2
l3
A/F
t min.
Static load
in kN
GN 343.7-25-M6-A
25
M 6
18.5
4
12
9
5
14
GN 343.7-25-M8-A
25
M 8
18.5
4
12
9
5
14
GN 343.7-32-M8-A
32
M 8
22.5
5
12
9
7
15
GN 343.7-32-M10-A
32
M 10
22.5
5
15
10.5
7
22
GN 343.7-40-M10-A
40
M 10
25.5
6
15
10.5
10
26
GN 343.7-40-M12-A
40
M 12
25.5
6
17
11.5
10
33
GN 343.7-50-M10-A
50
M 10
27.5
7
15
10.5
10
24
GN 343.7-50-M12-A
50
M 12
27.5
7
17
11.5
10
39
GN 343.7-60-M12-A
60
M 12
35.5
8.5
17
11.5
14
39
GN 343.7-60-M16-A
60
M 16
35.5
8.5
24
16
14
78
GN 343.7-25-M6-G
25
M 6
18.5
4
12
9
5
18
GN 343.7-25-M8-G
25
M 8
18.5
4
12
9
5
16
GN 343.7-32-M8-G
32
M 8
22.5
5
12
9
7
20
GN 343.7-32-M10-G
32
M 10
22.5
5
15
10.5
7
26
GN 343.7-40-M10-G
40
M 10
25.5
6
15
10.5
10
35
GN 343.7-40-M12-G
40
M 12
25.5
6
17
11.5
10
39
GN 343.7-50-M10-G
50
M 10
27.5
7
15
10.5
10
44
GN 343.7-50-M12-G
50
M 12
27.5
7
17
11.5
10
49
GN 343.7-60-M12-G
60
M 12
35.5
8.5
17
11.5
14
69
GN 343.7-60-M16-G
60
M 16
35.5
8.5
24
16
14
100

Types

  • Type A: without rubber underlay
  • Type G: with rubber underlay

Foot: Plastic (Polyamide PA)

  • glass, fibre reinforced
  • black, matt
  • temperature resistant up to 100 °C

Female thread

Stainless Steel AISI 303

Rubber underlay (NBR)

70 Shore A, black

Levelling feet GN 343.7 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

Exceeding the static values specified in the table could lead to failure of the plastic component.

The values have been arrived at by a series of load tests whereby a defined number of levelling feet were subjected to a vertical load over a defined period.

Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Levelling feet GN 343.7 are supplied assembled, but are removable.

  • ESD version (conductive plastic cap to avoid electrostatic charging)
