Technical datasheet

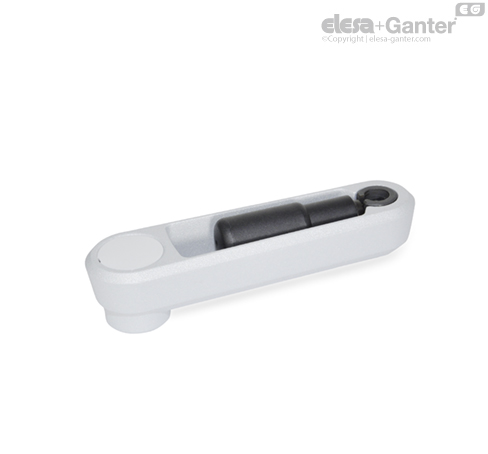

GN 269-BPoignées à manivelle
Alésage
Acier inoxydable
|
Code
|
Length l
|
d1 H9
Bore |
d2
|
h1
|
h2 ≈
|
h3
|
h4 ≈
|
Ø Handle
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 269-80-B10
|
80
|
B 10
|
22
|
22
|
15.4
|
6.6
|
45
|
18
|
130
|
|
GN 269-100-B12
|
100
|
B 12
|
26
|
26
|
17.7
|
8.3
|
55
|
21
|
200
|
|
GN 269-125-B14
|
125
|
B 14
|
28
|
28
|
18.8
|
9.2
|
71
|
23
|
300
|
|
GN 269-160-B17
|
160
|
B 17
|
32
|
32
|
22.6
|
9.4
|
71
|
23
|
396
|
|
GN 269-200-B19
|
200
|
B 19
|
38
|
38
|
28
|
9.4
|
71
|
23
|
546
|
Body
Body
Stainless steel precision casting AISI CF-8
Contact face of hub machined
Revolving handle
Revolving handle
Plastic, phenolic resin (PF)
- Black, shiny finish
- Spindle
- Stainless steel AISI 304
Cranked handles GN 269 have been designed to comply with stringent hygiene requirements.
The cylindrical handles are made of phenolic resin material which in general provides good stability when exposed to chemicals.
- With retractable handle GN 798.5
