Technical datasheet

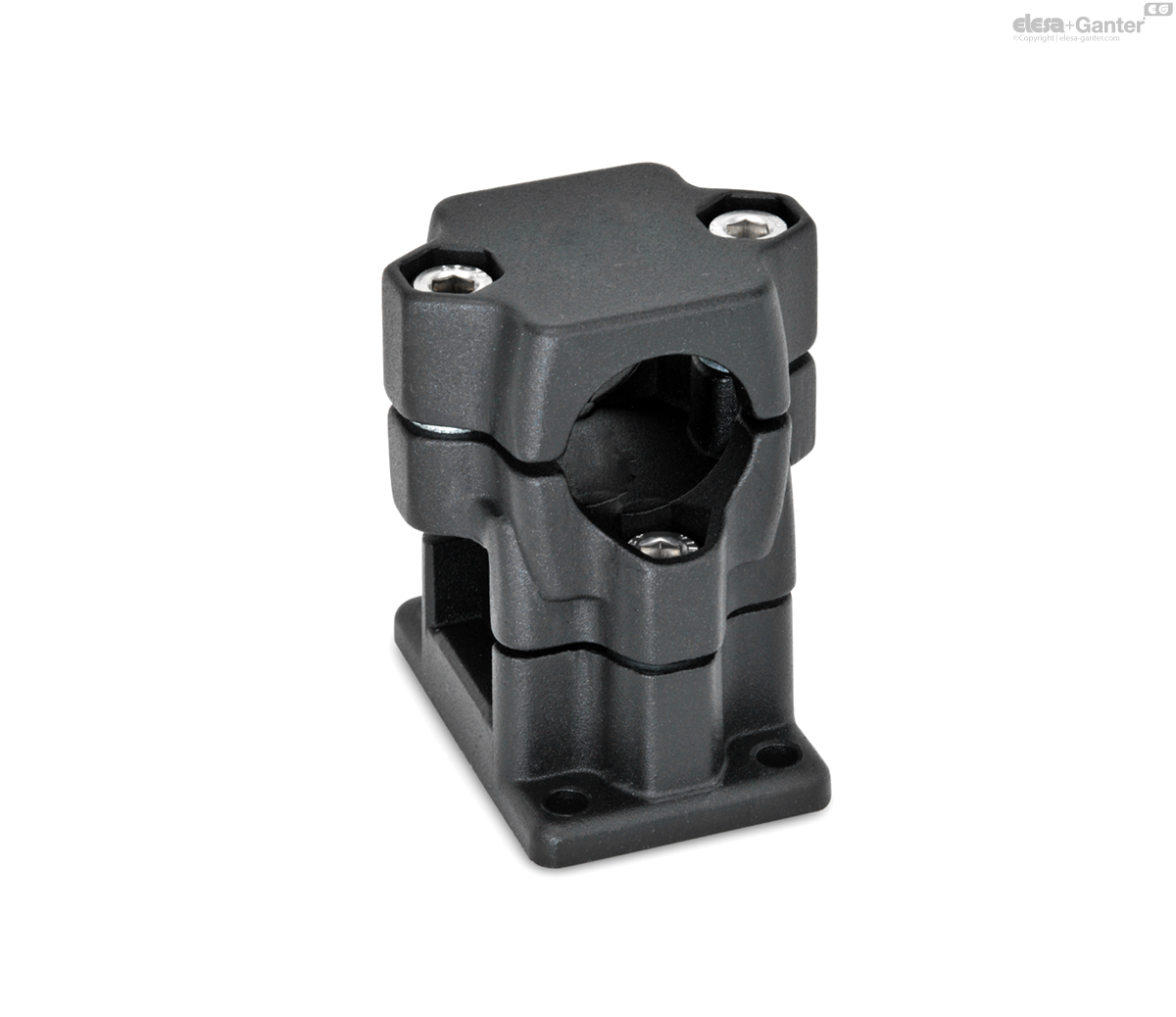

GN 141-B-SNoix de serrage orthogonales avec embase
Carré d'alésage
Aluminium / assemblage en plusieurs parties
GN 141-B-S
|
Code
|
d1
Bore |
s2 Square
|
d3
|
k Clamping length
|
l1
|
l2
|
l3
|
m
|
t
|
x1
|
x2
|
y1
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 141-B20-V20-2-BL
|
B 20
|
V 20
|
6.5
|
50
|
86
|
30
|
68
|
33.5
|
7
|
75
|
60
|
50
|
|
GN 141-B25-V25-2-BL
|
B 25
|
V 25
|
6.5
|
50
|
86
|
30
|
68
|
33.5
|
7
|
75
|
60
|
50
|
|
GN 141-B30-V30-2-BL
|
B 30
|
V 30
|
6.5
|
50
|
86
|
30
|
68
|
33.5
|
7
|
75
|
60
|
50
|
|
GN 141-B40-V40-2-BL
|
B 40
|
V 40
|
11
|
76
|
136
|
46
|
98
|
55
|
14
|
115
|
90
|
76
|
|
GN 141-B45-V45-2-BL
|
B 45
|
V 45
|
11
|
76
|
136
|
46
|
98
|
55
|
14
|
115
|
90
|
76
|
|
GN 141-B50-V50-2-BL
|
B 50
|
V 50
|
11
|
76
|
136
|
46
|
98
|
55
|
14
|
115
|
90
|
76
|
Identification no.
- No. 2: With 4 stainless steel socket cap screws ISO 4762
Connector clamp
Aluminum
- Powder coated
- Black, RAL 9005, textured finish SW
- Plain finish, matte shot-blasted BL
Socket cap screws ISO 4762
Stainless steel
Hex nuts DIN 985
Stainless steel
Self-locking via polyamide ring
The clamping bores of flanged two-way connector clamps GN 141 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
The versions with square bores are also suitable for use with profile systems.
At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screws z1, can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
- GN 911 Adjustable Hand levers
