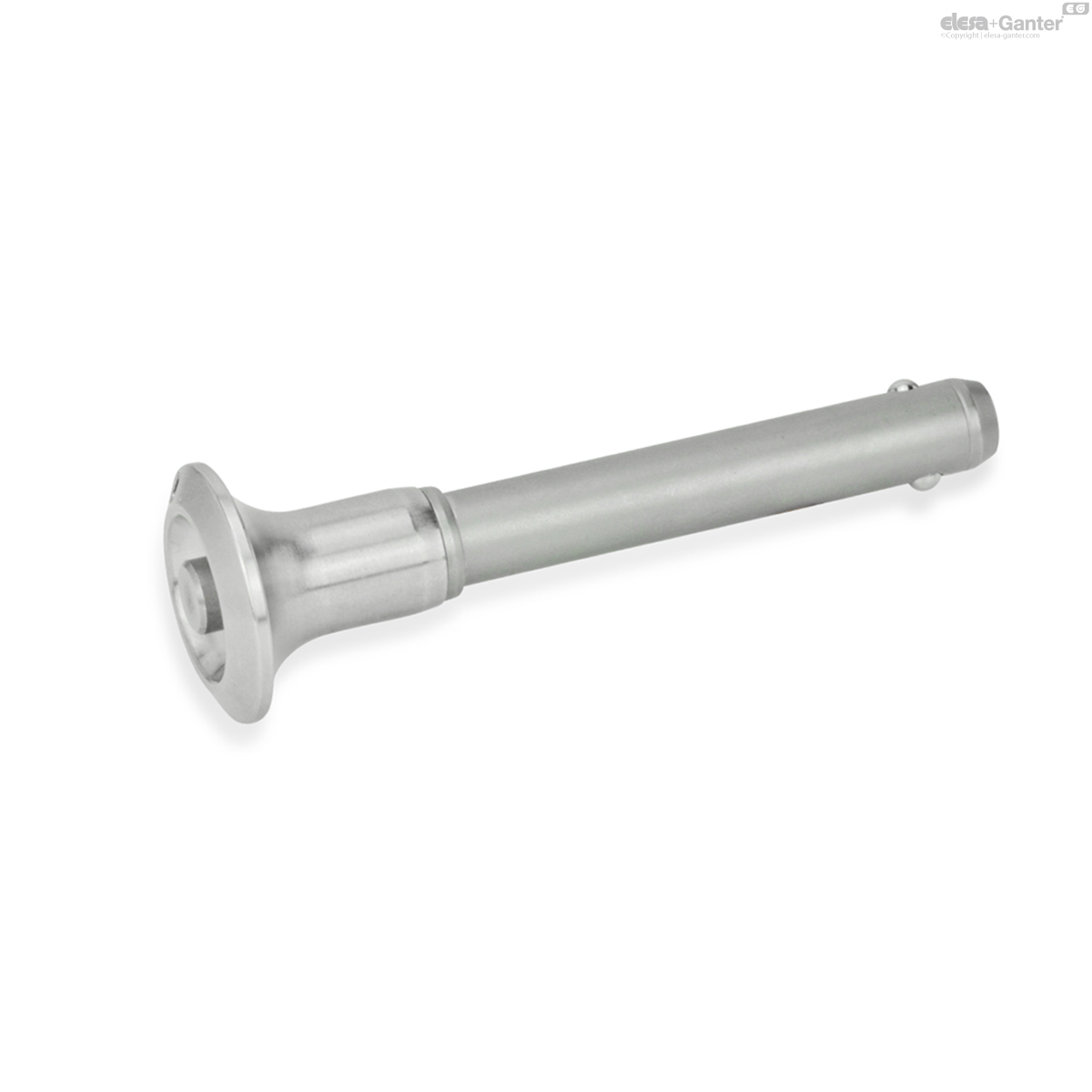

GN 113.10Broches à billes en inox

Broches à billes en inox

avec bouton en acier inoxydable

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Broches à billes en inox
Broches à billes en inox

GN 113.10

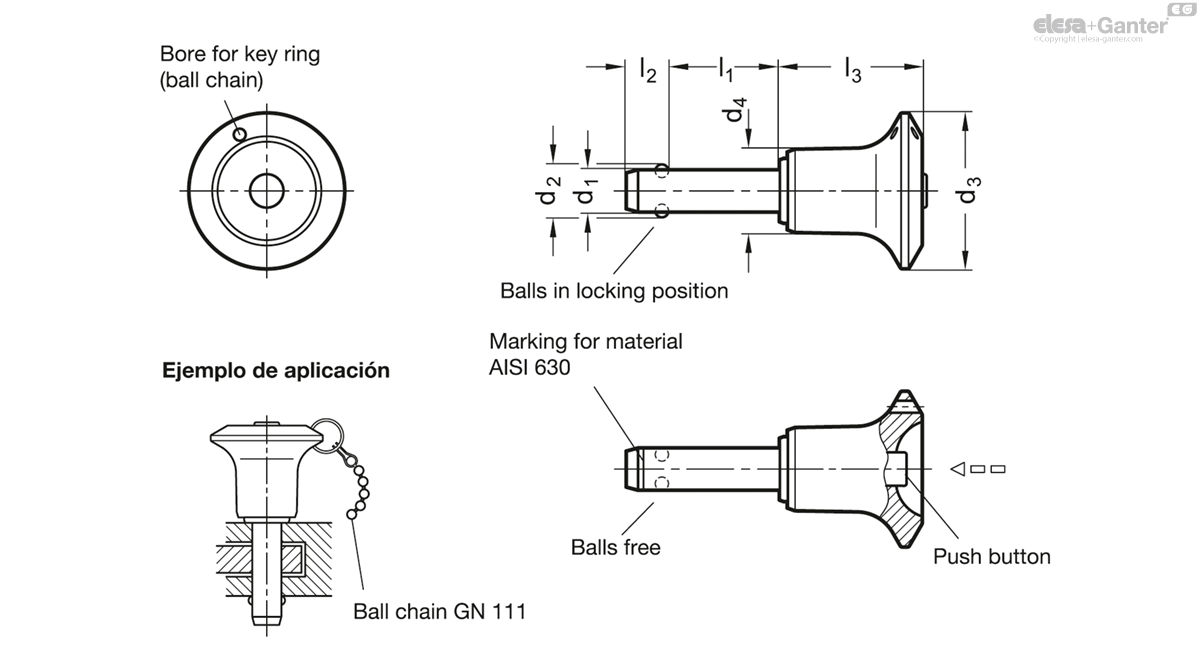

Code
d1 -0.04/-0.08
l1 +0.6
d2
d3
d4
l2 ±1
l3 -0.2
Location
bore H11
Load F in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength)
5
10
5.5
23
10.2
6
20.2
5
24
23
5
15
5.5
23
10.2
6
20.2
5
24
24
5
20
5.5
23
10.2
6
20.2
5
24
25
5
25
5.5
23
10.2
6
20.2
5
24
25
5
30
5.5
23
10.2
6
20.2
5
24
26
5
35
5.5
23
10.2
6
20.2
5
24
27
5
40
5.5
23
10.2
6
20.2
5
24
27
5
45
5.5
23
10.2
6
20.2
5
24
28
5
50
5.5
23
10.2
6
20.2
5
24
29
5
60
5.5
23
10.2
6
20.2
5
24
30
5
70
5.5
23
10.2
6
20.2
5
24
32
5
80
5.5
23
10.2
6
20.2
5
24
33
6
10
7
23
10.2
7
20.2
6
35
24
6
15
7
23
10.2
7
20.2
6
35
25
6
20
7
23
10.2
7
20.2
6
35
26
6
25
7
23
10.2
7
20.2
6
35
27
6
30
7
23
10.2
7
20.2
6
35
28
6
35
7
23
10.2
7
20.2
6
35
28
6
40
7
23
10.2
7
20.2
6
35
30
6
45
7
23
10.2
7
20.2
6
35
31
6
50
7
23
10.2
7
20.2
6
35
32
6
60
7
23
10.2
7
20.2
6
35
34
6
70
7
23
10.2
7
20.2
6
35
36
6
80
7
23
10.2
7
20.2
6
35
38
8
10
9.5
27
13.2
8.2
26.8
8
63
42
8
15
9.5
27
13.2
8.2
26.8
8
63
44
8
20
9.5
27
13.2
8.2
26.8
8
63
45
8
25
9.5
27
13.2
8.2
26.8
8
63
48
8
30
9.5
27
13.2
8.2
26.8
8
63
50
8
35
9.5
27
13.2
8.2
26.8
8
63
52
8
40
9.5
27
13.2
8.2
26.8
8
63
54
8
45
9.5
27
13.2
8.2
26.8
8
63
55
8
50
9.5
27
13.2
8.2
26.8
8
63
56
8
60
9.5
27
13.2
8.2
26.8
8
63
60
8
70
9.5
27
13.2
8.2
26.8
8
63
65
8
80
9.5
27
13.2
8.2
26.8
8
63
69
8
90
9.5
27
13.2
8.2
26.8
8
63
72
8
100
9.5
27
13.2
8.2
26.8
8
63
76
10
15
12
27
13.2
9.6
26.8
10
100
50
10
20
12
27
13.2
9.6
26.8
10
100
52
10
25
12
27
13.2
9.6
26.8
10
100
56
10
30
12
27
13.2
9.6
26.8
10
100
59
10
35
12
27
13.2
9.6
26.8
10
100
62
10
40
12
27
13.2
9.6
26.8
10
100
65
10
45
12
27
13.2
9.6
26.8
10
100
67
10
50
12
27
13.2
9.6
26.8
10
100
70
10
60
12
27
13.2
9.6
26.8
10
100
76
10
70
12
27
13.2
9.6
26.8
10
100
82
10
80
12
27
13.2
9.6
26.8
10
100
88
10
90
12
27
13.2
9.6
26.8
10
100
93
10
100
12
27
13.2
9.6
26.8
10
100
100
10
110
12
27
13.2
9.6
26.8
10
100
106
10
120
12
27
13.2
9.6
26.8
10
100
111
12
20
14.5
31
16.4
10.6
32.7
12
144
83
12
25
14.5
31
16.4
10.6
32.7
12
144
87
12
30
14.5
31
16.4
10.6
32.7
12
144
91
12
35
14.5
31
16.4
10.6
32.7
12
144
95
12
40
14.5
31
16.4
10.6
32.7
12
144
100
12
45
14.5
31
16.4
10.6
32.7
12
144
104
12
50
14.5
31
16.4
10.6
32.7
12
144
109
12
60
14.5
31
16.4
10.6
32.7
12
144
117
12
70
14.5
31
16.4
10.6
32.7
12
144
125
12
80
14.5
31
16.4
10.6
32.7
12
144
133
12
90
14.5
31
16.4
10.6
32.7
12
144
141
12
100
14.5
31
16.4
10.6
32.7
12
144
150
12
110
14.5
31
16.4
10.6
32.7
12
144
159
12
120
14.5
31
16.4
10.6
32.7
12
144
167
16
30
19
38
23.4
14
42.6
16
257
205
16
35
19
38
23.4
14
42.6
16
257
212
16
40
19
38
23.4
14
42.6
16
257
220
16
45
19
38
23.4
14
42.6
16
257
228
16
50
19
38
23.4
14
42.6
16
257
235
16
60
19
38
23.4
14
42.6
16
257
251
16
70
19
38
23.4
14
42.6
16
257
265
16
80
19
38
23.4
14
42.6
16
257
281
16
90
19
38
23.4
14
42.6
16
257
296
16
100
19
38
23.4
14
42.6
16
257
312
16
110
19
38
23.4
14
42.6
16
257
327
16
120
19
38
23.4
14
42.6
16
257
342
16
130
19
38
23.4
14
42.6
16
257
357
16
140
19
38
23.4
14
42.6
16
257
373
16
150
19
38
23.4
14
42.6
16
257
388
20
50
24.8
38
23.4
17
42.6
20
403
295
20
60
24.8
38
23.4
17
42.6
20
403
319
20
70
24.8
38
23.4
17
42.6
20
403
344
20
80
24.8
38
23.4
17
42.6
20
403
368
20
90
24.8
38
23.4
17
42.6
20
403
392
20
100
24.8
38
23.4
17
42.6
20
403
416
20
110
24.8
38
23.4
17
42.6
20
403
439
20
120
24.8
38
23.4
17
42.6
20
403
463
20
130
24.8
38
23.4
17
42.6
20
403
487
20
140
24.8
38
23.4
17
42.6
20
403
511
20
150
24.8
38
23.4
17
42.6
20
403
530
25
50
30.8
50
30.4
22.3
54.3
25
631
548
25
60
30.8
50
30.4
22.3
54.3
25
631
585
25
70
30.8
50
30.4
22.3
54.3
25
631
623
25
80
30.8
50
30.4
22.3
54.3
25
631
662
25
90
30.8
50
30.4
22.3
54.3
25
631
698
25
100
30.8
50
30.4
22.3
54.3
25
631
735
25
110
30.8
50
30.4
22.3
54.3
25
631
774
25
120
30.8
50
30.4
22.3
54.3
25
631
810
25
130
30.8
50
30.4
22.3
54.3
25
631
847
25
140
30.8
50
30.4
22.3
54.3
25
631
885
25
150
30.8
50
30.4
22.3
54.3
25
631
922

Pin

Stainless steel AISI 630

Precipitation-hardened

Knob, push button

Stainless steel AISI 316L

Balls

Stainless steel AISI 420C

Pressure spring

Stainless steel

German material no. 1.4565

Ball lock pins GN 113.10 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is location pins which have to be often removed and replaced again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

Ball lock pins GN 113.10 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
