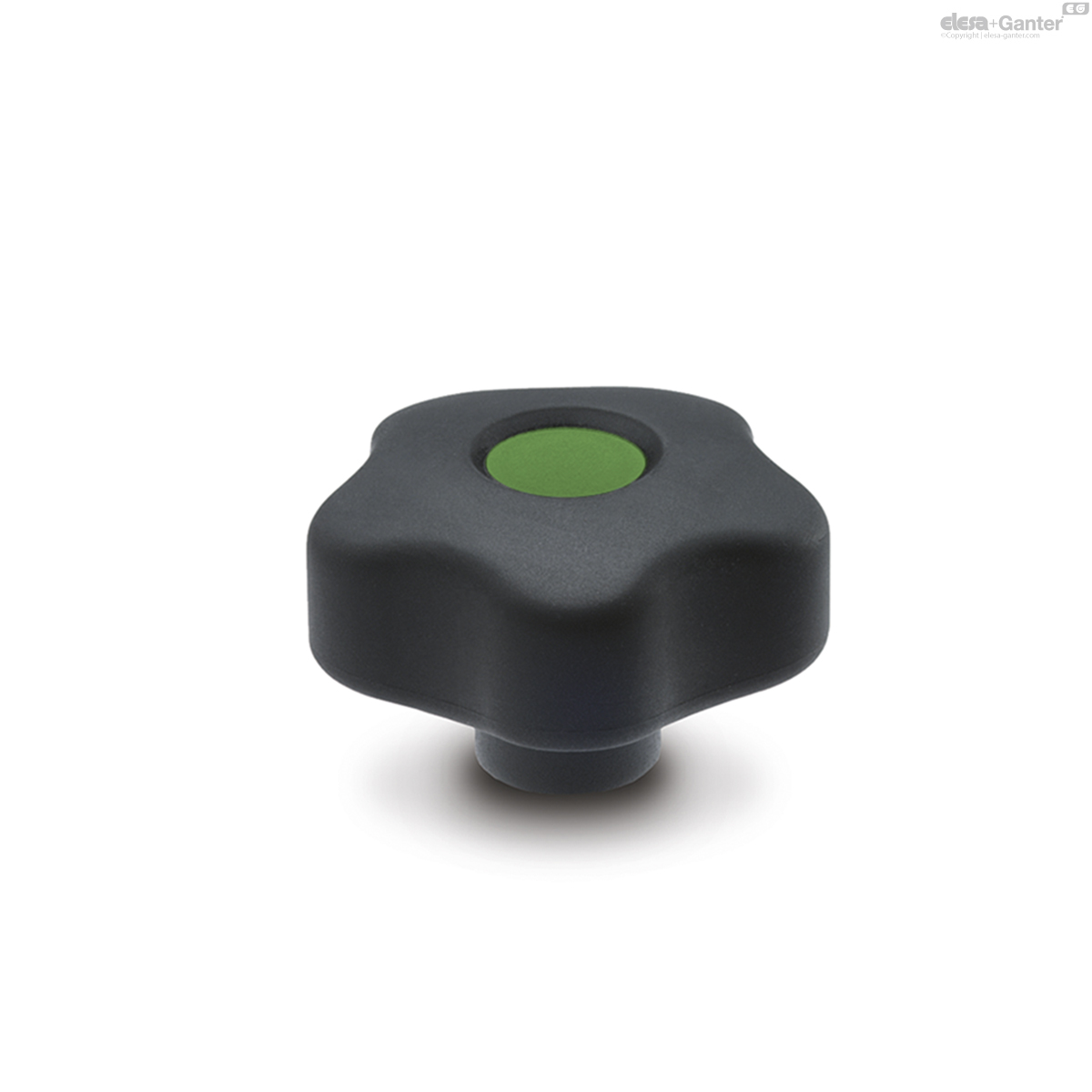

VCT-B-SOFTBoutons à lobes

Trou fileté

Technopolymère 'soft-touch'

Technical datasheet

VCT-B-SOFT

Code	Description	D	d_6H	L	d₁	l₂	h	C# [Nm]
169892-C17	VCT.43 B-M6-SOFT-C17	43	M6	29	17	11	12	15	27
169894-C17	VCT.43 B-M8-SOFT-C17	43	M8	29	17	11	13	18	27
169952-C17	VCT.53 B-M8-SOFT-C17	53	M8	34	19	13	15	25	2
169954-C17	VCT.53 B-M10-SOFT-C17	53	M10	34	19	13	17	27	40
170013-C17	VCT.66 B-M10-SOFT-C17	66	M10	38.5	21.5	15.5	17	50	44
170015-C17	VCT.66 B-M12-SOFT-C17	66	M12	38.5	21.5	15.5	17	50	44
170062-C17	VCT.77 B-M12-SOFT-C17	77	M12	46	26	21	20	60	82

# 'Max limit Tightening torque' means the max torque value at which the metal insert, in normal conditions of use, is perfectly and strongly anchored to the plastic material.

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, coated with thermoplastic elastomer (TPE) 'soft-touch' chemically bonded, hardness 70 Shore A, black colour, matte finish.

Raw material coating suitable for contact with food (FDA CFR.21 and EU 10/2011).

Coloured centre cap

Polypropylene based (PP) technopolymer, in the standard colours, matte finish.

On request and for sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

Standard executions

VCT-B-SOFT: brass boss, threaded blind hole.
VCT-p-SOFT: zinc-plated steel threaded stud with chamfered flat end as in UNI 947 : ISO 4753 (see Technical data).
