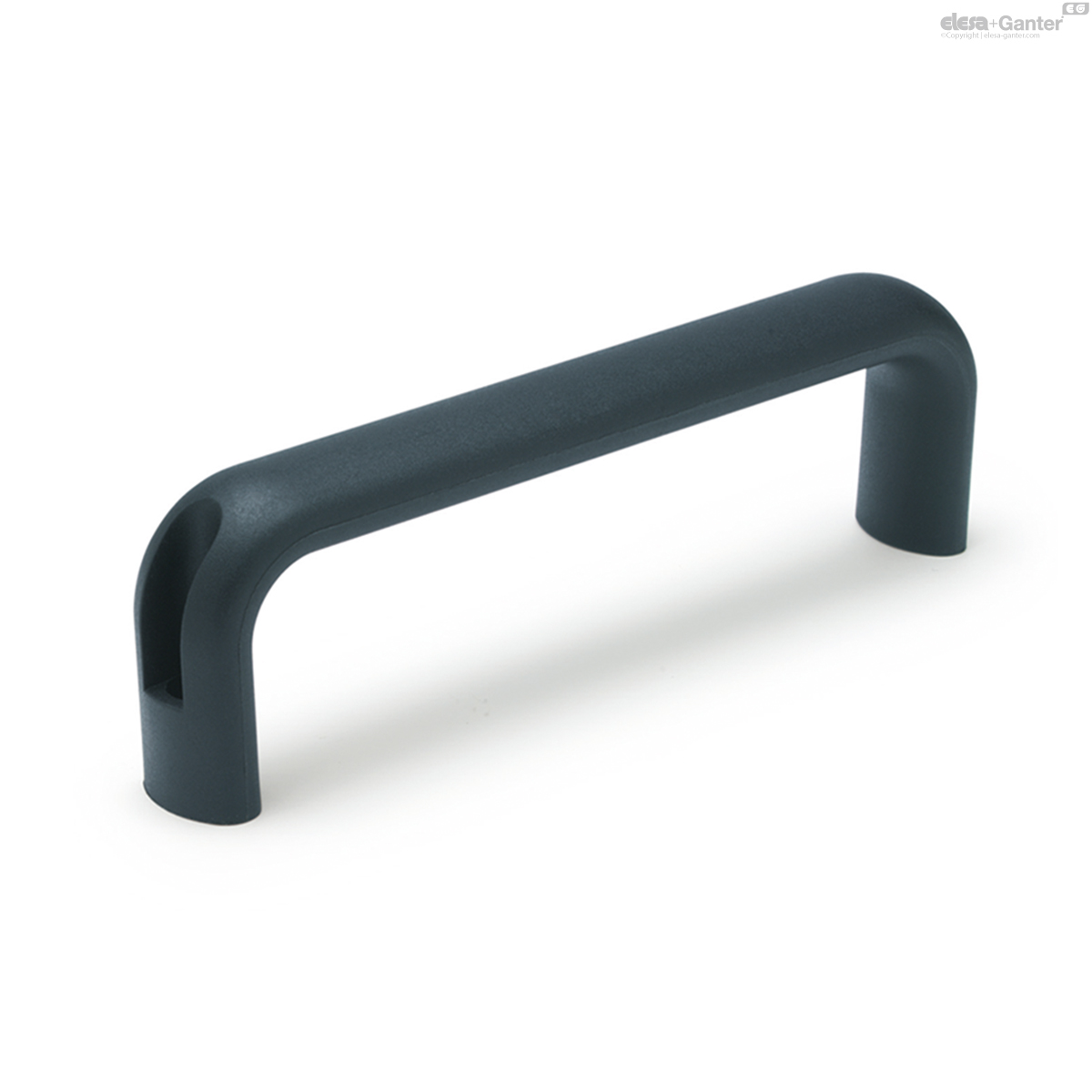

M.643-FMPoignées étriers

Trous passants pour montage frontal

Poignées étriers

Technical datasheet

M.643-FM

Trous passants pour montage frontal

M.643R

Trous borgnes filetés pour montage arrière (version réduite)

M.643

Trous borgnes filetés pour montage arrière

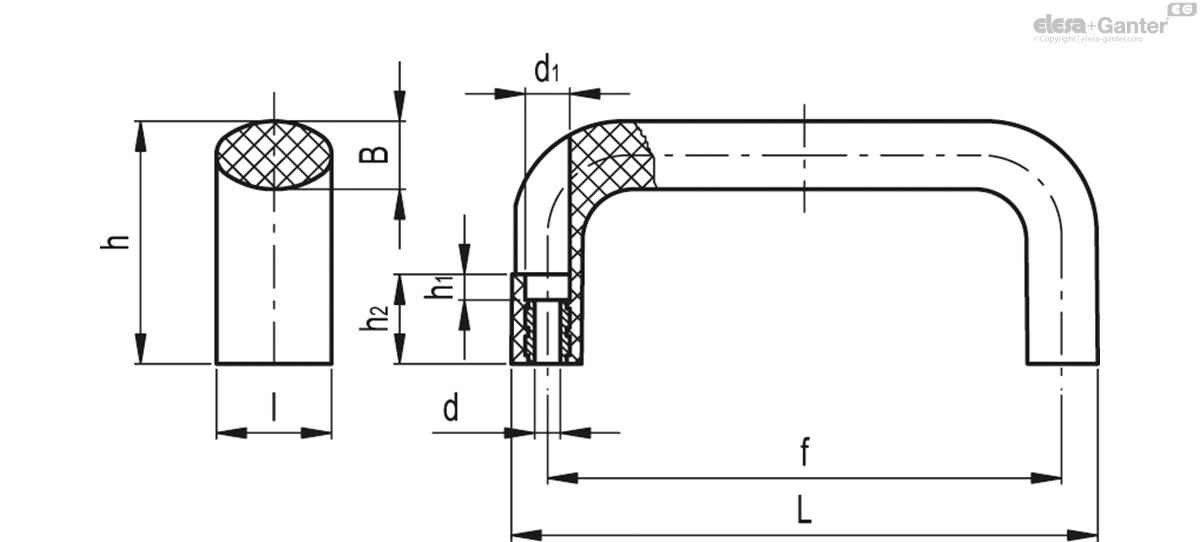

M.643-FM

Code	Description	L	l	f	d	d₁	h	h₁	h₂	B	F1 [N]	F2 [N]
137301	M.643 FM/100 B-5	100	23	86±0.5	5.4	8.5	44	5.5	20.5	14	3000	2200
137311	M.643 FM/140 B-6	134	25	117±0.5	6.4	10.5	49	6	21	15	2000	2800
137331	M.643 FM/150 B-6	148	26	132±0.5	6.4	10.5	53	8.5	23.5	16	1900	1900
137351	M.643 FM/200 B-6	196	27	179±1	6.4	10.5	57	6	21	16	1900	1900

Main specifications
Technical data

Standard executions

Brass bosses, threaded blind holes.

M.643: high-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

M.643R (reduced version h=45): glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

M.643-FM: high-resilience polypropylene based (PP) technopolymer, black colour, matte finish. Brass bosses, pass-through holes for cylindrical-head screws with hexagon socket.

Technical Data

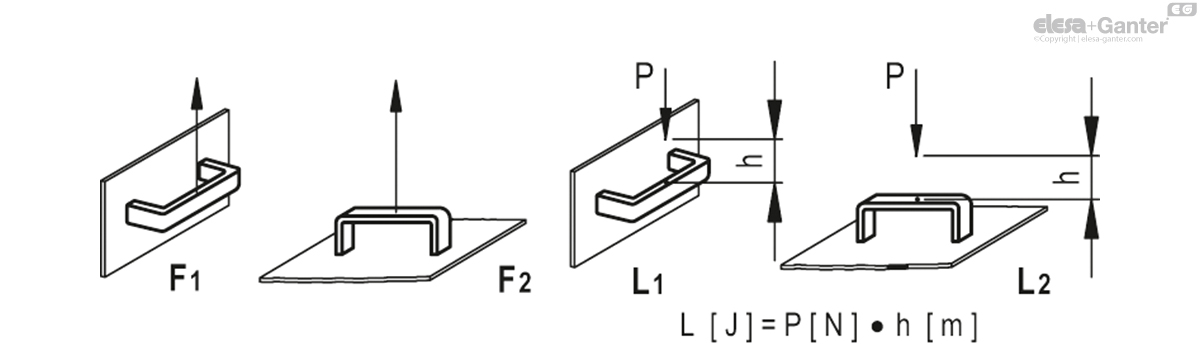

Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
