GN 864-NCPinces de puissance

The maximum clamping moment of the power clamps GN 864 is reached once the clamping arm is at the end of its stroke. For this reason the working stroke should be completed as closely as possible to the stroke end.

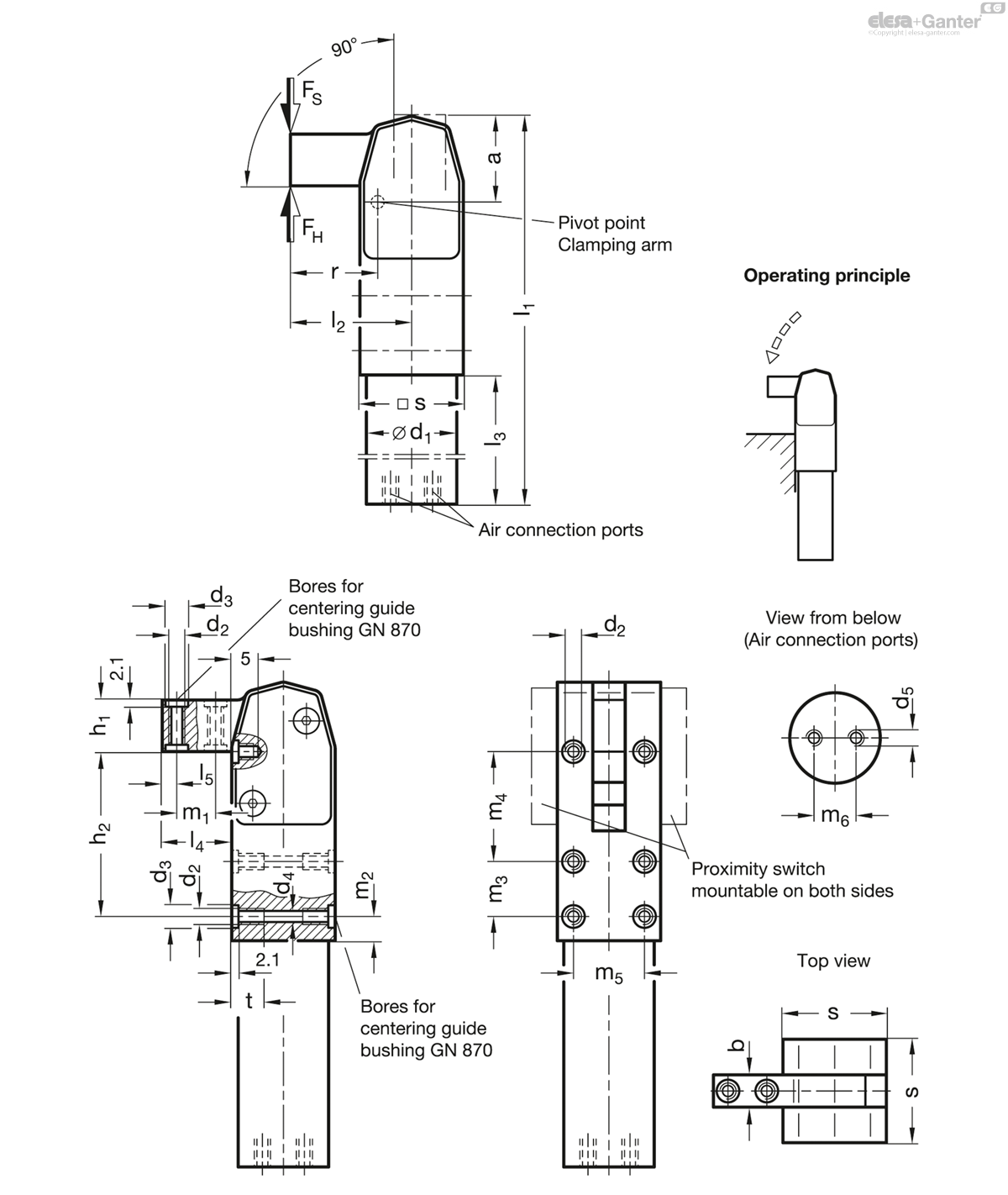

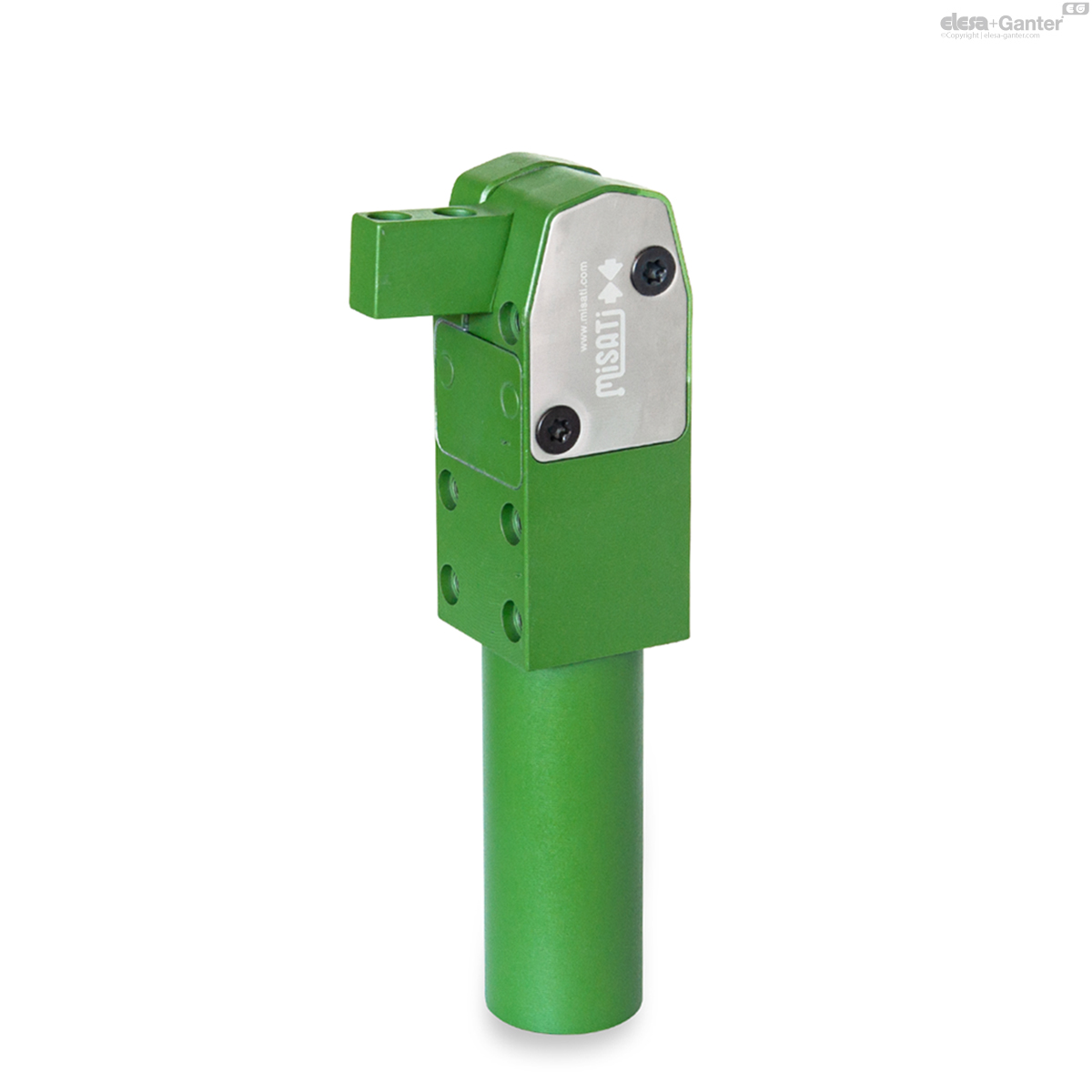

The type FG is equipped with an anti-stick coating of polytetrafluorethylene (PTFE) for protection against welding spray and corrosion. With protective covers GN 864.1 the tensioning mechanism can be additionally protected against penetrating dirt.

• Information for pneumatic fastening clamps

• Protective covers GN 864.1

• ISO-Fundamental Tolerances

• Plastic Characteristics

• List of pneumatic clamps



• the high clamping force

• the small dimensions

• the reduced air consumption

• the light weight

• The clamp is kinematically designed such that self-retention (holding force FH) is achieved in the clamped position (clamping force FS) after passing the dead point due to irreversibility.

• The forward stroke sequence of the clamping arm is rapid but the ultimate clamping action is slow and as a result pneumatic damping is normally not required. Upon request, however, it can be supplied when big masses are moved.

• The clamping mechanism is fitted with needle bearings which give optimum clamping forces and reduced wear.

• The steel cylinder with the integrated clamping mechanism are in one unit. This leads to high stability for these small units with an extended range of applications. The placement of the air connection at the bottom end leads also to many other advantages.

• The clamping mechanism of GN 864 is also shrouded to avoid the ingress of dirt and other objects which could interfere with the proper functioning of the clamps (such as welding operations!).
