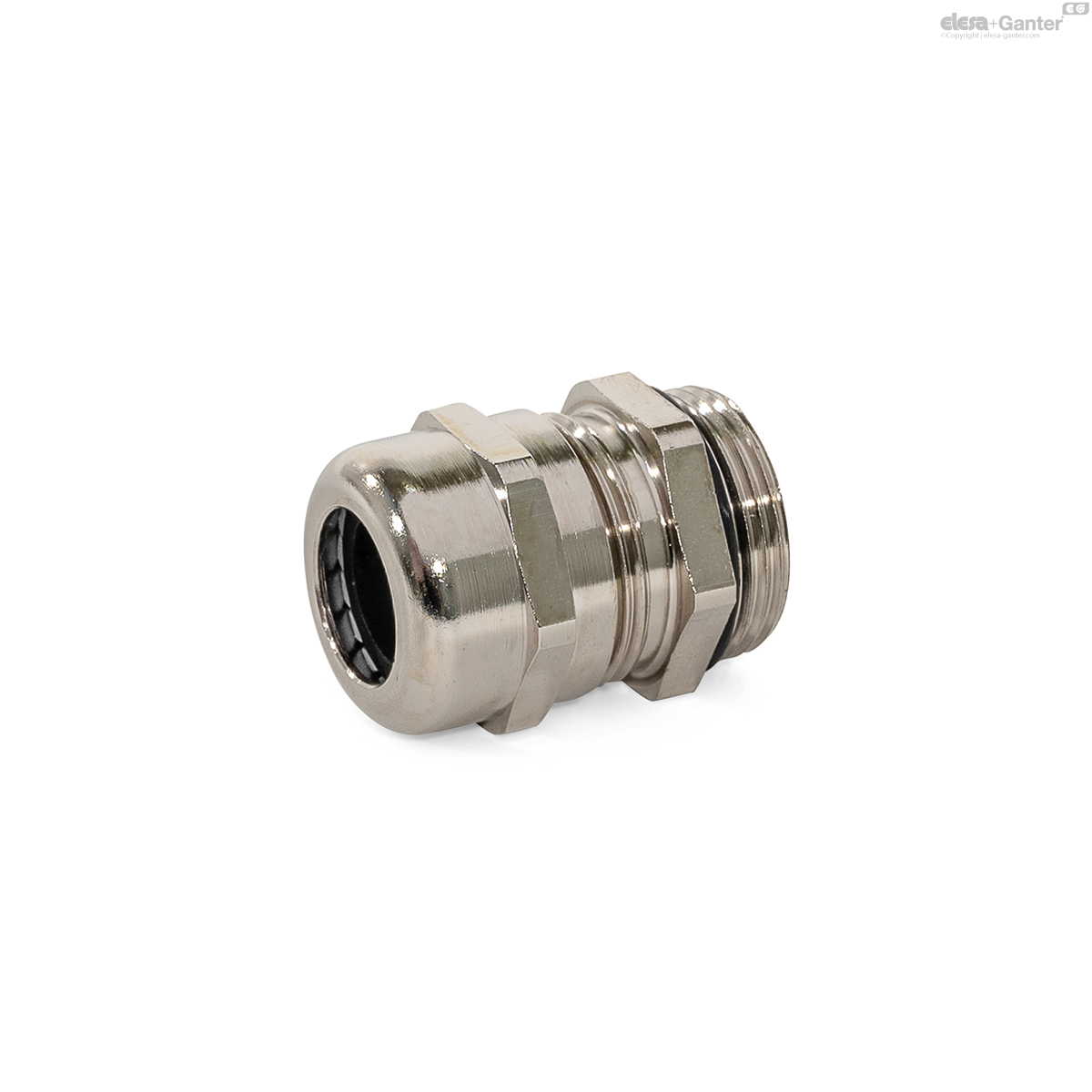

GN 62444-M-MSPresse-étoupes
Filetage métrique, laiton
Laiton / acier inoxydable, filetage métrique / filetage PG / filetage NPT

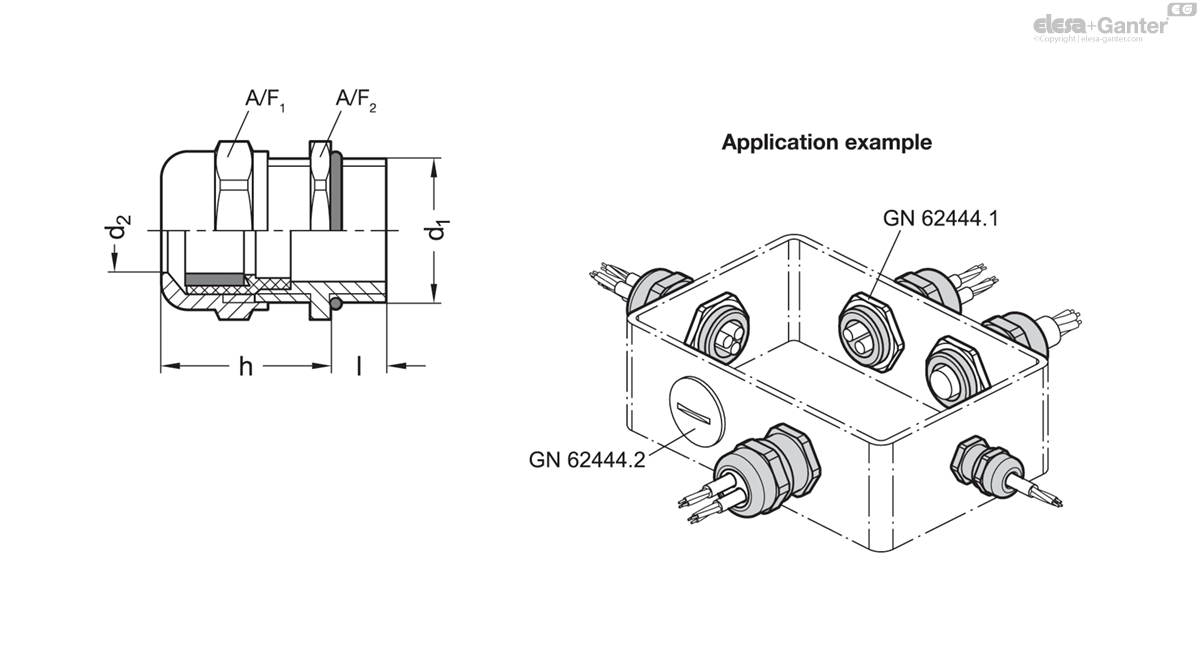

GN 62444-M-MS
|
Code
|
d1
|
d2
|
d2 Clamping range ø
|
h max.
|
Length l
|
A/F 1
|
A/F 2
|
Recommended tightening torque in Nm
A/F1 |
Recommended tightening torque in Nm
A/F2 |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 62444-M12x1,5-6-MS
|
M 12 x 1.5
|
6
|
3...6
|
22
|
6
|
14
|
14
|
2
|
1
|
13
|
|
GN 62444-M16x1,5-8-MS
|
M 16 x 1.5
|
8
|
4...8
|
23
|
7
|
17
|
18
|
2.5
|
2.5
|
20
|
|
GN 62444-M16x1,5-10-MS
|
M 16 x 1.5
|
10
|
5...10
|
28.5
|
7
|
20
|
20
|
2.5
|
2.5
|
26
|
|
GN 62444-M20x1,5-12-MS
|
M 20 x 1.5
|
12
|
6...12
|
26.5
|
8
|
22
|
22
|
4
|
3.5
|
29
|
|
GN 62444-M25x1,5-14-MS
|
M 25 x 1.5
|
14
|
10...14
|
27.7
|
8
|
24
|
27
|
5.5
|
3.5
|
47
|
|
GN 62444-M25x1,5-17-MS
|
M 25 x 1.5
|
17
|
11...17
|
32.5
|
8
|
27
|
27
|
5.5
|
3.5
|
49
|
|
GN 62444-M32x1,5-18-MS
|
M 32 x 1.5
|
18
|
13...18
|
33
|
9
|
30
|
34
|
9
|
3.5
|
80
|
|
GN 62444-M32x1,5-21-MS
|
M 32 x 1.5
|
21
|
15...21
|
36
|
8
|
34
|
34
|
6
|
5
|
85
|
|
GN 62444-M40x1,5-25-MS
|
M 40 x 1.5
|
25
|
18...25
|
38
|
9
|
40
|
43
|
10
|
5
|
154
|
|
GN 62444-M40x1,5-28-MS
|
M 40 x 1.5
|
28
|
19...28
|
43.5
|
9
|
43
|
43
|
11
|
5
|
154
|
|
GN 62444-M50x1,5-32-MS
|
M 50 x 1.5
|
32
|
22...32
|
48
|
9
|
50
|
55
|
20
|
5
|
290
|
|
GN 62444-M50x1,5-38-MS
|
M 50 x 1.5
|
38
|
27...38
|
55
|
9
|
58
|
58
|
20
|
8
|
293
|
|
GN 62444-M63x1,5-44-MS
|
M 63 x 1.5
|
44
|
34...44
|
53
|
14
|
64
|
68
|
20
|
12
|
425
|
Housing
Housing
- Brass, nickel-plated MS
- Stainless steel AISI 303 NI
Seal insert
Seal insert
Chloroprene rubber (CR)
Clamping insert
Clamping insert
Plastic, polyamide (PA)
O-ring
O-ring
Acrylonitrile butadiene rubber (NBR)
Operating temperature -40 °C to +100 °C
Operating temperature -40 °C to +100 °C
Protection class IP 68
Protection class IP 68
Cable glands GN 62444 are used to feed cables or wires into enclosures, relieve strain, and seal them. Within the specified clamping range, the sealing and clamping effect increases with the cable diameter.
The cable glands can be screwed into an existing internal thread or mounted in a through hole using a mounting nut.
They include an O-ring for sealing against the enclosure.
- GN 62444.1 Mounting Nuts, (metric and PG thread)
- GN 62444.2 Threaded Plugs, (metric and PG thread)
- GN 62444.4 Reducers, (metric thread)
