Technical datasheet
GN 62444.4Réducteurs
Réducteurs
pour presse-étoupes GN 62444, laiton, filet métrique
GN 62444.4
|

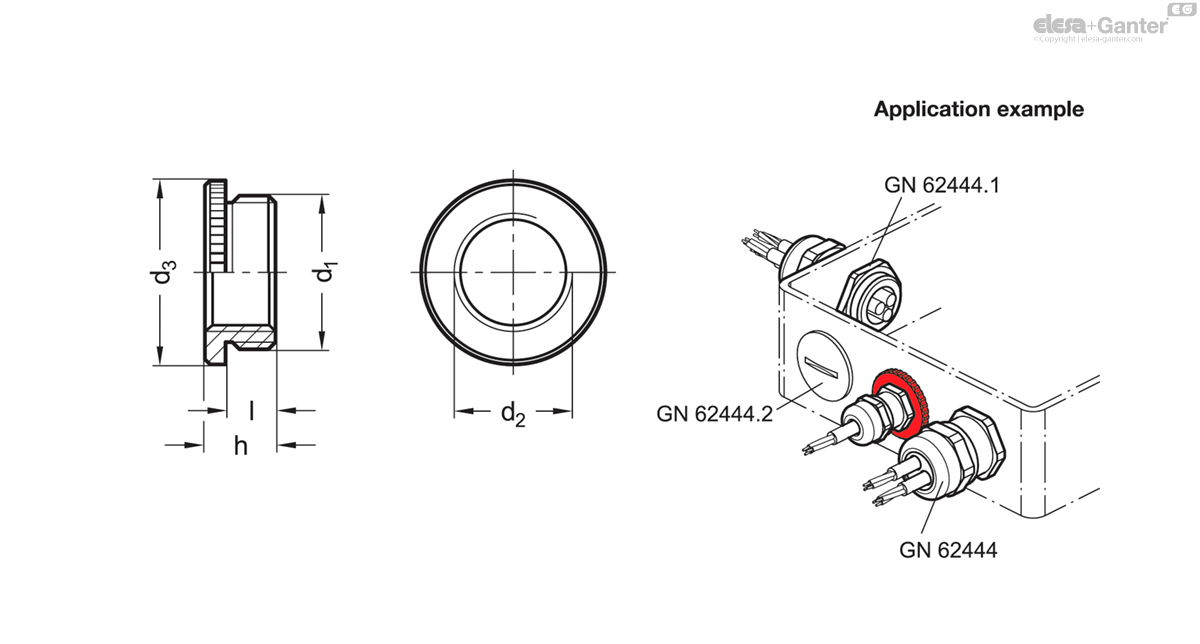

Code
|
Size
|
d1
|
d2
|
d3
|
h
|
Length l
|
|
|
|---|---|---|---|---|---|---|---|---|
|
M 16-M 12
|
M 16 x 1.5
|
M 12 x 1.5
|
20
|
8
|
6
|
8
| ||
|
M 20-M 16
|
M 20 x 1.5
|
M 16 x 1.5
|
24
|
9
|
6.5
|
10
| ||
|
M 25-M 20
|
M 25 x 1.5
|
M 20 x 1.5
|
30
|
10
|
7
|
18
| ||
|
M 32-M 25
|
M 32 x 1.5
|
M 25 x 1.5
|
37
|
11.5
|
8
|
35
| ||
|
M 40-M 32
|
M 40 x 1.5
|
M 32 x 1.5
|
43
|
11.5
|
8
|
46
| ||
|
M 50-M 40
|
M 50 x 1.5
|
M 40 x 1.5
|
56
|
14
|
10
|
93
| ||
|
M 63-M 50
|
M 63 x 1.5
|
M 50 x 1.5
|
66
|
14
|
10
|
124
|
Brass MS
Brass MS
Nickel-plated
Reducers GN 62444.4 enable a transition from a larger to a smaller internal thread, allowing the use of smaller cable glands than the housing was designed for.
In combination with a mounting nut, fastening in a through hole is also possible.
- GN 62444.1 Mounting Nuts
