GN 871Accessoires du kit de cales

Accessoires du kit de cales

pour accessoires de bloc de mâchoire

  • Icons/__logo__RoHS__.png
Accessoires du kit de cales
Accessoires du kit de cales

GN 871

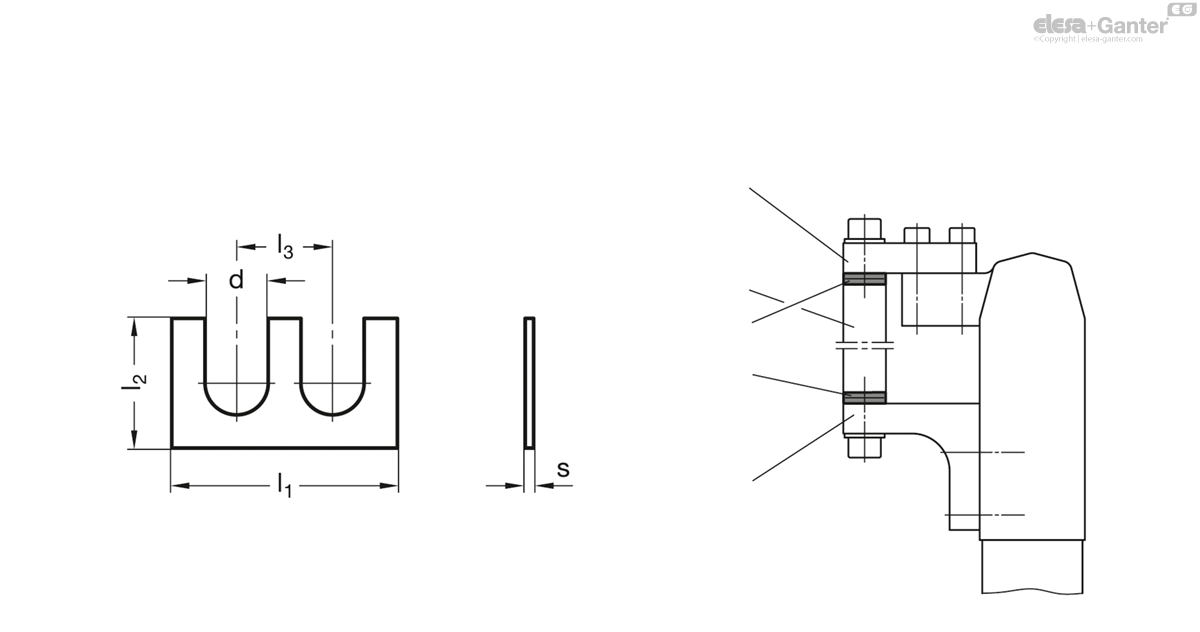

Code
l1
s
d
l2
l3
30
0.1 0.2 0.3 0.5 1
9.2
13
17
1
40
0.1 0.2 0.3 0.5 1
11.2
17
23
1
50
0.1 0.2 0.3 0.5 1
13.2
20
30
2
60
0.1 0.2 0.3 0.5 1
13.2
20
40
14
  • Icons/__logo__MISATI__.png

Steel

blackened

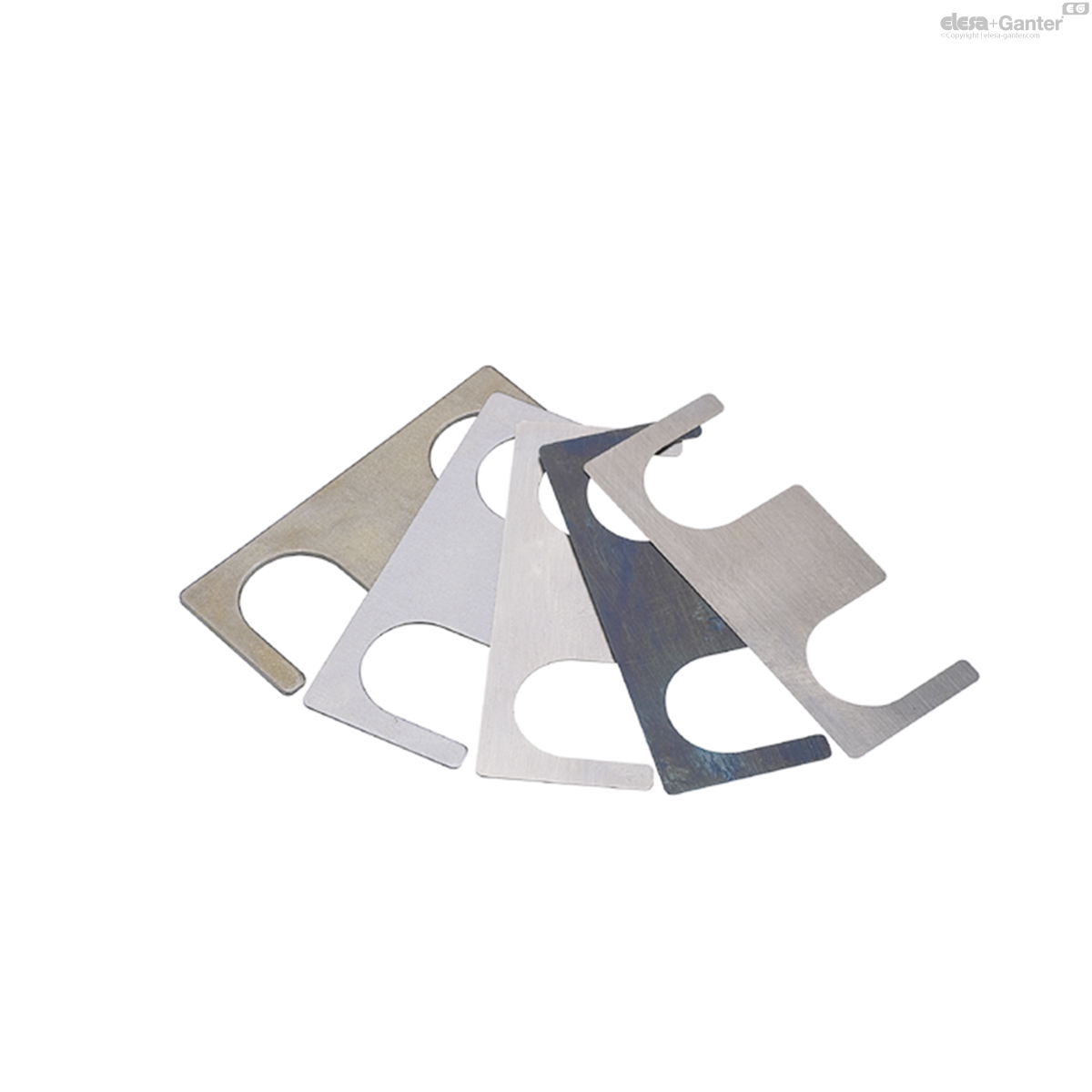

GN 871 shim kit accessories are used to correct any discrepancy in the alignment of the two clamping jaw levels.

This facilitates in a simple way the optimum clamping position of the jaws, i. e. also the optimal clamping force.

The shim kit accessories are only available as a complete set of five of different thicknesses for each size.
