Technical datasheet
GN 870Accessoires de douilles de guidage de centrage
Accessoires de douilles de guidage de centrage
pour pinces de fixation pneumatiques
|

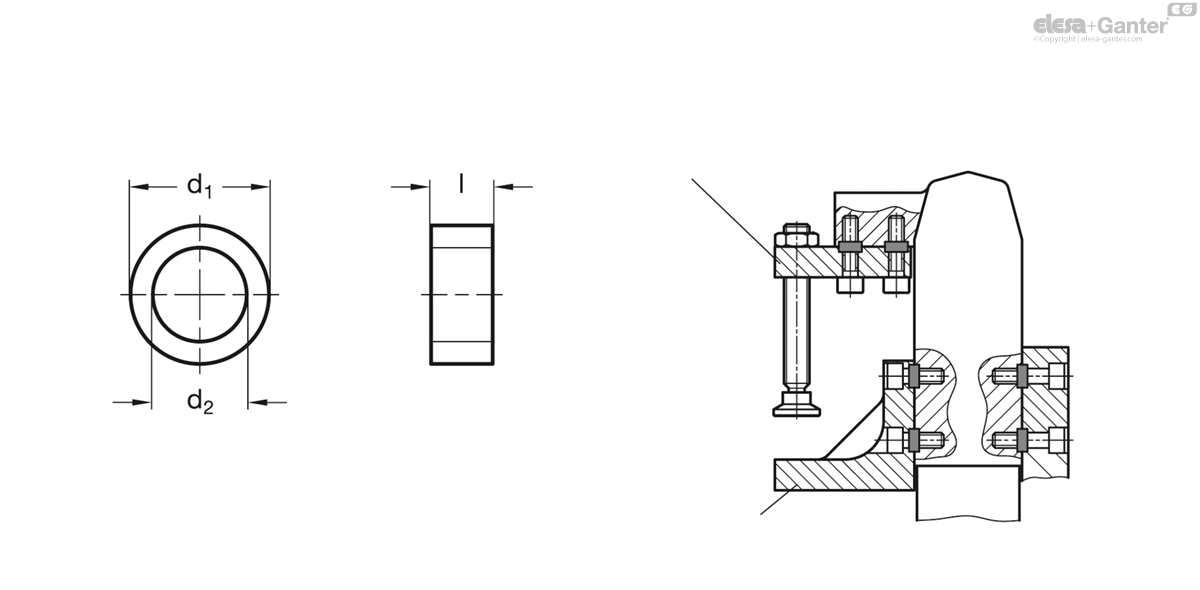

Code
|
d1 h6
|
d2
|
l
|
|
|---|---|---|---|---|
|
|
|
|
|
|
|
GN 870-7
|
7
|
5.1
|
4
|
1
|
|
GN 870-9
|
9
|
6.1
|
4
|
1
|
|
GN 870-11
|
11
|
8.1
|
4
|
1
|
|
GN 870-13
|
13
|
10.1
|
4
|
2
|
Steel
blackened

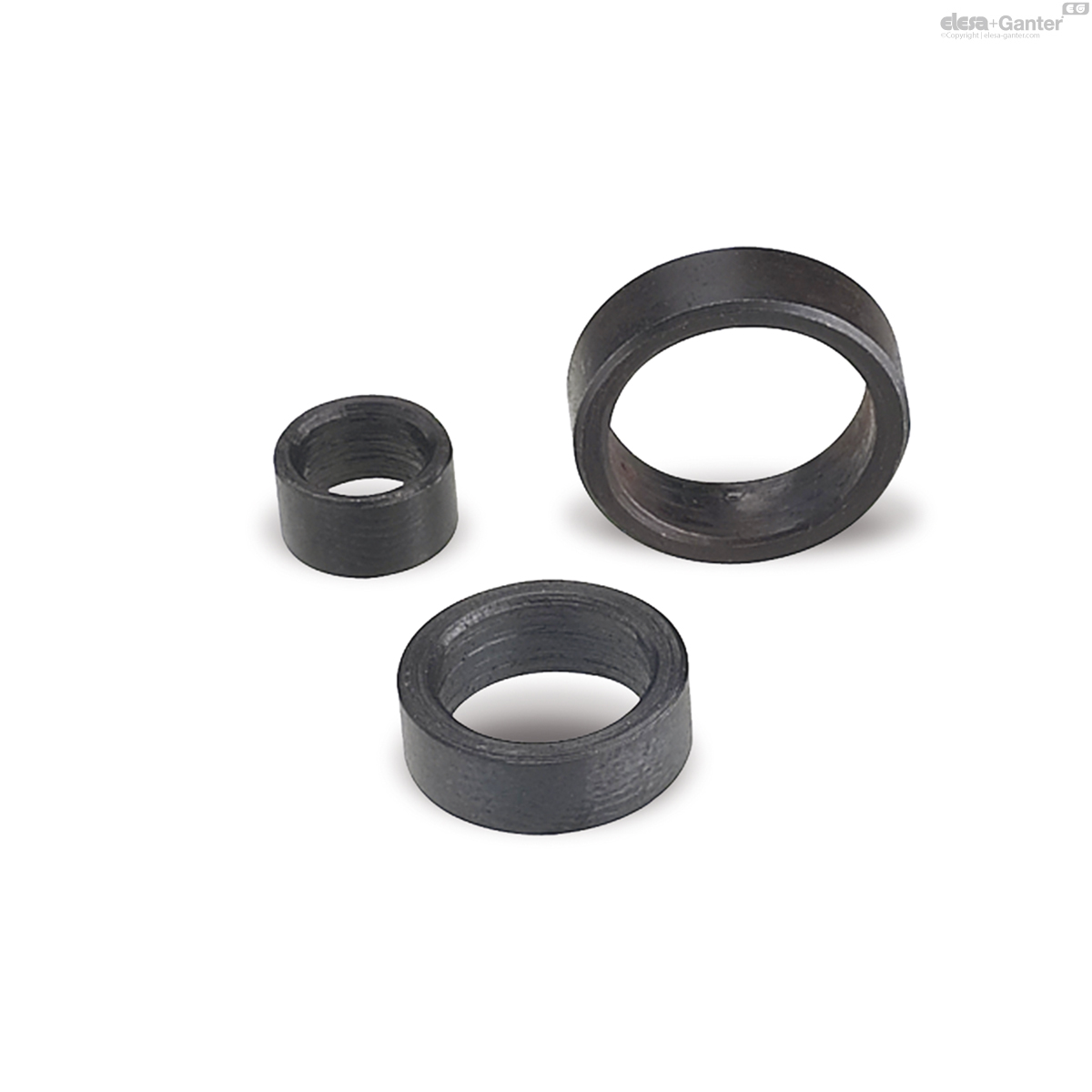

GN 870 centering guide bushing accessories ensure accurate location of the jaw block accessories and static holders, as well as the pneumatic fastening clamps.
At the same time they absorb side thrust and eliminate excessive load on the mounting screws.
