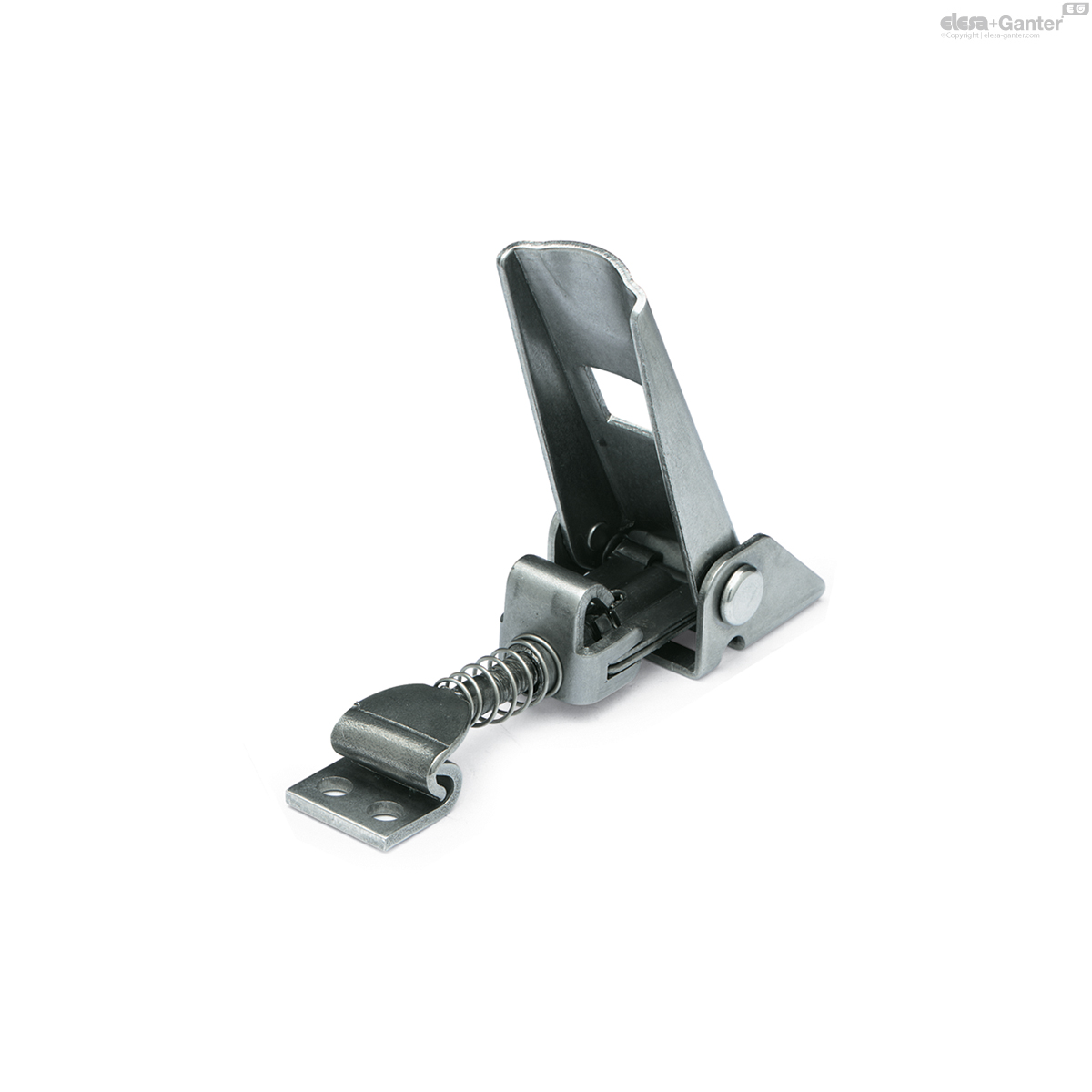

GN 831-NILoquets à bascule

Acier inoxydable

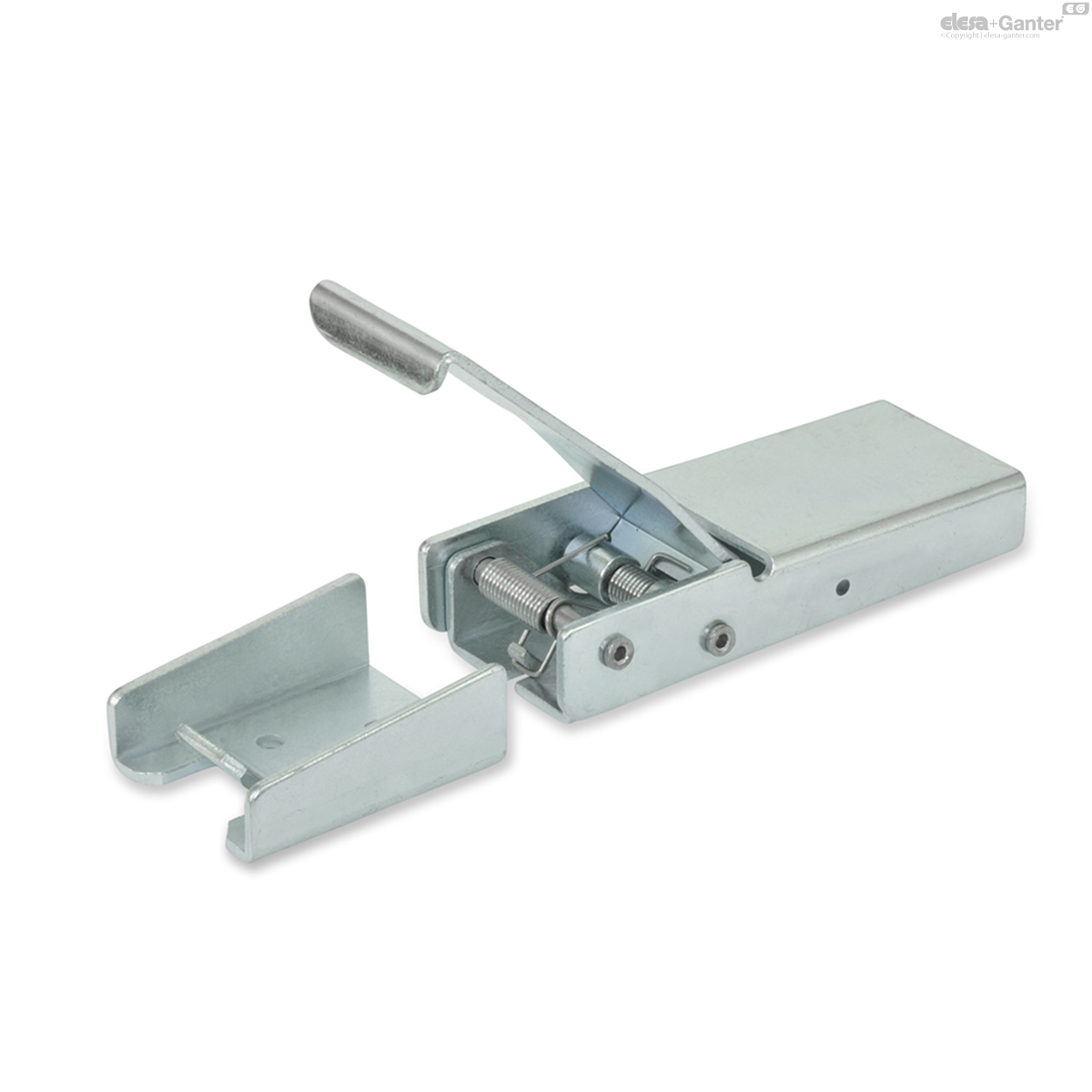

Acier / Acier inoxydable

Technical datasheet

GN 831-NI

Réinitialiser

Code	Size	F_H in N	b₁	b₂	b₃	b₄	d	h₁	h₂	h₃	h₄	l₁ min.

GN 831-100-A-NI-1	100	1000	25.5	22	26	14	4.2	18.5	8.5	-	-	67
GN 831-100-A-NI-2	100	1000	25.5	22	26	14	4.2	18.5	8.5	-	-	-
GN 831-100-S-NI-1	100	1000	25.5	22	26	14	4.2	18.5	8.5	21.5	-	74
GN 831-100-S-NI-2	100	1000	25.5	22	26	14	4.2	18.5	8.5	21.5	-	-
GN 831-100-SV-NI-1	100	1000	25.5	22	26	14	4.2	18.5	8.5	-	25.5	67
GN 831-100-SV-NI-2	100	1000	25.5	22	26	14	4.2	18.5	8.5	-	25.5	-

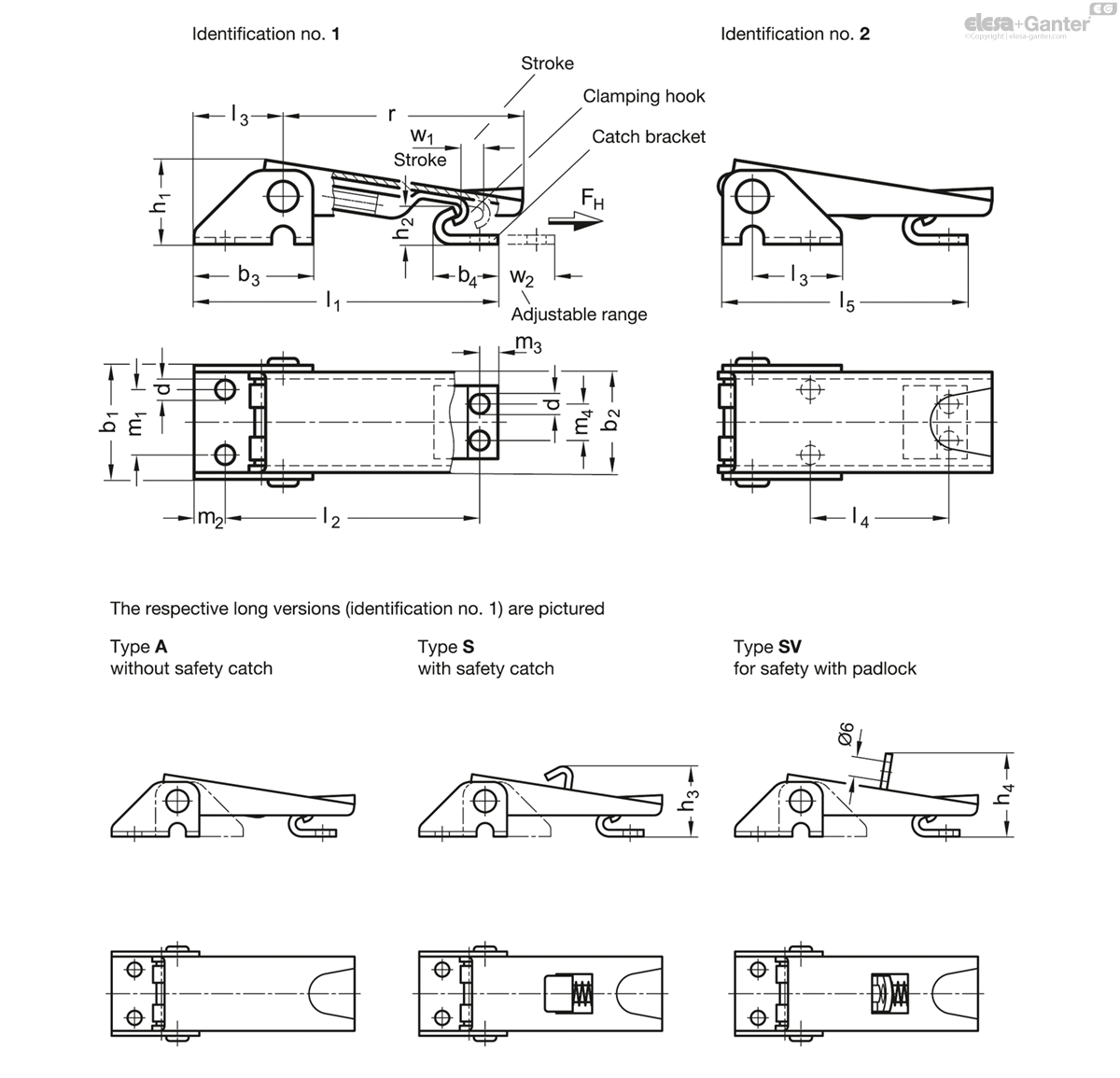

Types

Type A: without safety catch

Type S: with safety catch

Type SV: for safety catch with padlock

Identification No.

No. 1: long Type

No. 2: short Type

Version in Steel ST

zinc plated, blue passivated

Version in Stainless Steel NI

Parts in sheet metal AISI 304

Clamping hook / pin AISI 303

GN 831 toggle latches are used among others for the secure holding of flaps and container lids. The clamps will lock securely over the centre and are thus vibration proof.

The stroke w₁ of the clamping hook can pull the parts to be clamped together by up to 6 mm. The range w₂ can be adjusted on the M6 threaded spindle at the clamping hook.

The types S and SV prevent unwanted release of the toggle latch.

Screws with low head height such as DIN 6912 are used to fix the toggle latches.

The load specified in the table are simply guide line values for a nominal static pulling force which the lock can withstand. Depending on the conditions under which these toggle latches are used such as vibration or shock loads, the holding capacity can be adversely affected.

The catch bracket is included.
