Technical datasheet
EWNM-SSTBoutons à ailes

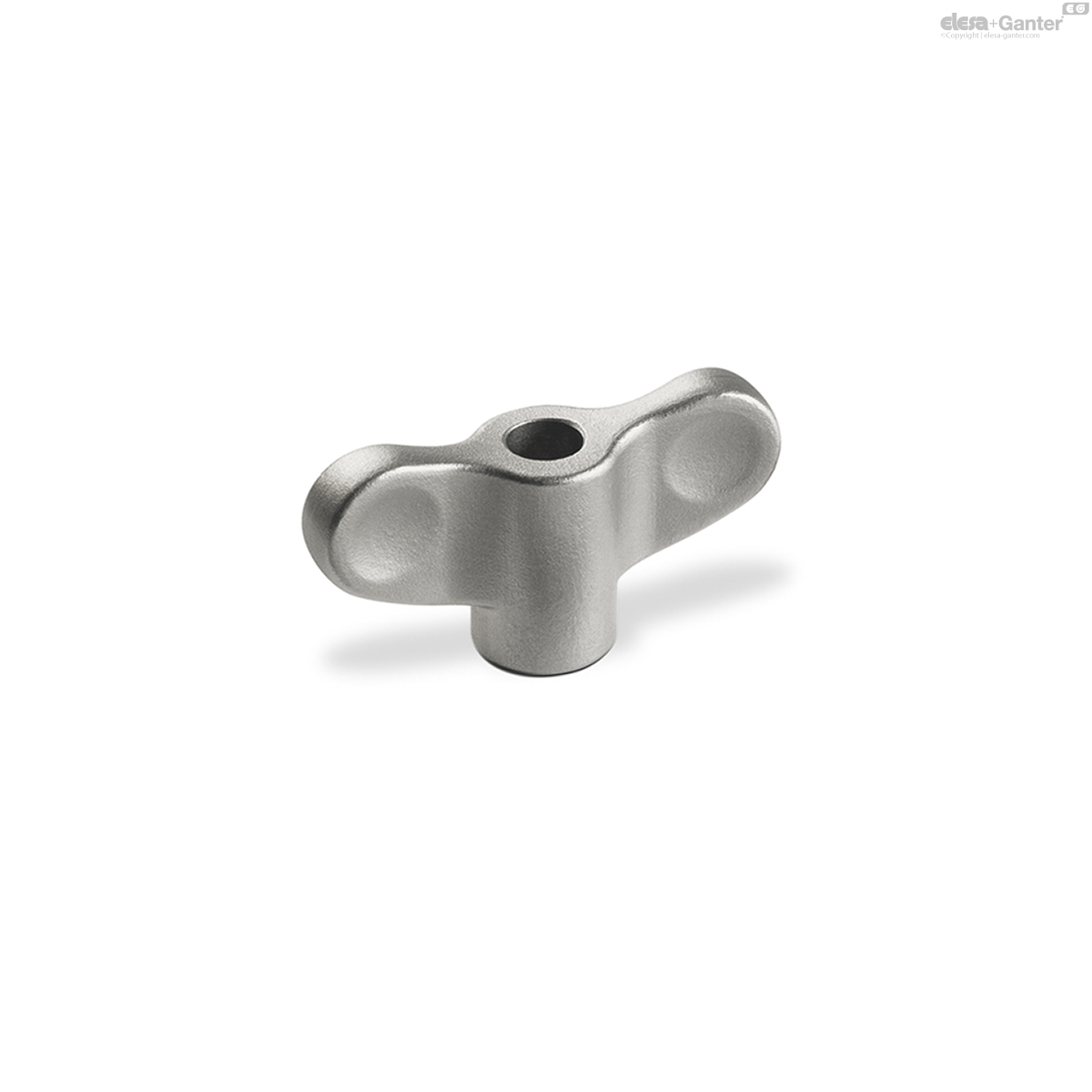

Trou borgne fileté
Acier inoxydable
|

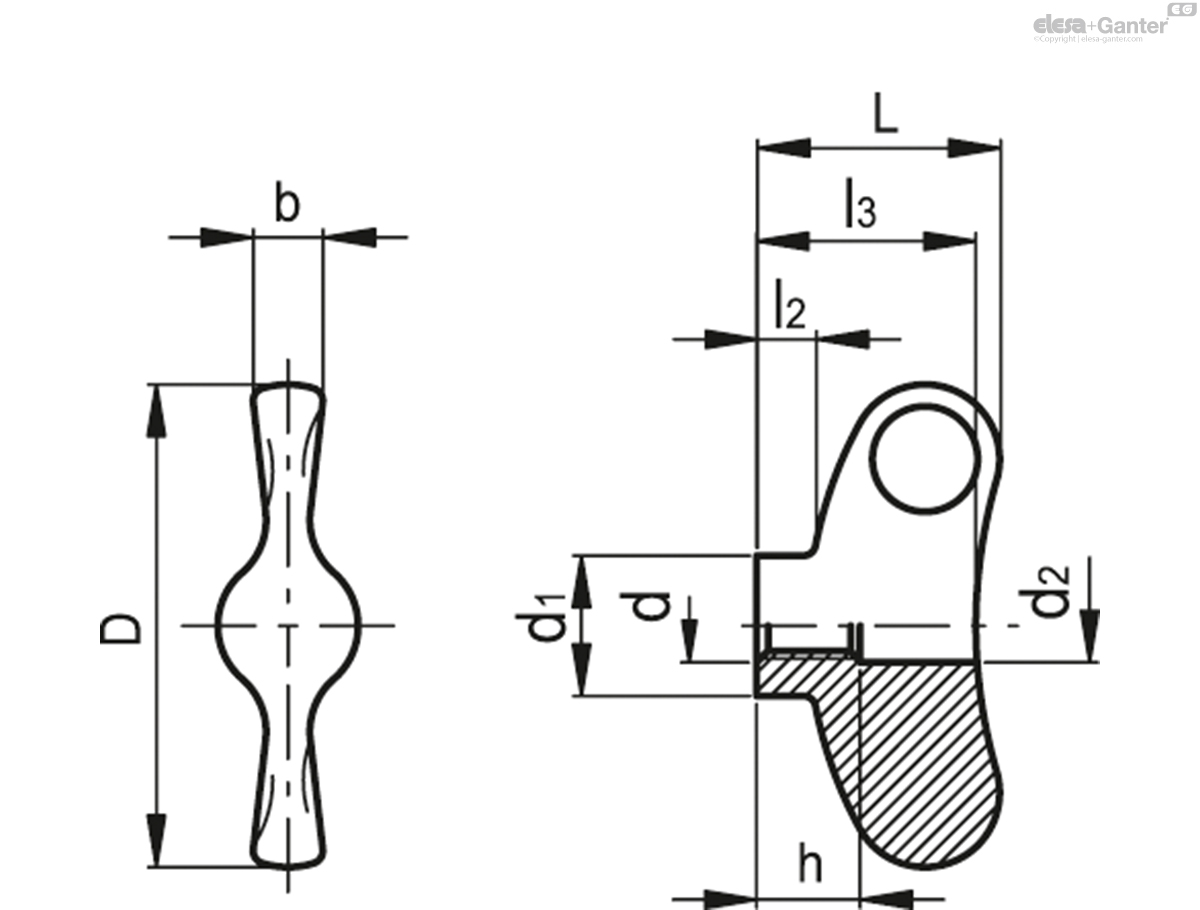

Code
|
Description
|
D
|
d
|
L
|
d1
|
l2
|
b
|
h
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
222002
|
EWNM-SST-40-M5
|
40
|
M5
|
21
|
13.5
|
5.5
|
6.5
|
12
|
32
|
|
222004
|
EWNM-SST-40-M6
|
40
|
M6
|
21
|
13.5
|
5.5
|
6.5
|
12
|
31
|
|
222012
|
EWNM-SST-48-M6
|
48
|
M6
|
24
|
13.5
|
6
|
7
|
15
|
41
|
|
222014
|
EWNM-SST-48-M8
|
48
|
M8
|
24
|
13.5
|
6
|
7
|
15
|
38
|
|
222022
|
EWNM-SST-55-M8
|
55
|
M8
|
28
|
16
|
7
|
8
|
18
|
62
|
|
222024
|
EWNM-SST-55-M10
|
55
|
M10
|
28
|
16
|
7
|
8
|
18
|
57
|
Material
AISI 304 stainless steel, sandblasted matte finish.
Standard executions
- EWNM-SST: threaded blind hole.
- EWNM-SST-FP: threaded pass-through hole.
- EWNM-SST-p: threaded pin.
Features and applications
These wing nuts allow high tightening torque values.
Ergonomy and design
The slightly concave marks on the wings help to position the fingers in order to apply the maximum force when tightening.
Different threadings.
