Technical datasheet

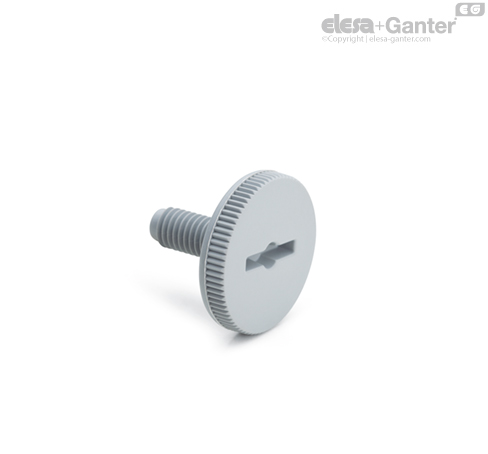

DT.464-SBBoutons de serrage
Boutons moletés
avec extrémité sphérique, SUPER-Technopolymère
|
Code
|
Description
|
D
|
d
|
d1
|
d2
|
l
|
l1
|
l2
|
Tightening torque
[Nm] |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
317601-C33
|
DT.464.24-M6x25-SB-C33
|
24
|
M6
|
12
|
4.5
|
25
|
15
|
5
|
1
|
6
|
|
317603-C33
|
DT.464.24-M6x35-SB-C33
|
24
|
M6
|
12
|
4.5
|
35
|
15
|
5
|
1
|
7
|
|
317605-C33
|
DT.464.30-M8x30-SB-C33
|
30
|
M8
|
16
|
6.1
|
30
|
18
|
6
|
2.5
|
12
|
|
317607-C33
|
DT.464.30-M8x35-SB-C33
|
30
|
M8
|
16
|
6.1
|
35
|
18
|
6
|
2.5
|
13
|
Material
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, RAL 9005 (C9) black colour or RAL 7040 (C33) grey colour.
Features and applications
The DT.464-SB knobs have the same dimensions as the DIN 464 steel knobs.
In conjunction with GN 631 thrust pads can be used to make different locking systems.
- Anti-rust.
- Resistance to chemical agents.
- Can also be used in outdoor conditions with excellent durability.
- High mechanical resistance.
- Lightweight: five times lighter than the steel equivalent.
The knob has been tested up to 100000 tightening cycles and the values of the torque were unchanged.
