Technical datasheet
DIN 9861Poinçons de coupe

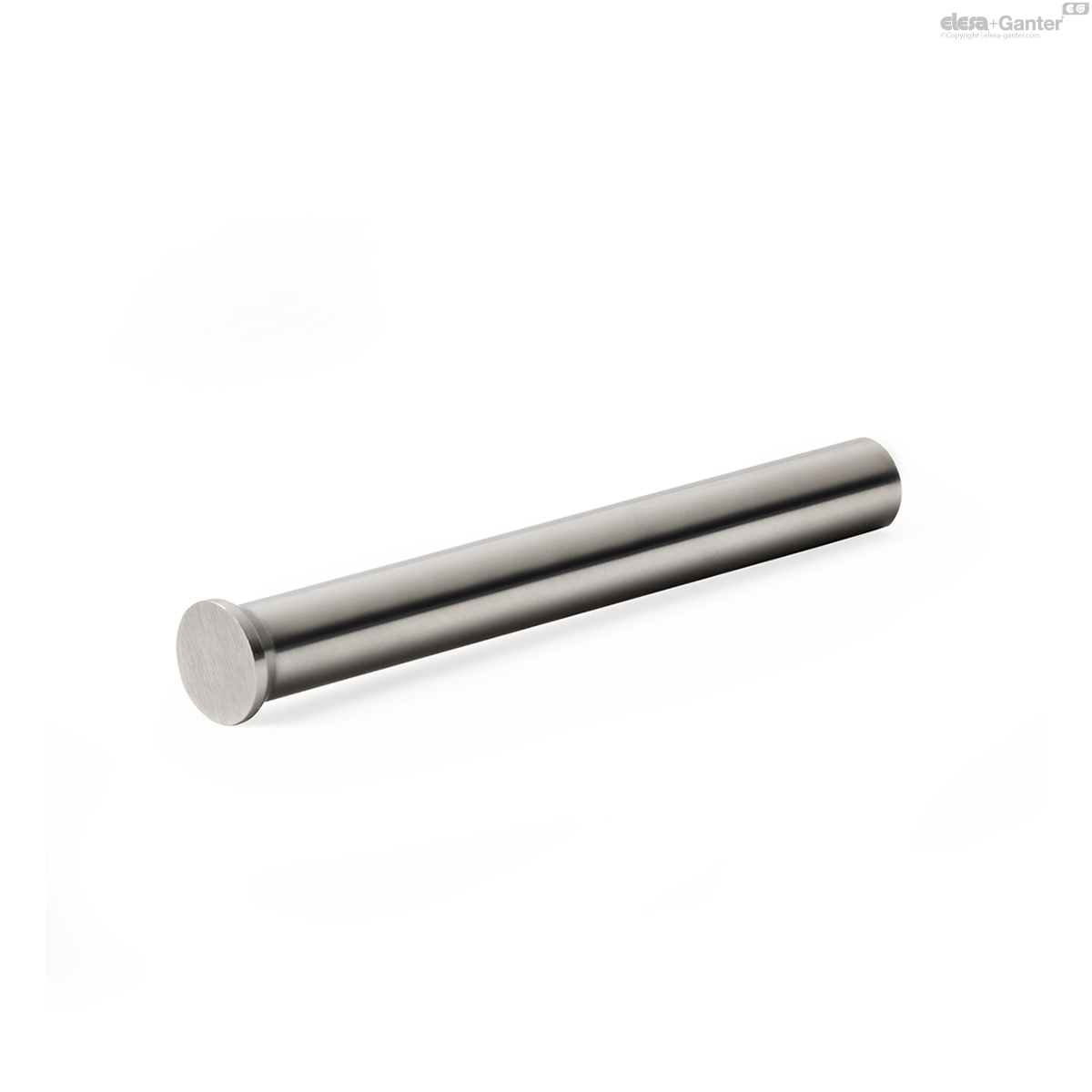

Poinçons de coupe
Acier HSS
DIN 9861
|

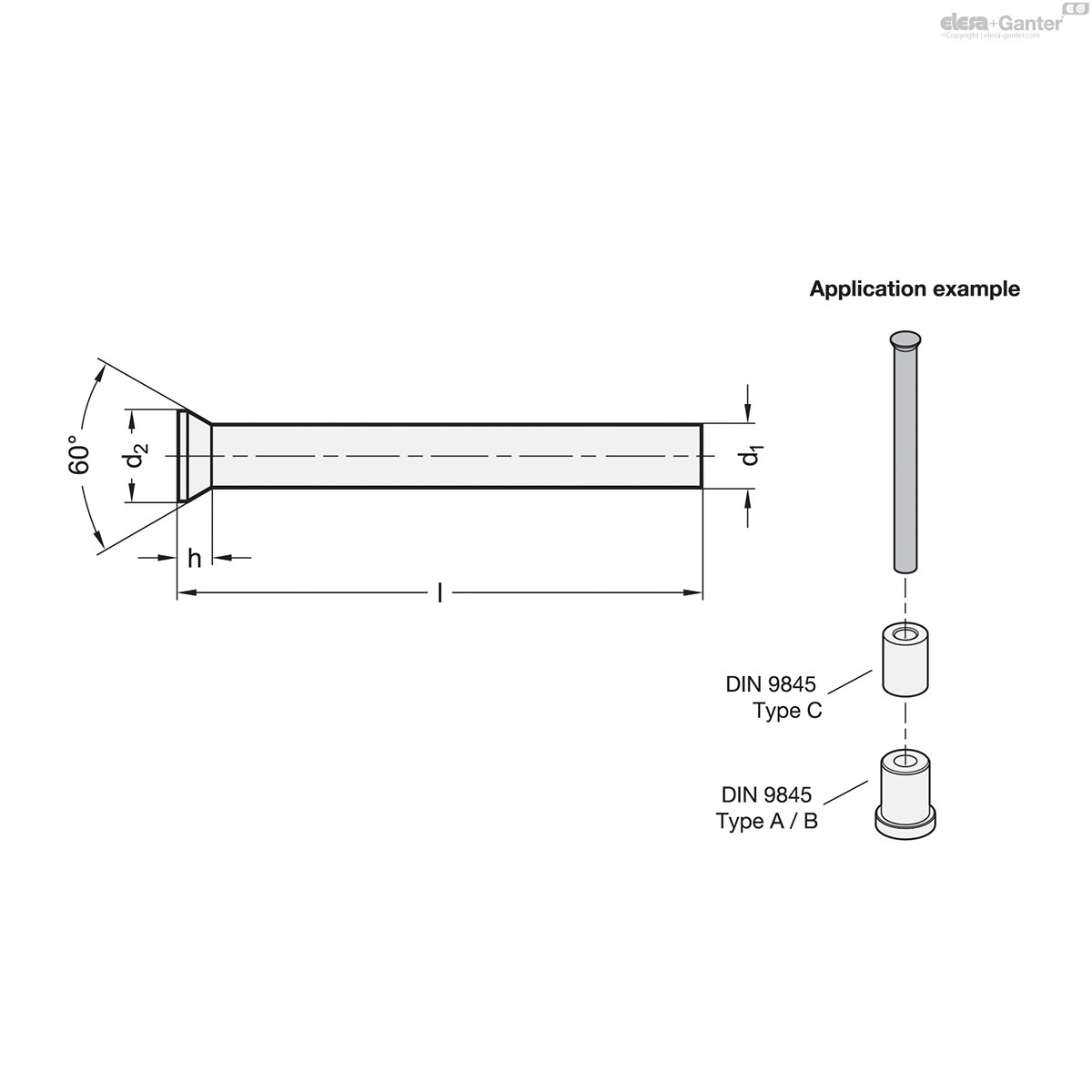

Code
|
d1 h6
|
Length l +0.5
|
d2 ±0.2
|
h +0.2
|
|
|
|---|---|---|---|---|---|---|
|
2
|
71
|
3
|
1.37
|
2
| ||
|
2
|
80
|
3
|
1.37
|
2
| ||
|
3
|
71
|
4.5
|
1.8
|
4
| ||
|
3
|
80
|
4.5
|
1.8
|
4
| ||
|
4
|
71
|
5.5
|
1.8
|
7
| ||
|
4
|
80
|
5.5
|
1.8
|
7
| ||
|
5
|
71
|
6.5
|
1.8
|
12
| ||
|
5
|
80
|
6.5
|
1.8
|
12
| ||
|
6
|
71
|
8
|
3.23
|
16
| ||
|
6
|
80
|
8
|
3.23
|
18
| ||
|
8
|
71
|
10
|
2.73
|
28
| ||
|
8
|
80
|
10
|
2.73
|
32
| ||
|
10
|
71
|
12
|
2.73
|
44
| ||
|
10
|
80
|
12
|
2.73
|
49
| ||
|
12
|
71
|
14
|
2.73
|
63
| ||
|
12
|
80
|
14
|
2.73
|
71
| ||
|
16
|
71
|
18
|
3.23
|
112
| ||
|
16
|
80
|
18
|
3.23
|
126
|
Type
Type
- Type D: With conical head
Steel HSS
Steel HSS
- Shaft hardened (HRC 62 +2)
- Head hardened (HRC 50 +5)
Cutting punches DIN 9861 are used, for example, in combination with cutting bushings DIN 9845 in punching tools. Depending on the application, however, they can also be used as positioning, guide, ejector or embossing pins and can be machined accordingly.
Cutting punches DIN 9861 are characterized by tight shape and position tolerances, a finely machined surface and high wear resistance.
- DIN 9845 Cutting Bushings / Guide Bushings
- Other dimensions
